Network Standard

IEEE 802.11a, IEEE 802.11b

IEEE 802.11g, IEEE 802.11n

IEEE 802.11ac, IEEE 802.11ax

IPv4, IPv6

Product Segment

AX6000 ultimate AX performance: 1148+4804 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbp

Antenna

External antenna x 6

Transmit/Receive

2.4 GHz 4 x 4

5 GHz 4 x 4

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash

512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz

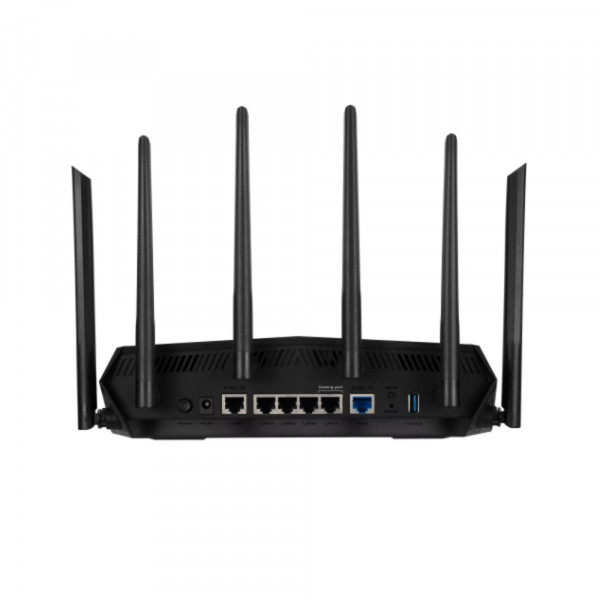

Ports

RJ45 for 2.5 Gigabits BaseT for WAN x 1,
RJ45 for 2.5 Gigabits BaseT for LAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,

Button

WPS Button, Reset Button, Power Button

LED Indicator

Power x 1
2.4G x 1
5G x 1
LAN x 4
2.5G WAN x 1
2.5G LAN x 1

Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2.5 A current

Package content

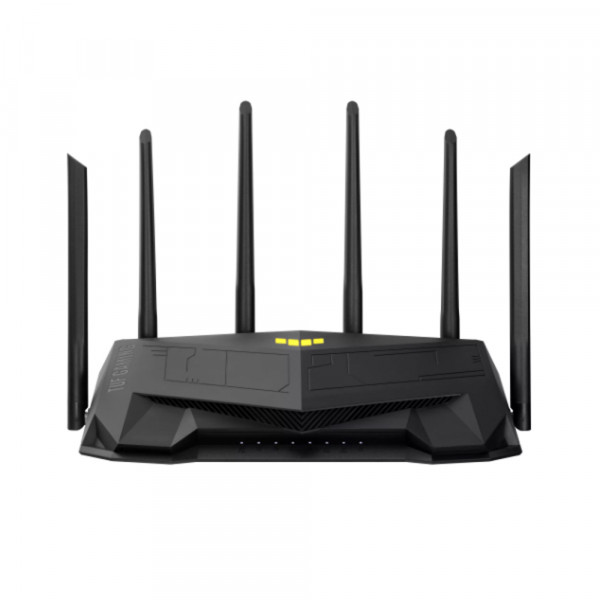

TUF Gaming AX6000 Dual Band WiFi 6 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

696g

AiMesh

AiMesh
Primary AiMesh router
AiMesh node

Router APP

ASUS Router APP

Game

Game Boost / Acceleration

Alexa

Support Alexa skill

AiProtection

AiProtection Pro
AiProtection

Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control

Parental Control
Parental Control Customized Internet schedule

Traffic Control

Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history

Wireless

IPv6
Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Safe browsing
DNS-over-TLS

LAN

DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64

VPN

VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Administration

Operating mode : Wireless router mode, Access point mode, Media bridge mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
