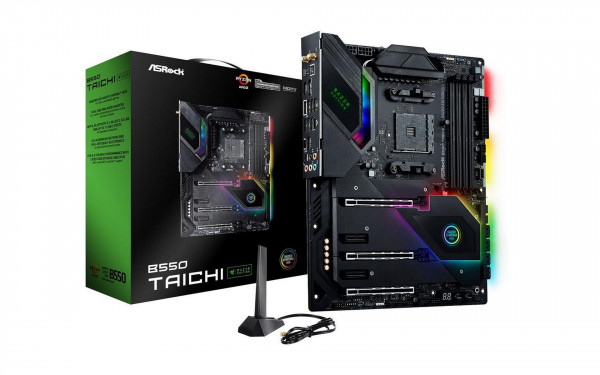

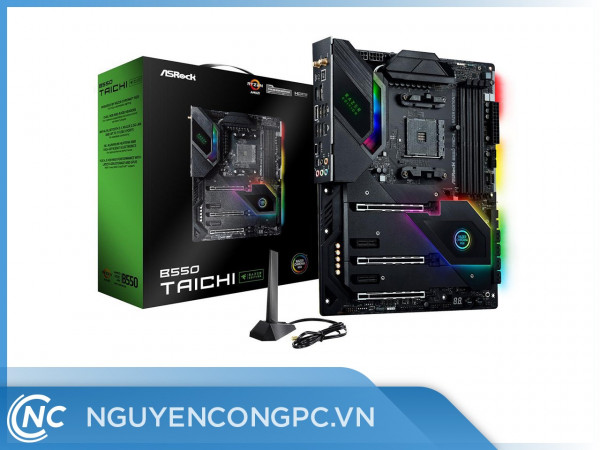

Mainboard ASRock B550 Taichi Razer Edition

Name: Mainboard ASRock B550 Taichi Razer Edition
Brand: Asrock
SKU: NguyenCong
Availability: InStock
Rating: 9 (7 reviews)

Mã SP: 0

Đánh giá: 7

Bình luận: 0

Bảo hành: 36 Tháng

Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

Liên hệ

Yên tâm mua hàng

Cam kết giá tốt nhất thị trường.

Sản phẩm mới 100%.

Lỗi 1 đổi 1 ngay lập tức.

Hỗ trợ trả góp - Thủ tục nhanh gọn.

Sản phẩm tương tự

Giới thiệu Mainboard ASRock B550 Taichi Razer Edition

Mainboard ASRock B550 Taichi Razer Edition nổi bật với hiệu suất OC đáng kinh ngạc và thông số kỹ thuật cao cấp, là trung tâm điều khiển tối ưu cho mọi thứ Chroma RGB, có khả năng tương thích toàn cầu với hàng nghìn thành phần ARGB trực tiếp vào hệ sinh thái của Razer.

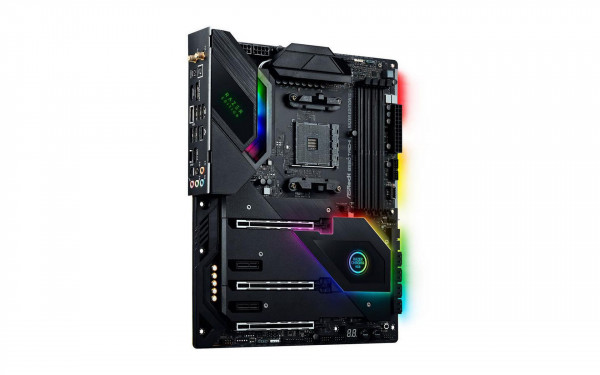

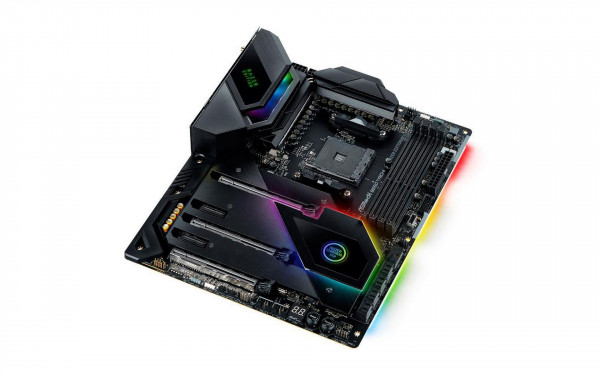

Mainboard ASRock B550 Taichi Razer Edition

Razer Chroma

Razer Chroma
Razer Synapse 3 cho phép bạn tùy chỉnh ánh sáng trên bo mạch chủ ASRock B550 Taichi Razer Edition và các thiết bị RGB có địa chỉ (ARGB) khác được kết nối với các tiêu đề của bo mạch chủ. Để thiết lập, hãy làm theo các bước sau:

1. Cắm thiết bị hoặc dải đèn LED ARGB của bạn vào bất kỳ đầu cắm 3 chân 5V ARGB nào trên bo mạch chủ.
2. Tải xuống Razer Synapse 3 từ razer.com/synapse, sau đó cài đặt và đăng nhập.
3. Sử dụng Razer Synapse 3 để truy cập các tùy chọn tùy chỉnh ánh sáng chuyên sâu, đồng thời tích hợp các trò chơi và ứng dụng trên các thiết bị hỗ trợ ARGB và Razer Chroma của bạn để có trải nghiệm thực sự đắm chìm.

Sức mạnh tối thượng

Ultimate POWER

Thiết kế 16 pha nguồn có khả năng cung cấp điện hoàn toàn trơn tru cho CPU. Nó cung cấp khả năng ép xung chưa từng có và hiệu suất nâng cao cho các game thủ cao cấp.
Cuộn cảm điện 60A cao cấp của ASRock làm cho dòng điện bão hòa tốt hơn gấp ba lần, cung cấp điện áp Vcore nâng cao cho bo mạch chủ.
Dr.MOS là giải pháp tầng công suất tích hợp được tối ưu hóa cho các ứng dụng điện áp hạ áp đồng bộ, mang lại kết quả nhiệt được cải thiện và hiệu suất vượt trội.
Các tụ điện đen 12K Nichicon 12K Black Caps Supreme có tuổi thọ ít nhất 12.000 giờ, có tuổi thọ cao hơn 20%, đồng thời cung cấp độ ổn định và độ tin cậy cao hơn.
PCB đồng 2oz Chỉ sử dụng các vật liệu đồng được lựa chọn cẩn thận cho các lớp PCB, PCB đồng 2oz mang lại nhiệt độ thấp hơn và hiệu quả năng lượng cao hơn để ép xung.
Đầu nối nguồn mật độ cao Giảm 23% tổn thất điện năng và giảm 22 độ C nhiệt độ của đầu nối.

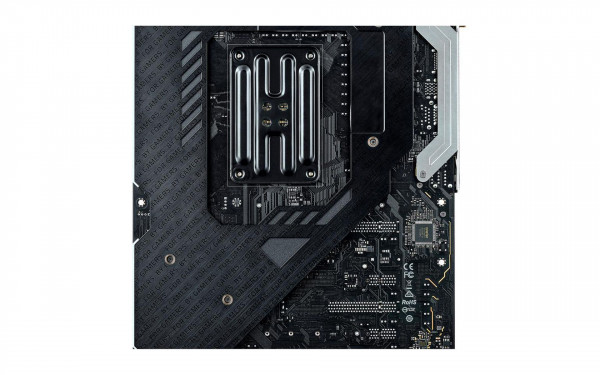

Backplate bằng kim loại

ASRock B550 Taichi Razer Edition Backplate bằng kim loại

Tăng độ chắc chắn cho bo mạch chủ ASRock B550 Taichi Razer Edition để ngăn ngừa uốn cong do tản nhiệt hoặc card đồ họa to nặng, đem lại luồng khí tốt hơn và tăng cường độ ổn định.

PCIe 4.0 cho mọi người

Chipset AMD B550 làm cho PCIe® khả thi cho bất kỳ ai muốn hiệu suất, băng thông và tốc độ cao hơn. Bộ tạo xung nhịp bên ngoài PCIe 4.0 cung cấp hiệu suất ép xung PCIe 4.0 tốt hơn.

Killer Networking

Killer Networking
Mainboard ASRock B550 Taichi Razer Edition được trang bị Killer Ethernet E3100 và Killer Wi-Fi 6 AX1650, được thiết kế đặc biệt cho các game thủ cạnh tranh và người dùng yêu thích hiệu suất, ưu tiên các gói thời gian thực hơn các gói khác và mang đến trải nghiệm giải trí trực tuyến không bị gián đoạn.

Nahimic Audio

Âm thanh Nahimic
Cho dù bạn đang sử dụng tai nghe hay loa ngoài, qua USB, Wi-Fi, đầu ra analog hay thậm chí là HDMI, Nahimic Audio đều mang đến cho bạn trải nghiệm nghe hấp dẫn nhất, sống động và giàu chi tiết.

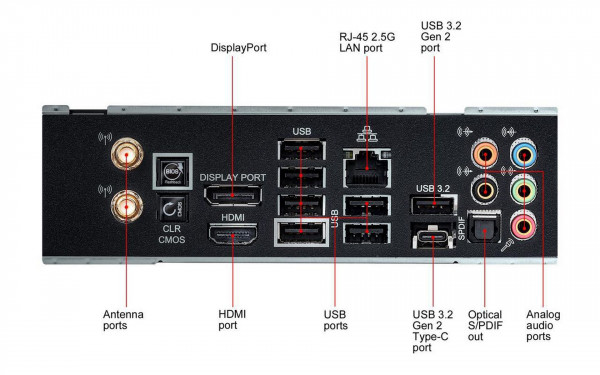

Mainboard ASRock B550 Taichi Razer Edition IO

Xem tất cả

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

0 đánh giá

Bạn đánh giá sao sản phẩm này

Đánh giá ngay

Hỏi và đáp

Gửi Gửi

Đính kèm ảnh

Thông số kỹ thuật

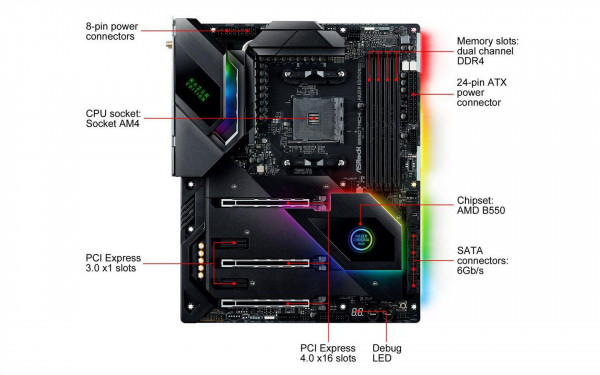

Mainboard ASRock B550 Taichi Razer Edition
Sản phẩm	Mainboard - Bo mạch chủ
Tên Hãng	Asrock
Model	B550 Taichi Razer Edition
Tính năng độc đáo	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Killer 2.5G LAN Killer 802.11ax WiFi Killer DoubleShot™ Pro ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Hỗ trợ CPU (Bộ vi xử lý)	- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* - Digi Power design - 16 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset	- AMD X570
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment
Hình Ảnh	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft^® PlayReady Actual support may vary by CPU *The Max shared memory 16GB requires 32GB system memory installed.
Âm Thanh	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - 1 x Killer E3100X (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s) - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless	- Killer AX1650x 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports Killer WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.1 + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro
Khe cắm mở rộng	AMD Ryzen series CPUs (Vermeer) - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))* AMD Ryzen series CPUs (Matisse) - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))* AMD Ryzen series APUs (Renoir) - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5))* - 2 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *If PCIE2 or PCIE4 is occupied, PCIE5 will downgrade to x2 mode. Supports NVMe SSD as boot disks
Ổ cứng hỗ trợ	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Cổng kết nối (Bên trong)	- 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Clear CMOS Button Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
Cổng kết nối (Phía Sau)	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_1_2 ports. ACPI wake-up function is not supported on USB3_1_2 ports.
Phần mềm và UEFI	Software - ASRock Motherboard Utility (A-Tuning)* - ASRock Killer LAN Software* - Razer Synapse 3 UEFI** - ASRock Full HD UEFI - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop. *Razer Synapse 3

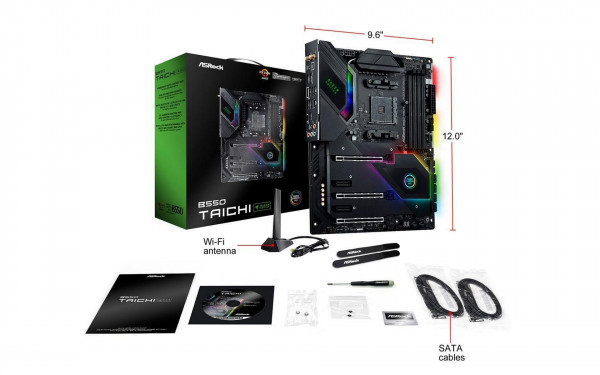

Phụ kiện	- Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 2 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V
Kích cỡ	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Chứng nhận	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
