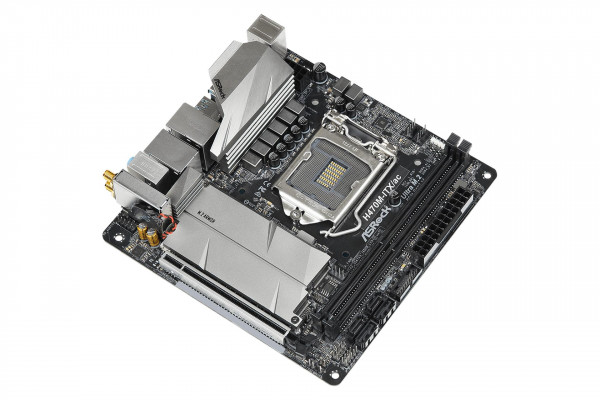

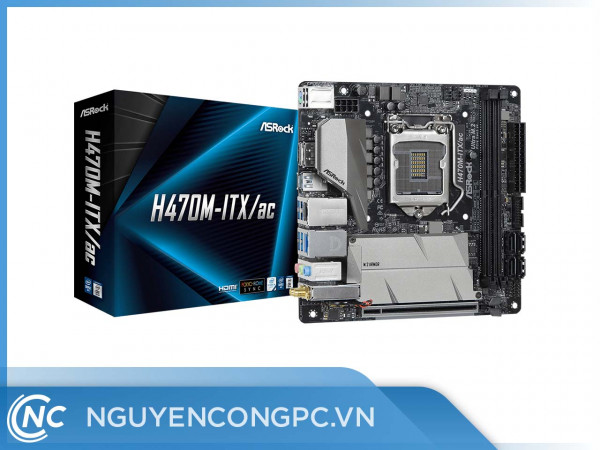

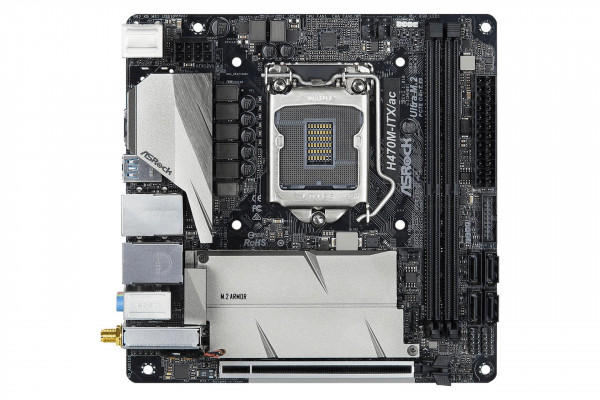

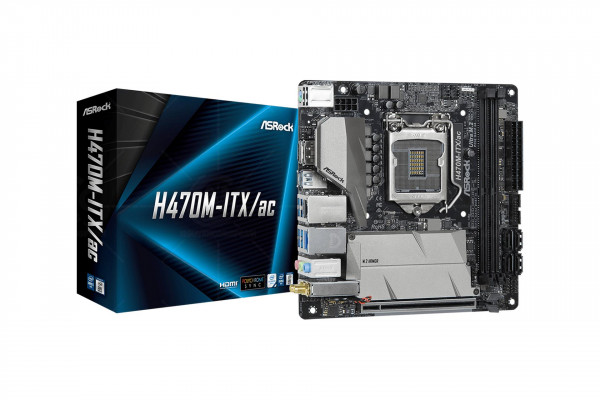

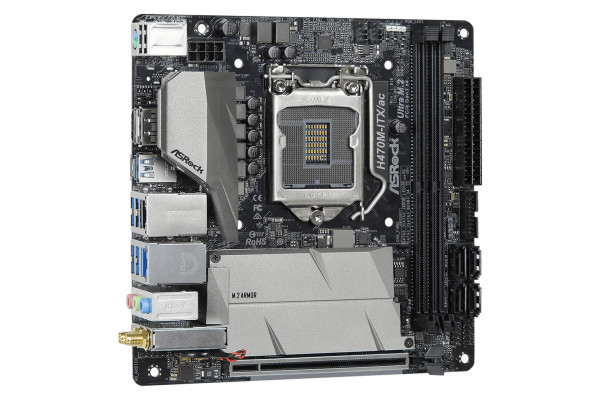

Mainboard Asrock H470M-ITX/ac

3.490.000 đ

Liên hệ 36 Tháng Gọi điện thoại đặt mua: 0971113333
  • Hỗ trợ tư vấn lắp đặt trong nội thành Hà Nội.
  • Hỗ trợ mua hàng trả góp.
  • Hỗ trợ cài đặt các phần mềm đồ họa.
  • Được tham gia các chương trình giảm giá sốc.
Đánh giá (5 lượt)

Giới thiệu sản phẩm

Mainboard Asrock H470M-ITX/ac

Hỗ trợ bộ xử lý Intel® Core™ thế hệ thứ 10 (LGA1200)
Hỗ trợ 64GB DDR4 2933 MHz
1 PCIe 3.0 x16
Tùy chọn đầu ra đồ họa: HDMI, DisplayPort
Âm thanh 7.1 CH HD (Bộ giải mã âm thanh Realtek ALC1200), Âm thanh Nahimic
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
4 USB 3.2 Gen2 Loại A (Phía sau)
4 USB 3.2 Gen1 (Loại sau A + C, 2 Mặt trước)
Dragon 2.5 Gigabit LAN, Intel® Gigabit LAN
Intel® 802.11ac WiFi + BT 4.2

Mainboard Asrock H470M-ITX/ac

Thông số kỹ thuật

Sản phẩm Mainboard - Bo mạch chủ
Tên Hãng Asrock
Model H470M-ITX/ac
Tính năng độc đáo
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s)
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Sapphire Black PCB
- High Density Glass Fabric PCB 2.5G LAN Intel® 802.11ac WiFi
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU - Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 8 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® H470
RAM hỗ trợ
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory *
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

*Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.05V, VCCIO, VCCSA Voltage Multi-adjustment
Hình Ảnh
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows® OS.
Âm Thanh - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
LAN
- 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless - Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Khe cắm mở rộng
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

*Supports NVMe SSD as boot disks
Ổ cứng hỗ trợ
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

*Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Cổng kết nối (Bên trong)
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x Chassis Fan Connector (4-pin)****
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

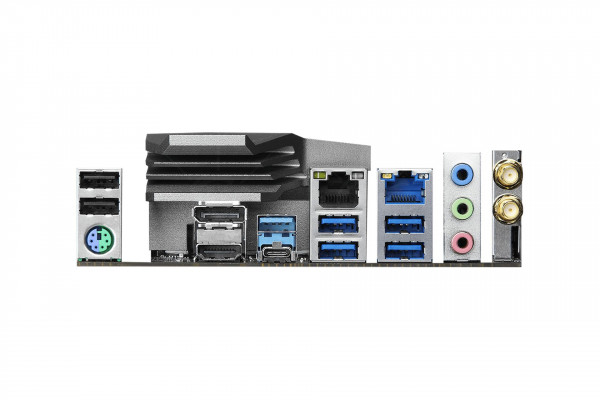

Cổng kết nối (Phía Sau) - 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Phần mềm và UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Kích cỡ
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
Chứng nhận - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
