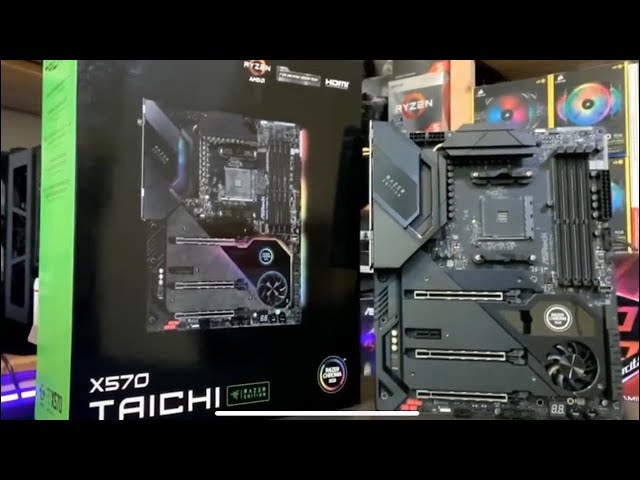

Mainboard ASRock X570 Taichi Razer Edition

Name: Mainboard ASRock X570 Taichi Razer Edition
Brand: Asrock
SKU: NguyenCong
Availability: InStock
Rating: 7 (5 reviews)

Mã SP: 0

Đánh giá: 0

Bình luận: 0

Bảo hành: 36 Tháng

Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

Liên hệ

Yên tâm mua hàng

Cam kết giá tốt nhất thị trường.

Sản phẩm mới 100%.

Lỗi 1 đổi 1 ngay lập tức.

Hỗ trợ trả góp - Thủ tục nhanh gọn.

Khách hàng Anh Kiên (036 556 xxxx)

Đã mua hàng 2 giờ trước

Khách hàng Lê Quân (034 778 xxxx)

Đã mua hàng 1 giờ trước

Khách hàng Chị Vân (097 478 xxxx)

Đã mua hàng 30 phút trước

Khách hàng Anh Việt (035 639 xxxx)

Đã mua hàng 25 phút trước

Khách hàng Chị Tuyết (096 859 xxxx)

Đã mua hàng 20 phút trước

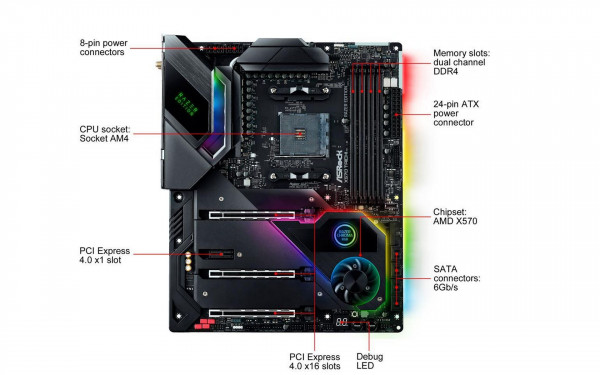

Giới thiệu Mainboard ASRock X570 Taichi Razer Edition

Mainboard ASRock X570 Taichi Razer Edition là bo mạch chủ đầu tiên trên thế giới được tích hợp nguyên bản với ánh sáng Razer Chroma RGB, cho khả năng tương thích toàn cầu với hàng nghìn thành phần ARGB trực tiếp vào hệ sinh thái của Razer.

ASRock X570 Taichi Razer Edition

Razer Chroma

Razer Synapse 3 cho phép bạn tùy chỉnh ánh sáng trên bo mạch chủ ASRock X570 Taichi Razer Edition và các thiết bị RGB có địa chỉ (ARGB) khác được kết nối với các tiêu đề của bo mạch chủ. Để thiết lập, hãy làm theo các bước sau:

1. Cắm thiết bị hoặc dải đèn LED ARGB của bạn vào bất kỳ đầu cắm 3 chân 5V ARGB nào trên bo mạch chủ.
2. Tải xuống Razer Synapse 3 từ razer.com/synapse, sau đó cài đặt và đăng nhập.
3. Sử dụng Razer Synapse 3 để truy cập các tùy chọn tùy chỉnh ánh sáng chuyên sâu, đồng thời tích hợp các trò chơi và ứng dụng trên các thiết bị hỗ trợ ARGB và Razer Chroma của bạn để có trải nghiệm thực sự đắm chìm.

Killer Networking

Mainboard ASRock X570 Taichi Razer Edition là một sản phẩm được sinh ra từ niềm đam mê tạo ra những sản phẩm tuyệt vời. Nó giúp các streamer từ khắp nơi trên thế giới hiện thực hóa ý tưởng của họ thành những dự án tuyệt vời.

Nahimic Audio

Âm thanh Nahimic
Cho dù bạn đang sử dụng tai nghe hay loa ngoài, qua USB, Wi-Fi, đầu ra analog hay thậm chí là HDMI, Nahimic Audio đều mang đến cho bạn trải nghiệm nghe hấp dẫn nhất, sống động và giàu chi tiết.

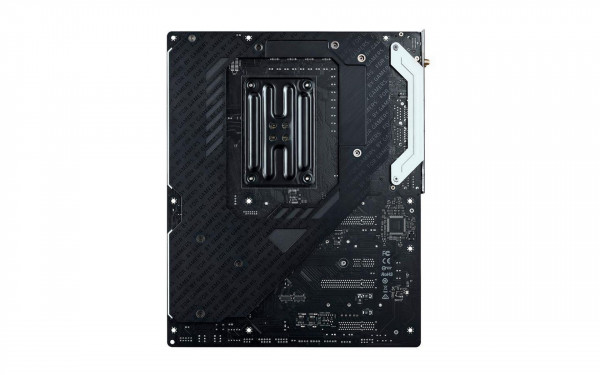

Backplate bằng kim loại

Mainboard ASRock X570 Taichi Razer Edition Back

Tăng độ chắc chắn cho bo mạch chủ ASRock X570 Taichi Razer Edition để ngăn ngừa uốn cong do tản nhiệt hoặc card đồ họa to nặng, đem lại luồng khí tốt hơn và tăng cường độ ổn định.

Sức mạnh tối thượng

Thiết kế 16 pha nguồn có khả năng cung cấp điện hoàn toàn trơn tru cho CPU. Nó cung cấp khả năng ép xung chưa từng có và hiệu suất nâng cao cho các game thủ cao cấp.
Cuộn cảm điện 60A cao cấp của ASRock làm cho dòng điện bão hòa tốt hơn gấp ba lần, cung cấp điện áp Vcore nâng cao cho bo mạch chủ.
Dr.MOS là giải pháp tầng công suất tích hợp được tối ưu hóa cho các ứng dụng điện áp hạ áp đồng bộ, mang lại kết quả nhiệt được cải thiện và hiệu suất vượt trội.
Các tụ điện đen 12K Nichicon 12K Black Caps Supreme có tuổi thọ ít nhất 12.000 giờ, có tuổi thọ cao hơn 20%, đồng thời cung cấp độ ổn định và độ tin cậy cao hơn.
PCB đồng 2oz Chỉ sử dụng các vật liệu đồng được lựa chọn cẩn thận cho các lớp PCB, PCB đồng 2oz mang lại nhiệt độ thấp hơn và hiệu quả năng lượng cao hơn để ép xung.
Đầu nối nguồn mật độ cao Giảm 23% tổn thất điện năng và giảm 22 độ C nhiệt độ của đầu nối.

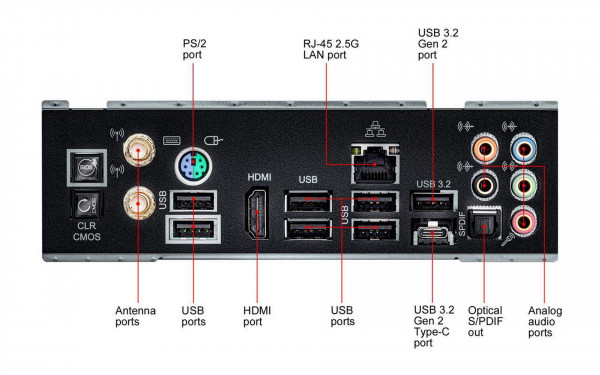

Mainboard ASRock X570 Taichi Razer Edition IO

Xem tất cả

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

0 đánh giá

Bạn đánh giá sao sản phẩm này

Đánh giá ngay

Xem thêm đánh giá

Hỏi và đáp

Gửi Gửi

Đính kèm ảnh

Thông số kỹ thuật

Mainboard ASRock X570 Taichi Razer Edition
Sản phẩm	Mainboard - Bo mạch chủ
Tên Hãng	Asrock
Model	X570 Taichi Razer Edition
Tính năng độc đáo	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Killer 2.5G LAN Killer 802.11ax WiFi Killer DoubleShot™ Pro ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Hỗ trợ CPU (Bộ vi xử lý)	- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors - Intersil Digital PWM - 16 Power Phase design
Chipset	- AMD X570
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Hình Ảnh	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port* - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft^® PlayReady Actual support may vary by CPU The Max shared memory 16GB requires 32GB system memory installed. **Picasso supports HDCP 2.2 with HDMI 2.0 Port
Âm Thanh	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - WIMA Audio Capacitors (For Front Outputs) - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s) - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless	- Killer AX1650x 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports Killer WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.1 + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro
Khe cắm mở rộng	AMD Ryzen series CPUs (Vermeer) - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series CPUs (Matisse) - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series APUs (Renoir) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series CPUs (Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series APUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))* AMD X570 Chipset - 1 x PCI Express 4.0 x16 Slot (x4 (PCIE4))* - 1 x PCI Express 4.0 x1 Slot - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA^® Quad SLI™ and SLI™* - Supports NVIDIA^® NVLink™ with dual NVIDIA^® GeForce RTX series graphics cards*** - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE4 only. Supports NVMe SSD as boot disks 3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge). ** NVIDIA^® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA^® if necessary. This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge).
Ổ cứng hỗ trợ	- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)* - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* *If M2_3 is occupied, PCIE4 slot will be disabled Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Cổng kết nối (Bên trong)	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Clear CMOS Button Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
Cổng kết nối (Phía Sau)	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB_12 ports. ACPI wake-up function is not supported on USB_12 ports.
Phần mềm và UEFI	Software - ASRock Motherboard Utility (A-Tuning)* - ASRock Killer LAN Software* - Razer Synapse 3 UEFI** - ASRock Full HD UEFI - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop. *Razer Synapse 3

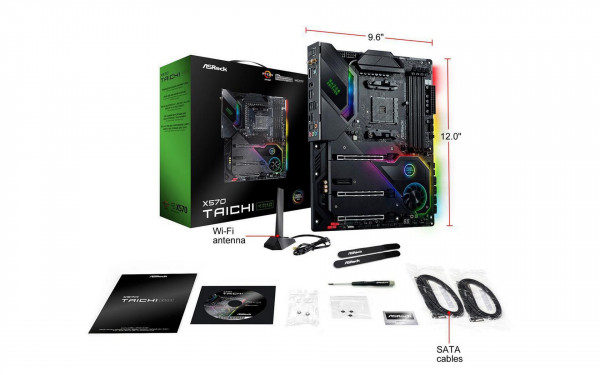

Phụ kiện	- Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
Kích cỡ	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Chứng nhận	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Mainboard ASRock X570 Taichi Razer Edition
Sản phẩm	Mainboard - Bo mạch chủ
Tên Hãng	Asrock
Model	X570 Taichi Razer Edition
Tính năng độc đáo	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Killer 2.5G LAN Killer 802.11ax WiFi Killer DoubleShot™ Pro ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Hỗ trợ CPU (Bộ vi xử lý)	- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors - Intersil Digital PWM - 16 Power Phase design
Chipset	- AMD X570
RAM hỗ trợ	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Hình Ảnh	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port* - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft^® PlayReady Actual support may vary by CPU The Max shared memory 16GB requires 32GB system memory installed. **Picasso supports HDCP 2.2 with HDMI 2.0 Port
Âm Thanh	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - WIMA Audio Capacitors (For Front Outputs) - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s) - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless	- Killer AX1650x 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports Killer WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.1 + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro
Khe cắm mở rộng	AMD Ryzen series CPUs (Vermeer) - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series CPUs (Matisse) - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series APUs (Renoir) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series CPUs (Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series APUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))* AMD X570 Chipset - 1 x PCI Express 4.0 x16 Slot (x4 (PCIE4))* - 1 x PCI Express 4.0 x1 Slot - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA^® Quad SLI™ and SLI™* - Supports NVIDIA^® NVLink™ with dual NVIDIA^® GeForce RTX series graphics cards*** - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE4 only. Supports NVMe SSD as boot disks 3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge). ** NVIDIA^® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA^® if necessary. This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge).
Ổ cứng hỗ trợ	- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)* - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* *If M2_3 is occupied, PCIE4 slot will be disabled Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Cổng kết nối (Bên trong)	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Clear CMOS Button Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
Cổng kết nối (Phía Sau)	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB_12 ports. ACPI wake-up function is not supported on USB_12 ports.
Phần mềm và UEFI	Software - ASRock Motherboard Utility (A-Tuning)* - ASRock Killer LAN Software* - Razer Synapse 3 UEFI** - ASRock Full HD UEFI - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop. *Razer Synapse 3
Phụ kiện	- Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
Kích cỡ	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Chứng nhận	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Xem đầy đủ thông số kỹ thuật
