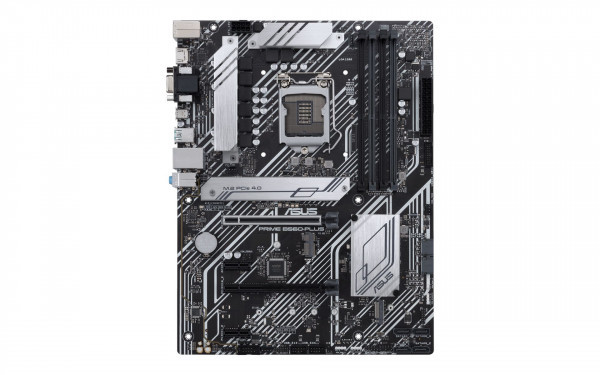

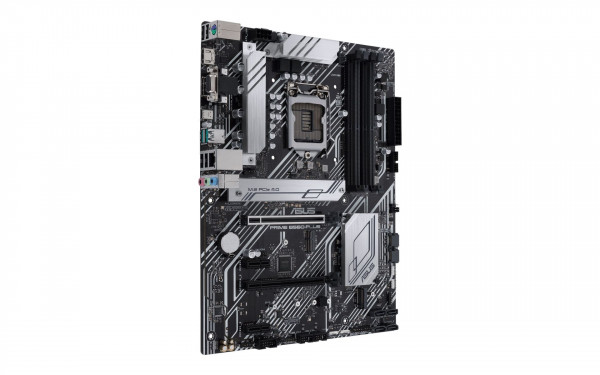

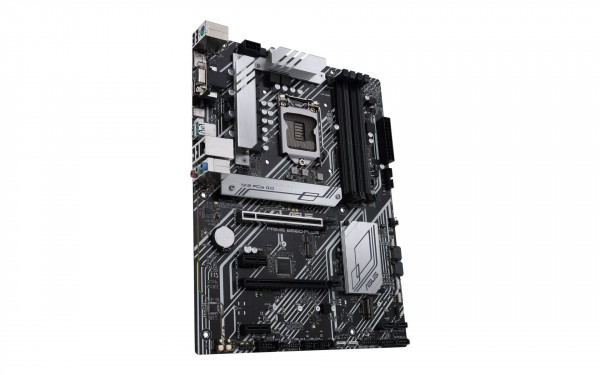

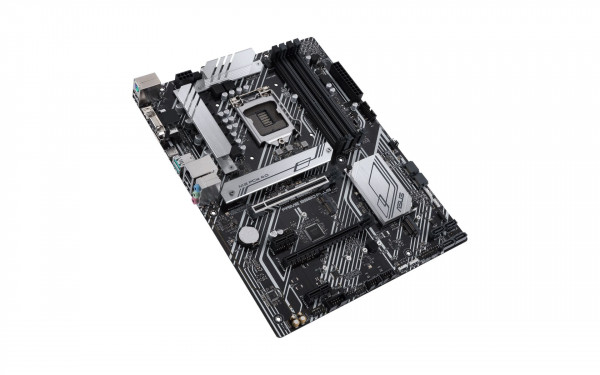

Mainboard ASUS PRIME B560-PLUS

Mainboard ASUS PRIME B560-PLUS

Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

4 x DIMM, Max. 128GB,DDR4 4600(OC) Non-ECC, Un-buffered memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS OptiMem

* 11th Gen Intel® Core™ processors support 2933/2800/2666/2400/2133 natively.
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

1 x DP1.2**
1 x HDMITM 1.4/2.0***
1 x D-Sub

*Graphics specifications may vary between CPU types.
** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
***Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel® 11th Core™ processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16

Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots
*Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 11th Gen Processors
- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode mode)
- 6 x SATA 6Gb/s ports

When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
When an Intel® SSD is connected to a CPU-attached slot, only pass-through Single Volume mode in Intel® Rapid Storage Technology will be available.

Rear USB (Total 7 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x USB Type-C®)
4 x USB 2.0 ports

Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek ALC897 7.1-Channel High Definition Audio CODEC*

- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

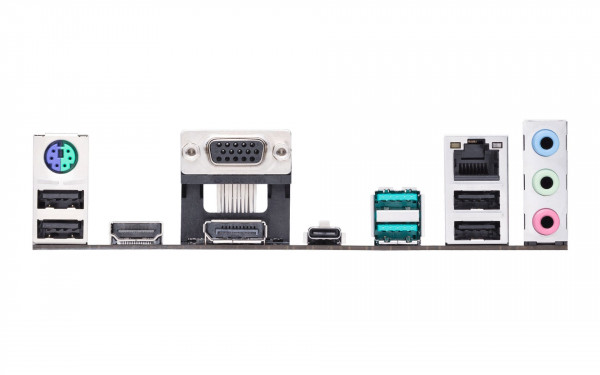

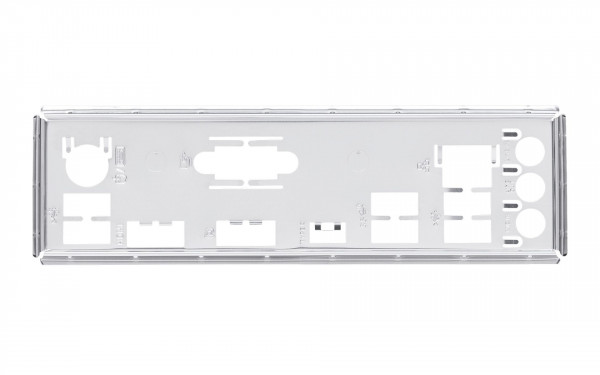

Cổng kết nối (I/O Phía sau)
