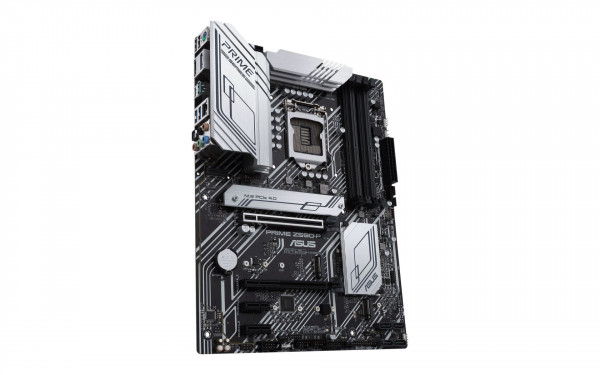

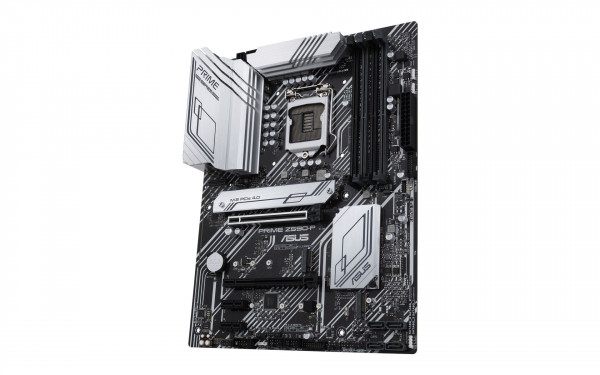

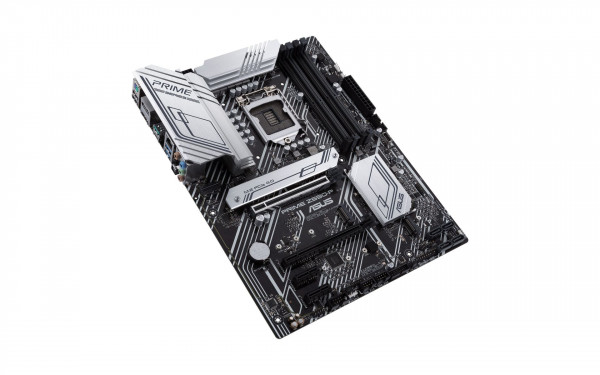

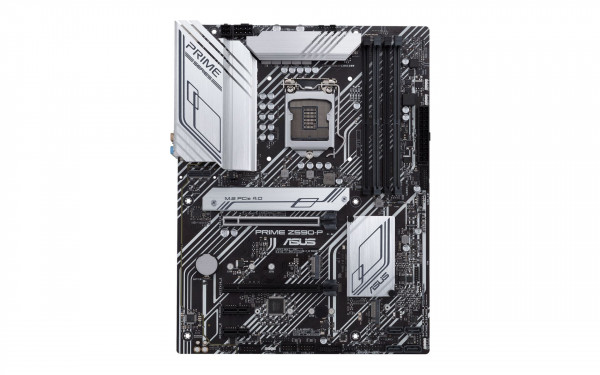

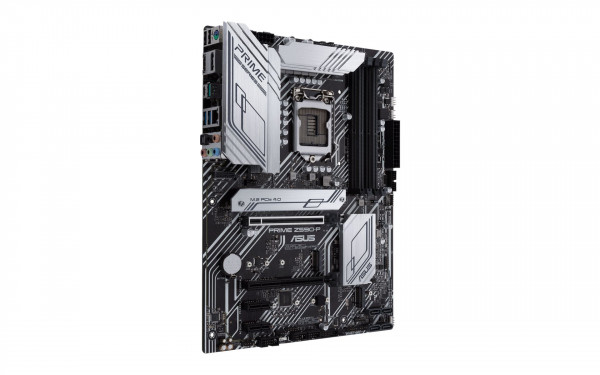

Giới thiệu Mainboard ASUS PRIME Z590-P

Mainboard ASUS PRIME Z590-P là bo mạch chủ với 11 tầng nguồn DrMOS, Ba khe cắm M.2 PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, mặt trước Hỗ trợ USB 3.2 Gen 1 Type-C, Thunderbolt 4

Mainboard ASUS PRIME Z590-P

Socket Intel® LGA 1200

Sẵn sàng cho bộ vi xử lý Intel® Core ™ thế hệ thứ 11 và thứ 10

Giải pháp năng lượng nâng cao

10 + 1 tầng nguồn DrMOS, PCB sáu lớp, đầu nối ProCool 8 chân, cuộn cảm hợp kim và tụ điện bền để cung cấp điện ổn định

Làm mát toàn diện

Mainboard ASUS PRIME Z590-P

Tản nhiệt VRM lớn, tản nhiệt M.2, tản nhiệt PCH, đầu cắm quạt lai và Fan Xpert 4

ASUS OptiMem II

Định tuyến cẩn thận các dấu vết và vias, cộng với tối ưu hóa lớp mặt đất để duy trì tính toàn vẹn của tín hiệu nhằm cải thiện khả năng ép xung bộ nhớ

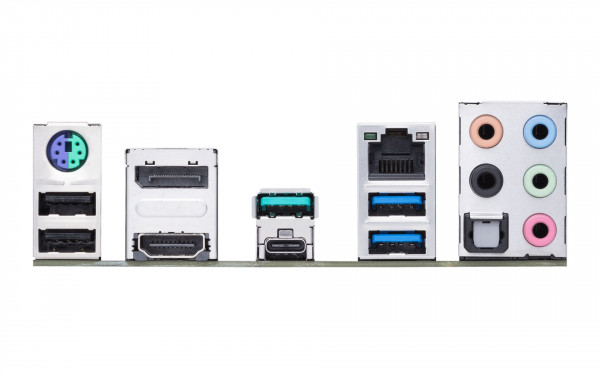

Kết nối thế hệ tiếp theo

Mainboard ASUS PRIME Z590-P IO

PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, bảng điều khiển phía trước USB 3.2 Gen 1 Type-C®, hỗ trợ đầu cắm Thunderbolt™ 4

Xem tất cả

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

0 đánh giá

Bạn đánh giá sao sản phẩm này

Đánh giá ngay

Xem thêm đánh giá

Hỏi và đáp

Gửi Gửi

Đính kèm ảnh

Thông số kỹ thuật

Mainboard ASUS PRIME Z590-P
Loại sản phẩm	Bo mạch chủ ASUS
CPU hỗ trợ	Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® Z590 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5133(OC) Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Hình ảnh	1 x DisplayPort 1.4** 1 x HDMI 1.4/2.0 * Graphics specifications may vary between CPU types. " For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. Please refer to www.intel.com for any update. " * For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors' or graphic cards' resolution.
Khe cắm mở rộng	Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function.
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
LAN	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
USB	Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Âm Thanh	Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers
Cổng kết nối (I/O Phía sau)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port
Cổng kết nối (I/O bên trong)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, PXE
Kích cỡ	ATX Form Factor 12 inch x 9.2 inch (30.5 cm x 23.4 cm)

Mainboard ASUS PRIME Z590-P
Loại sản phẩm	Bo mạch chủ ASUS
CPU hỗ trợ	Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® Z590 Chipset
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5133(OC) Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Hình ảnh	1 x DisplayPort 1.4** 1 x HDMI 1.4/2.0 * Graphics specifications may vary between CPU types. " For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. Please refer to www.intel.com for any update. " * For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors' or graphic cards' resolution.
Khe cắm mở rộng	Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes - Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function.
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
LAN	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
USB	Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Âm Thanh	Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers
Cổng kết nối (I/O Phía sau)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port
Cổng kết nối (I/O bên trong)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Khả năng quản lý	WOL by PME, PXE
Kích cỡ	ATX Form Factor 12 inch x 9.2 inch (30.5 cm x 23.4 cm)
