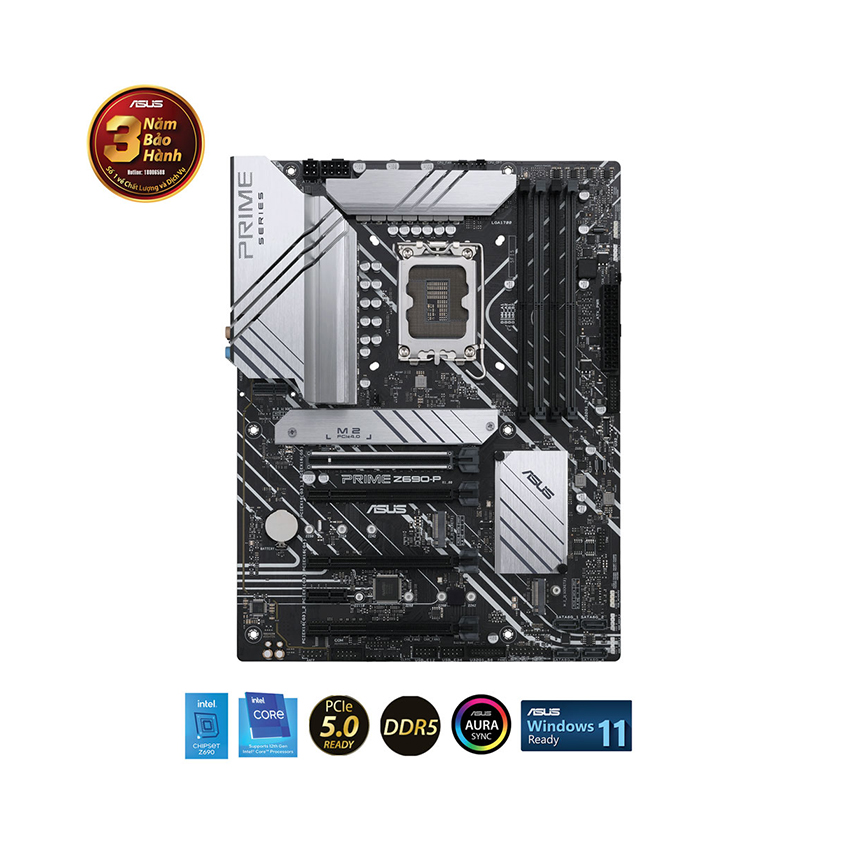

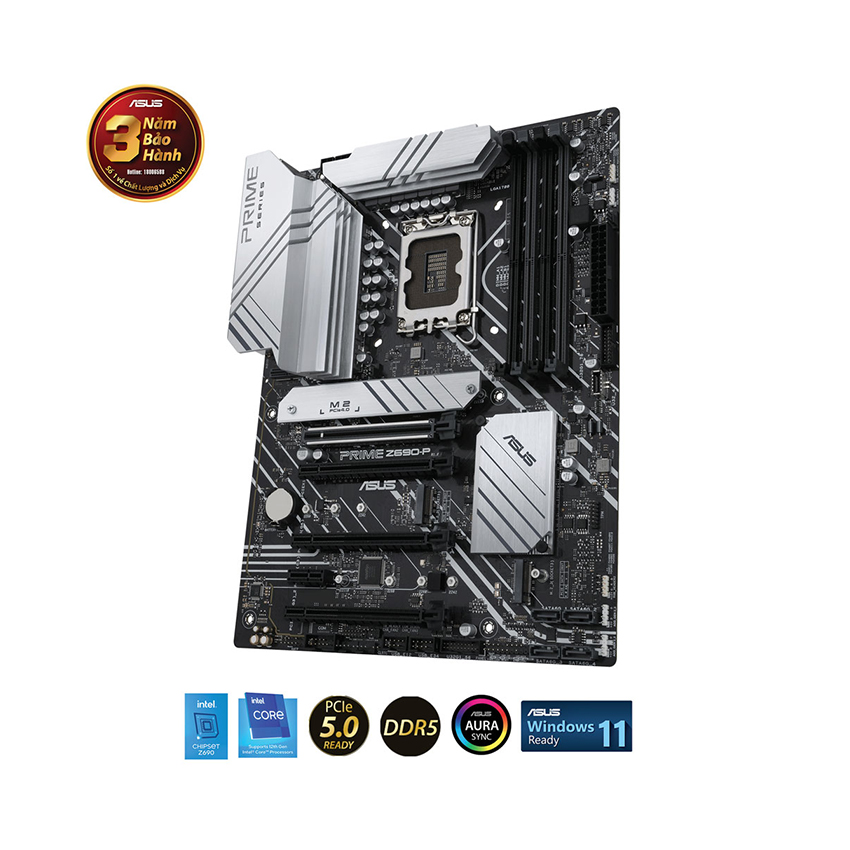

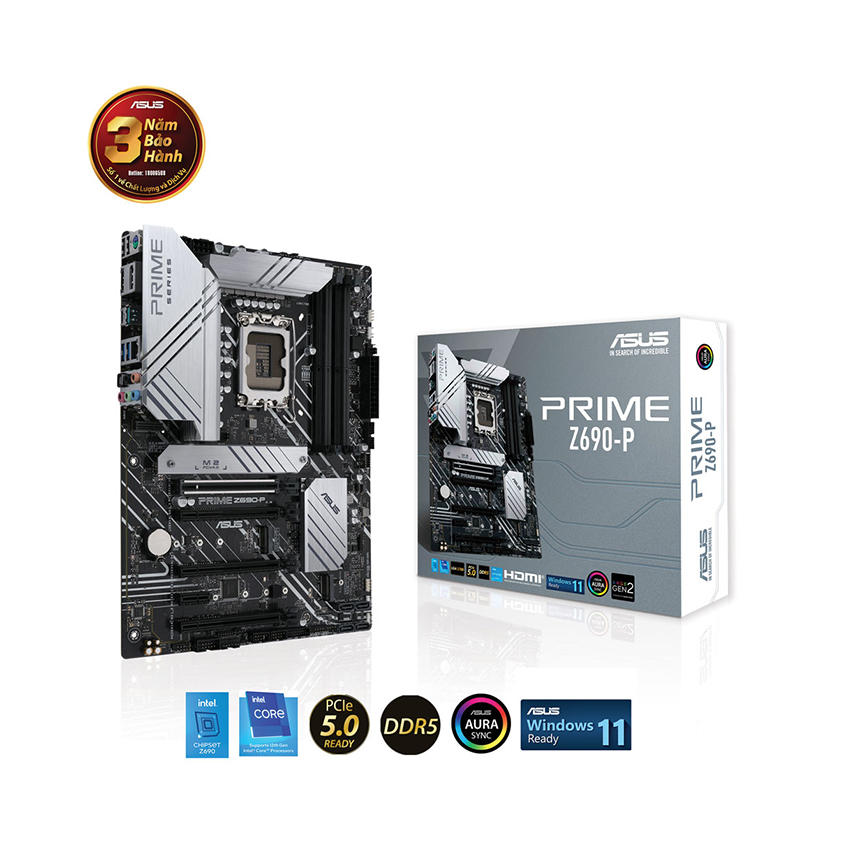

Mainboard ASUS PRIME Z690-P-CSM DDR5

Asus

PRIME Z690-P-CSM

ATX

LGA1700

Z690

4 x DIMM

DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory

128GB

Dual Channel

1 x PCIe 5.0/4.0/3.0 x16 slot

1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slot

4 x SATA 6Gb/s ports

3 x M.2_slot

RAID 0/1/5/10

Realtek 7.1 Surround Sound High Definition Audio CODEC

7.1

LANGuard

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x V-M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x PS/2 Keyboard/Mouse combo port

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5pin System Panel header

1 x Thunderbolt™ header

3 x Addressable Gen 2 headers

2 x AURA RGB headers

30.5cm x 23.4cm

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector
