Mainboard Asus ROG MAXIMUS Z690 FORMULA

Name: Mainboard Asus ROG MAXIMUS Z690 FORMULA
Brand: ASUS
SKU: SP180489
Availability: InStock
Rating: 10 (15 reviews)

Mã SP: SP180489

Đánh giá: 15

Bình luận: 0

Bảo hành: 36 tháng

Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

16.990.000đ

21.530.000₫

Tiết kiệm 4.540.000đ

Số lượng:

−

Thêm vào giỏ hàng

ĐẶT MUA NGAY Giao hàng tận nơi nhanh chóng TRẢ GÓP QUA HỒ SƠ Chỉ từ 2.665.000₫/ tháng TRẢ GÓP QUA THẺ Chỉ từ 1.332.500₫/ tháng

Yên tâm mua hàng

Cam kết giá tốt nhất thị trường.

Sản phẩm mới 100%.

Lỗi 1 đổi 1 ngay lập tức.

Hỗ trợ trả góp - Thủ tục nhanh gọn.

Sản phẩm tương tự

Giới thiệu Mainboard Asus ROG MAXIMUS Z690 FORMULA

Thiết kế

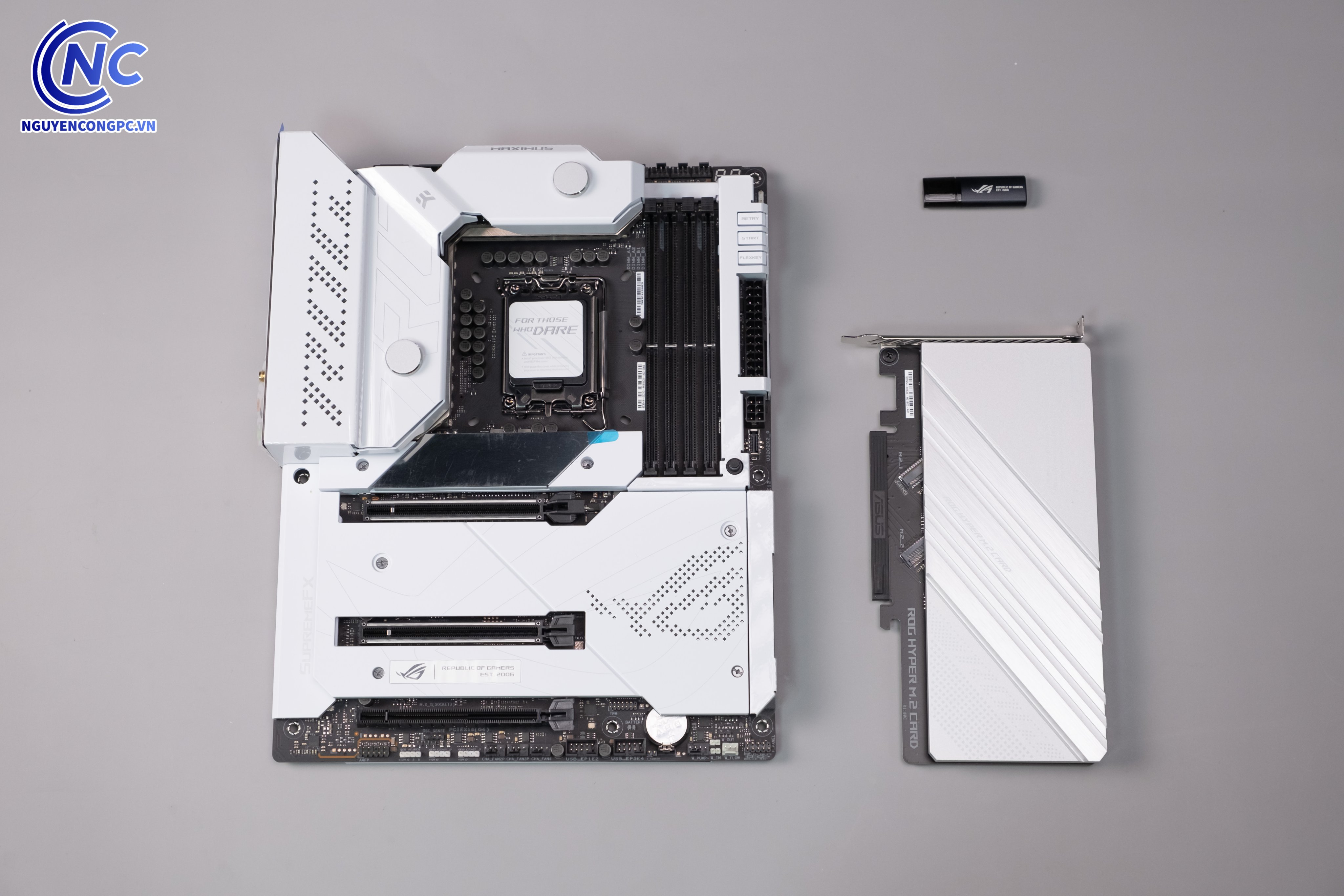

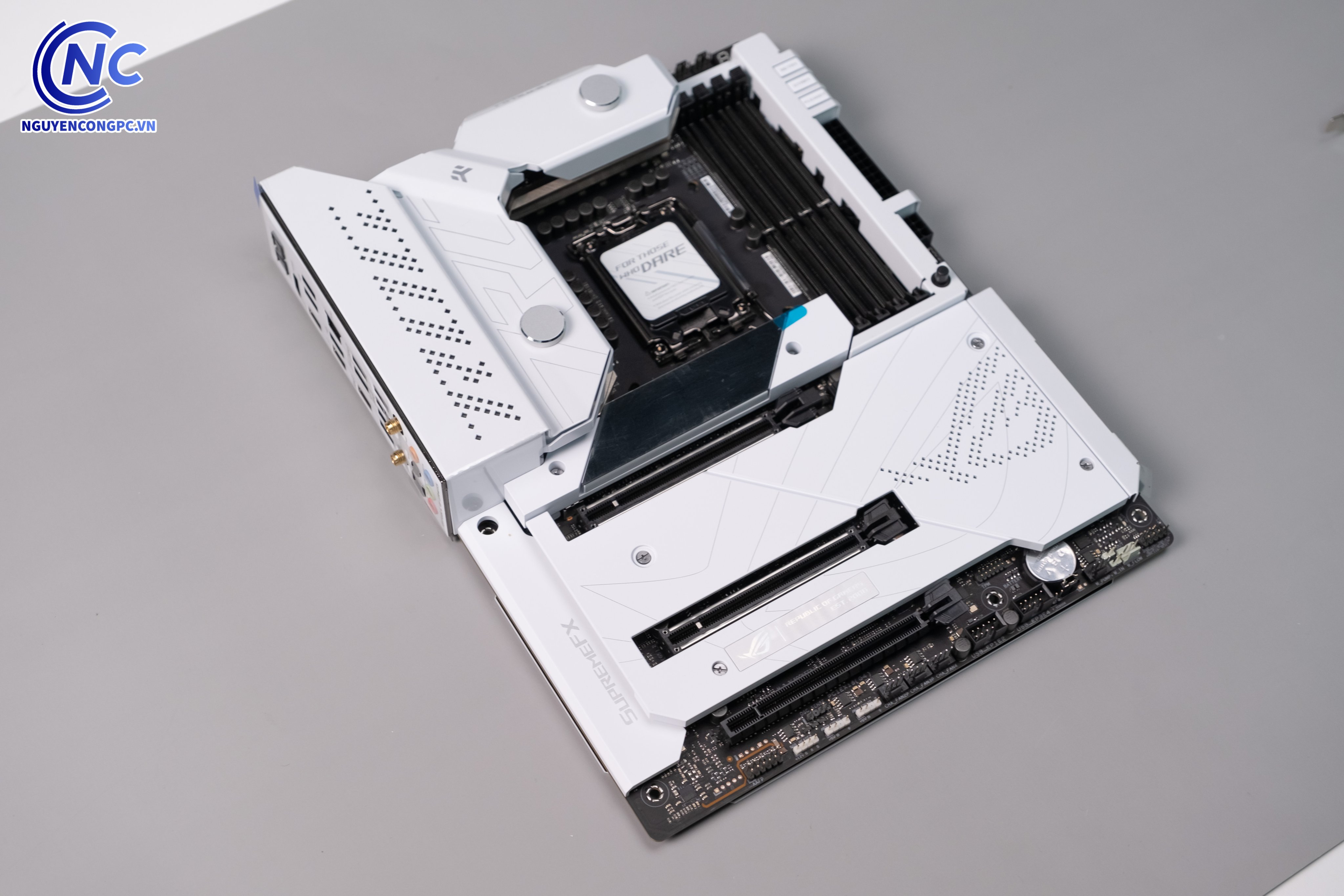

ASUS ROG MAXIMUS Z690 FORMULA sở hữu thiết kế trên nền tảng kích thước ATX với ngoại hình tone trắng chủ đạo cực kỳ cao cấp & tinh tế.

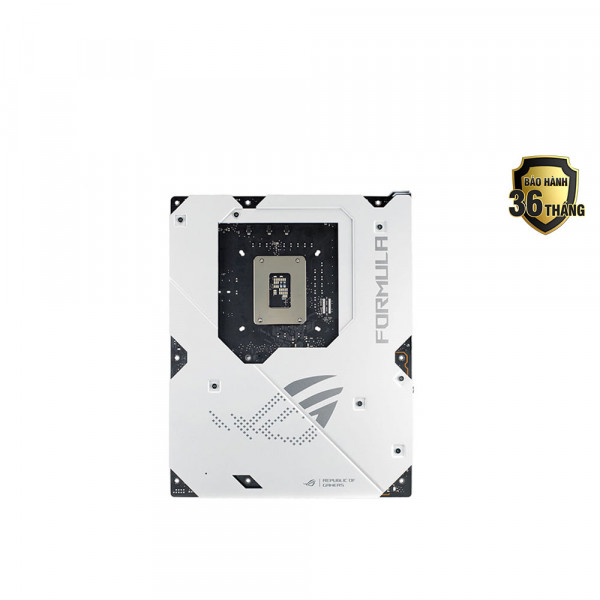

Ở mặt sau, Asus cũng trang bị thêm 1 lớp giáp bằng kim loại, bảo vệ toàn diện cho mainboard khỏi các tác động vật lý.

Phần PCB được cấu thành từ nhiều lớp với rất nhiều đồng (Cu) - giúp truyền dẫn tín hiệu và hỗ trợ khả năng tản nhiệt cho các linh kiện.

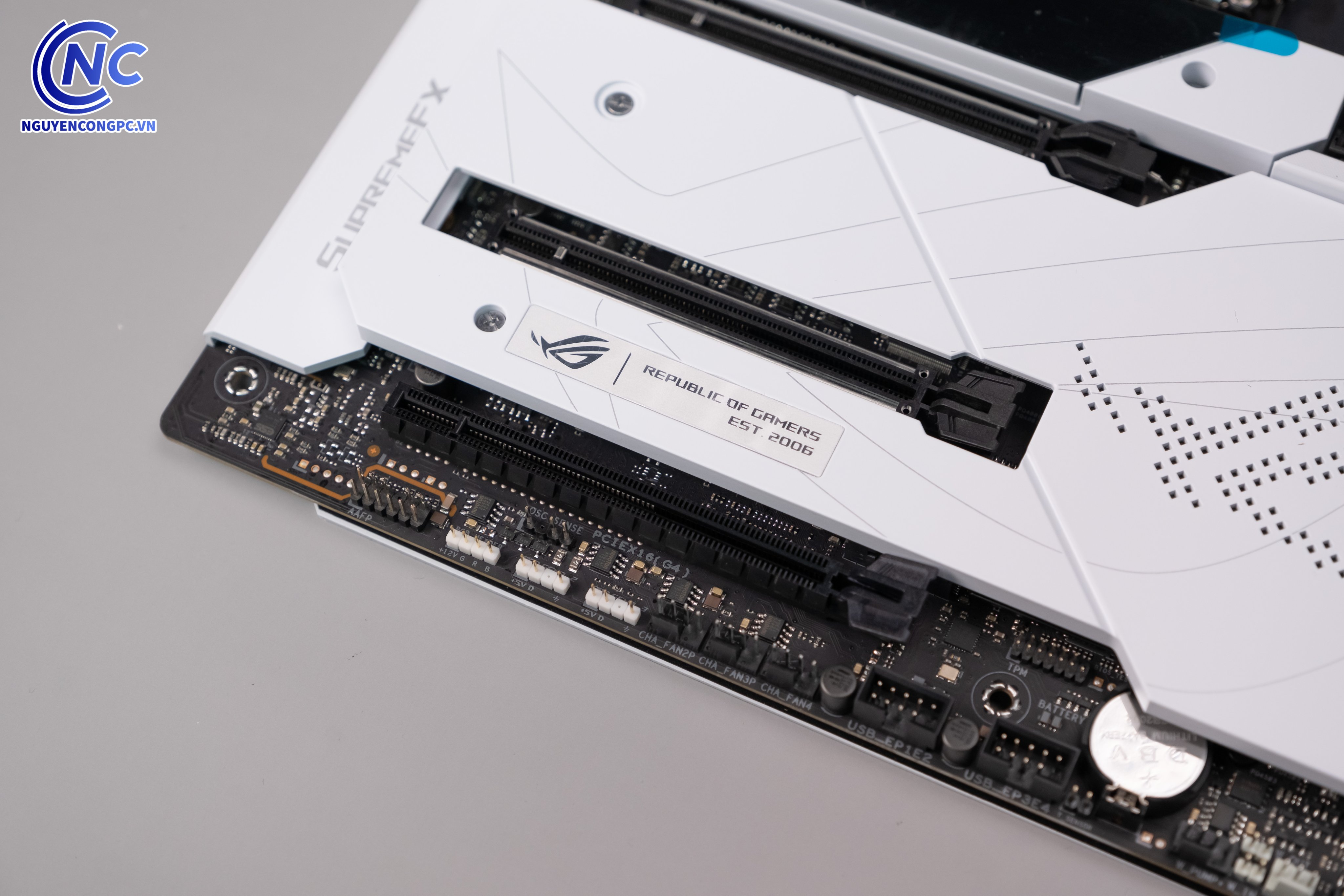

Khe RAM, khe PCI-E đều được bọc thép gia cường, tăng độ bền và sự cao cấp cho sản phẩm

Trang bị

Là bo mạch chủ cao cấp và toàn diện, ASUS ROG MAXIMUS Z690 FORMULA được trang bị những tính năng & linh kiện cao cấp nhất trong ngành:

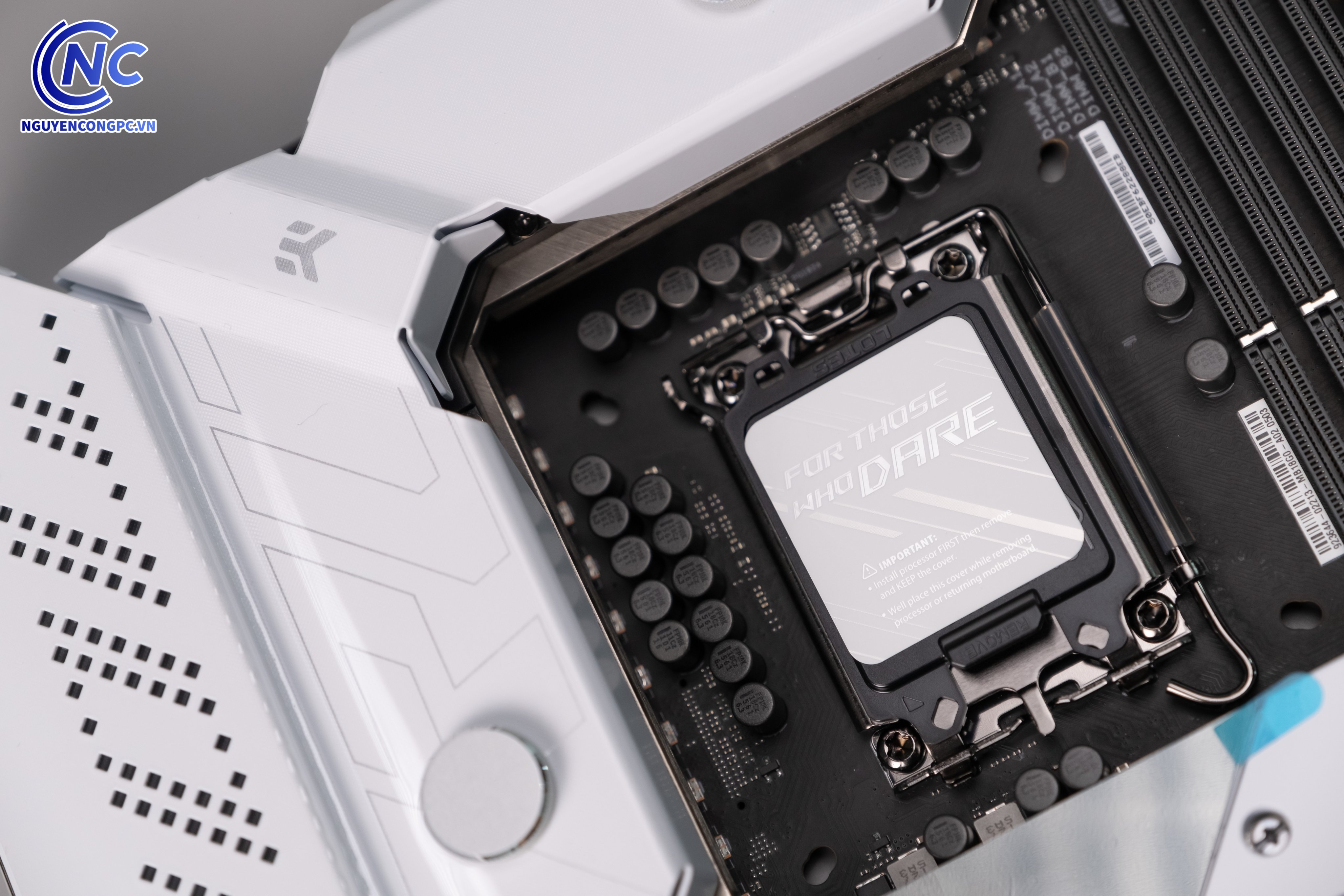

20 + 1 phase nguồn cấp điện cho CPU (105A): Đảm bảo cho mọi nhu cầu của người dùng từ cơ bản đến Overclocking ở mức khắt khe nhất

5 khe M.2 PCI-e, trong đó có 1 khe hỗ trợ chuẩn PCI-e 5.0 mới nhất

Wifi 6E, Lan AQtion 10Gb. Thunderbolt 4

AniMe Matrix™ LED display, LiveDash OLED: Hiển thị thông tin qua màn hình tích hợp sẵn trên bo mạch chủ

4 khe RAM DDR5: Tối đa 128GB

Tính năng

ASUS ROG MAXIMUS Z690 FORMULA sở hữu hệ thống chân cắm ARGB 2.0 cho phép chủ nhân điều khiển đến từng bóng LED của bất kỳ thiết bị kết nối nào có hỗ trợ

Tích hợp trí tuệ nhân tạo: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
Q-release: Gỡ nhanh khe PCI-E để dễ dàng tháo lắp, nâng cấp card đồ họa

Asus Amoury Crate: Tổ hợp phần mềm giúp người dùng kiểm soát toàn bộ hệ thống 1 cách trực quan (điều khiển LED, tốc độ quạt, theo dõi thông số hệ thống,...)

Xem tất cả

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

0 đánh giá

Bạn đánh giá sao sản phẩm này

Đánh giá ngay

Hỏi và đáp

Gửi Gửi

Đính kèm ảnh

Thông số kỹ thuật

CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* Refer to www.asus.com for CPU support list.
Chipset	Intel® Z690 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
Graphics	1 x HDMI® port 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs*
Expansion Slots	Intel® 12th Gen Processors* 2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel® Z690 Chipset* 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)***

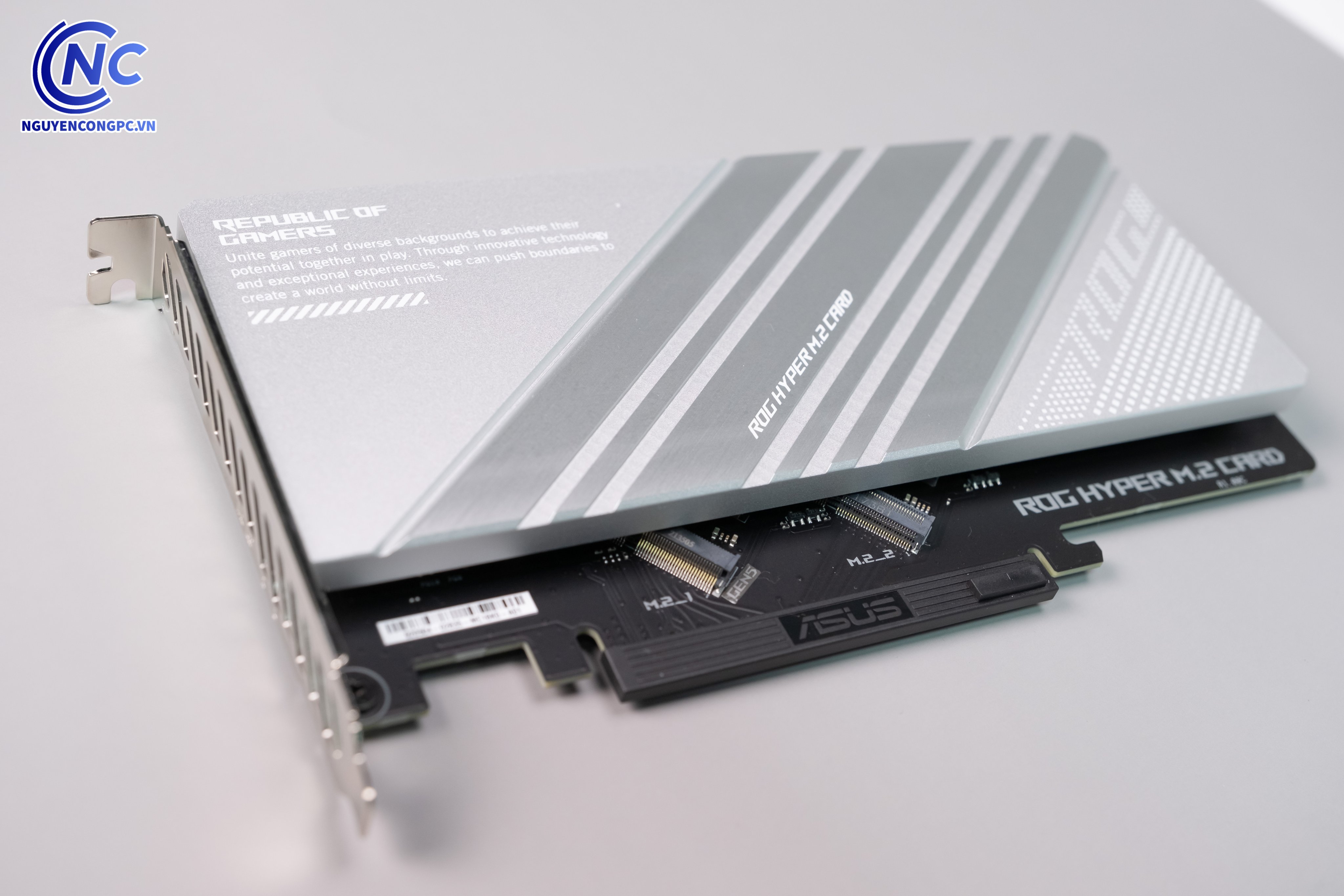

Storage	Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110* - Intel® 12th Gen processors support PCIe 5.0 x4 mode Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)* Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports***
Ethernet	1 x Marvell® 10Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Intel® Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2
USB	Rear USB:Total 12 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) 7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors

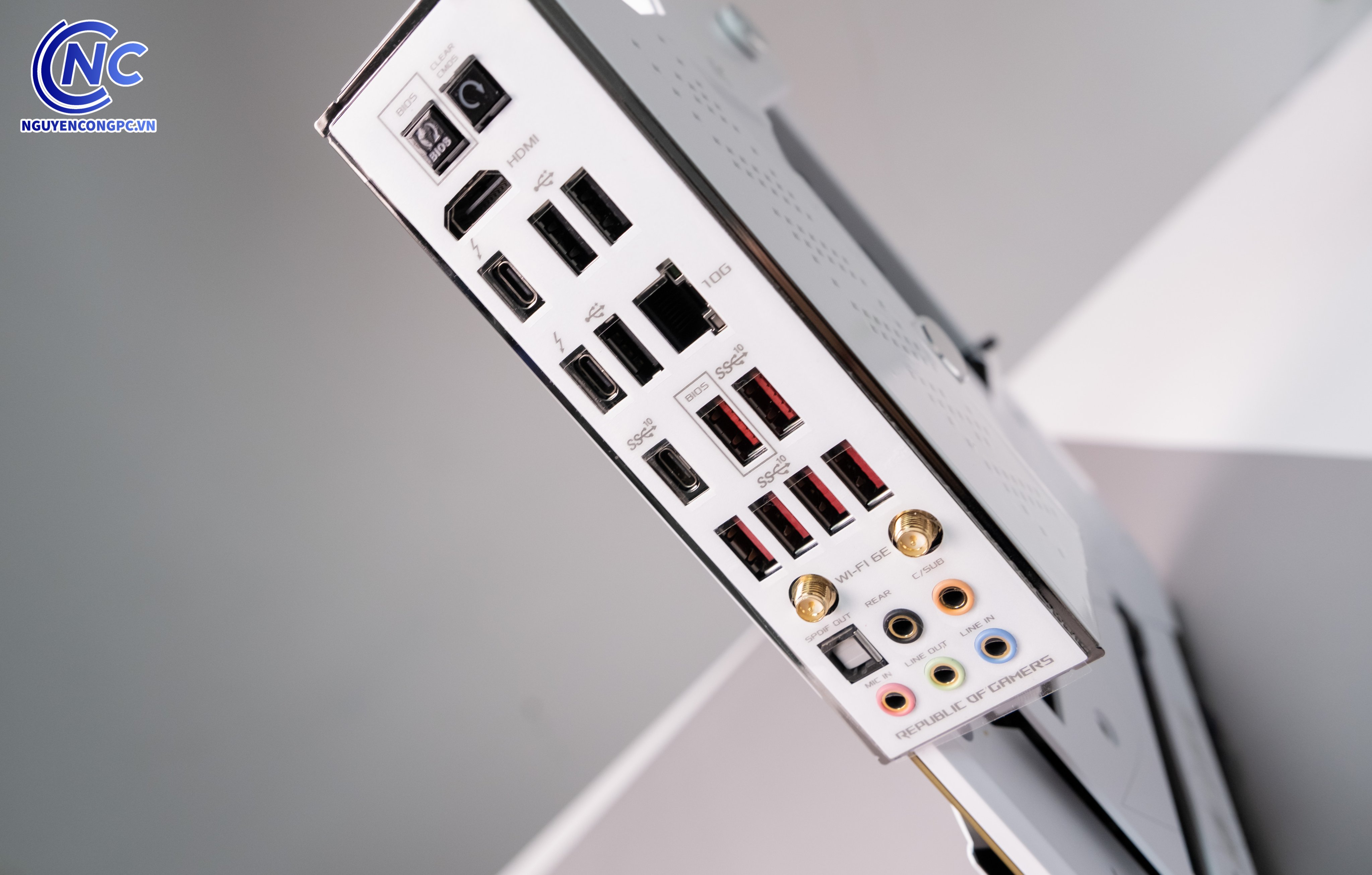

Back Panel I/O Ports	2 x Thunderbolt™ 4 USB Type-C® port(s) 7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Intrernal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x FlexKey button 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x ReTry button 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features	Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - CrossChill EK III - M.2 heatsink backplate - M.2 heatsinks - Steel backplate ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) OLED 2" Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 1 x 12-1 pin Front Panel Audio header (AAFP) - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) * Visit ASUS Website for the latest compatibility list.
Software Features	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR WEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Accessories	Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 2 x ROG weave SATA 6G cables 4 x SATA 6Gb/s cables ROG Hyper M.2 Card 1 x ROG Hyper M.2 Card 2 x M.2 screw package for ROG Hyper M.2 Card Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x Q-connector 1 x M.2 Q-Latch package(s) 2 x M.2 Q-Latch packages for M.2 backplate 1 x ROG key chain 1 x ROG stickers 1 x ROG thank you card 1 x ROG Graphic card holder Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide
Form Factor	ATX 30.5cm x 24.4cm
