Thông số sản phảm

  • Chipset: Intel Z690
  • Socket: LGA 1700
  • Số khe RAM: 4 (DDR5)
  • Kích thước: ATX
  • Tích hợp sẵn Wifi & Bluetooth

Xem thêm

Mainboard ASUS ROG MAXIMUS Z690 HERO ( DDR5)

Mã SP: SP3081088
Đánh giá: 15
Bình luận: 0
Lượt xem: 6883
Bảo hành: 36 tháng
Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

13.990.000đ

17.130.000₫
Tiết kiệm 3.140.000đ

Số lượng:

+

Thêm vào giỏ hàng

Sản phẩm còn hàng tại

Showroom Miền Bắc:

Showroom Miền Nam:

Yên tâm mua hàng

Cam kết giá tốt nhất thị trường.

Sản phẩm mới 100%.

Lỗi 1 đổi 1 ngay lập tức.

Hỗ trợ trả góp - Thủ tục nhanh gọn.

Sản phẩm tương tự

Giới thiệu Mainboard ASUS ROG MAXIMUS Z690 HERO ( DDR5)

ASUS ROG MAXIMUS Z690 HERO là phiên bản bo mạch chủ Z690 cao cấp của Asus, sở hữu trang bị hiện đại và thiết kế vô cùng bắt mắt.

Thiết kế

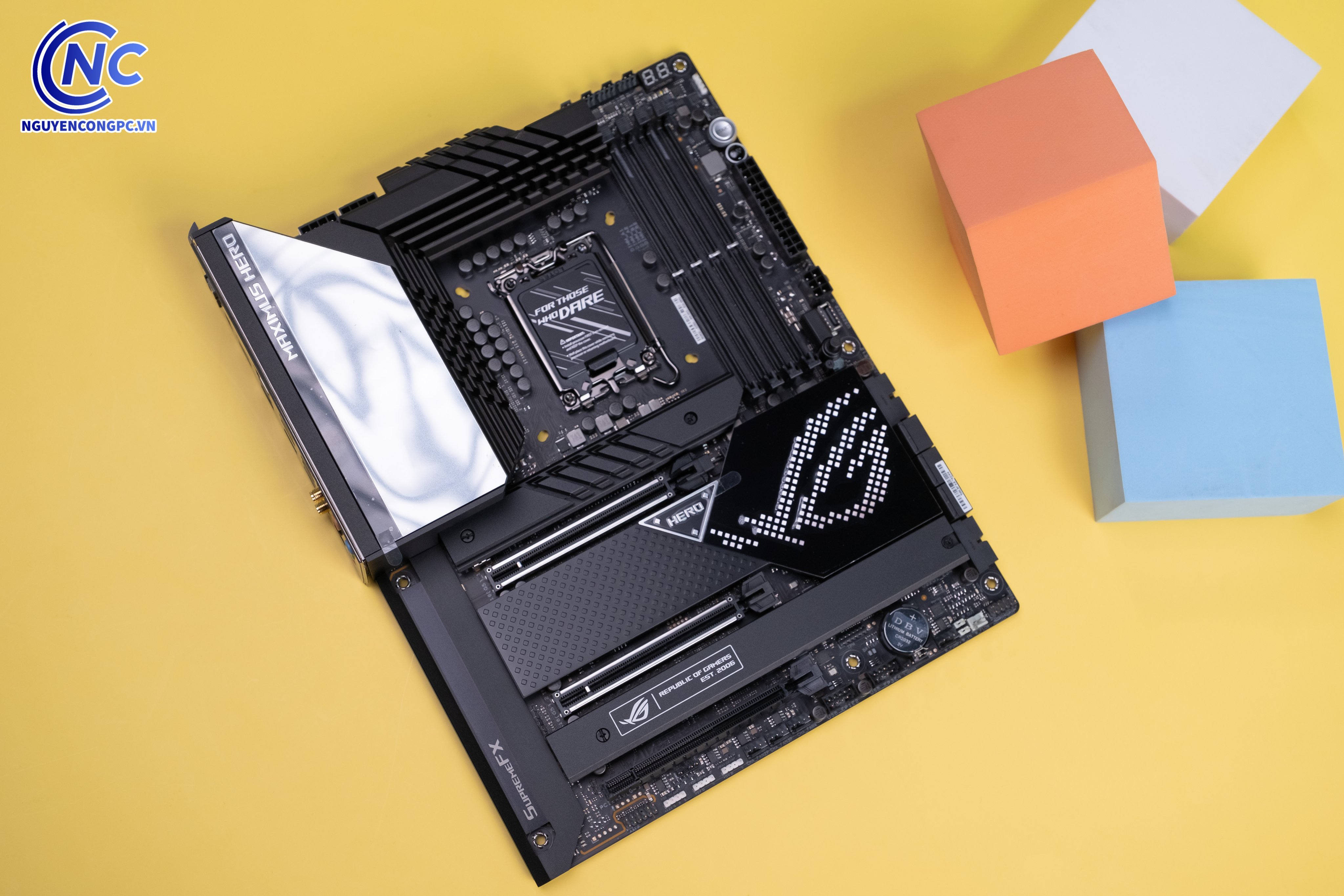

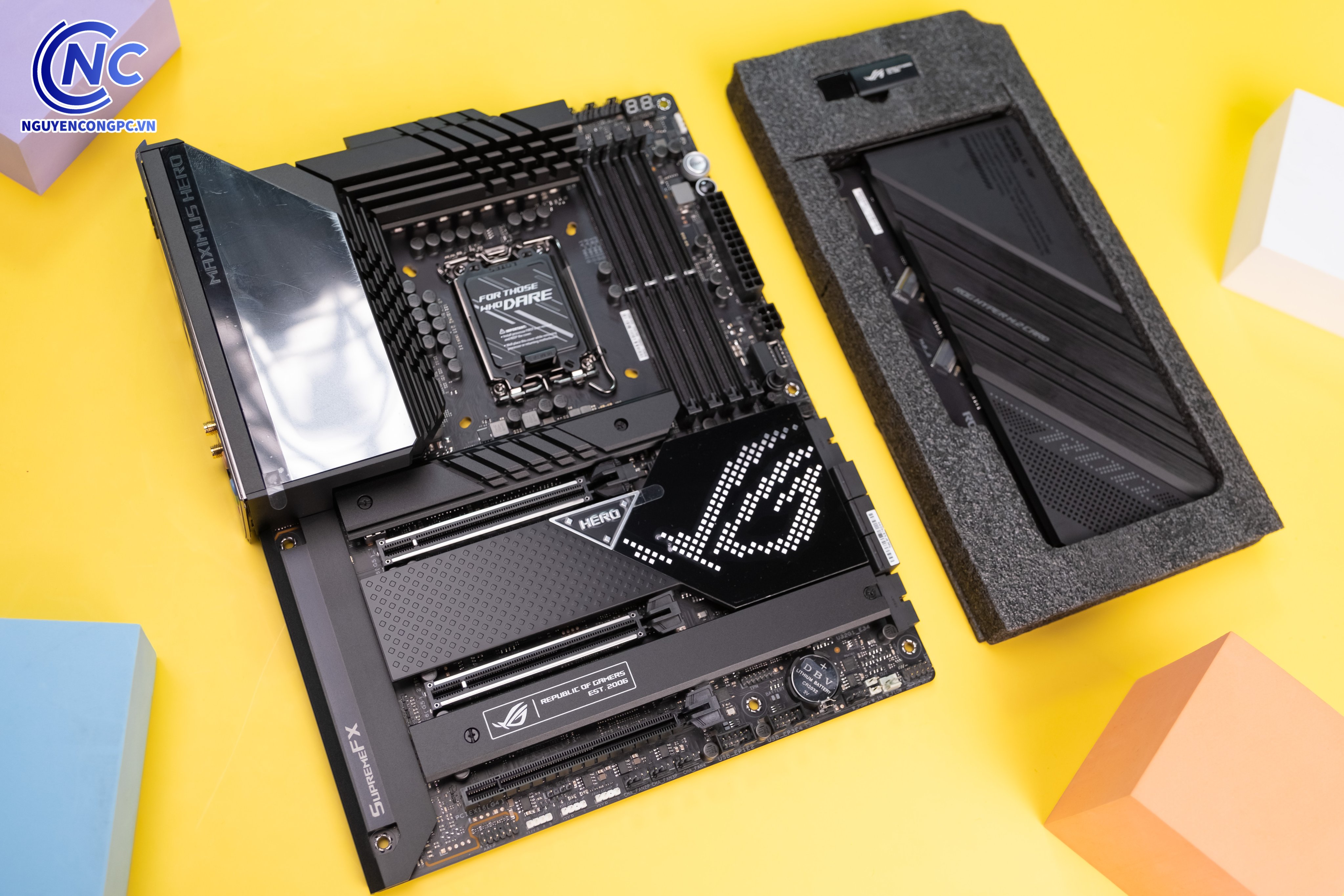

ASUS ROG MAXIMUS Z690 HERO sở hữu thiết kế ATX với ngoại hình mang hơi hướng tương lai, nổi bật là các khối heatsink đẹp mắt bao phủ ở các khu vực quan trọng trên bo mạch chủ.


Phần PCB được cấu thành từ nhiều lớp với rất nhiều đồng (Cu) - giúp truyền dẫn tín hiệu và hỗ trợ khả năng tản nhiệt cho các linh kiện.

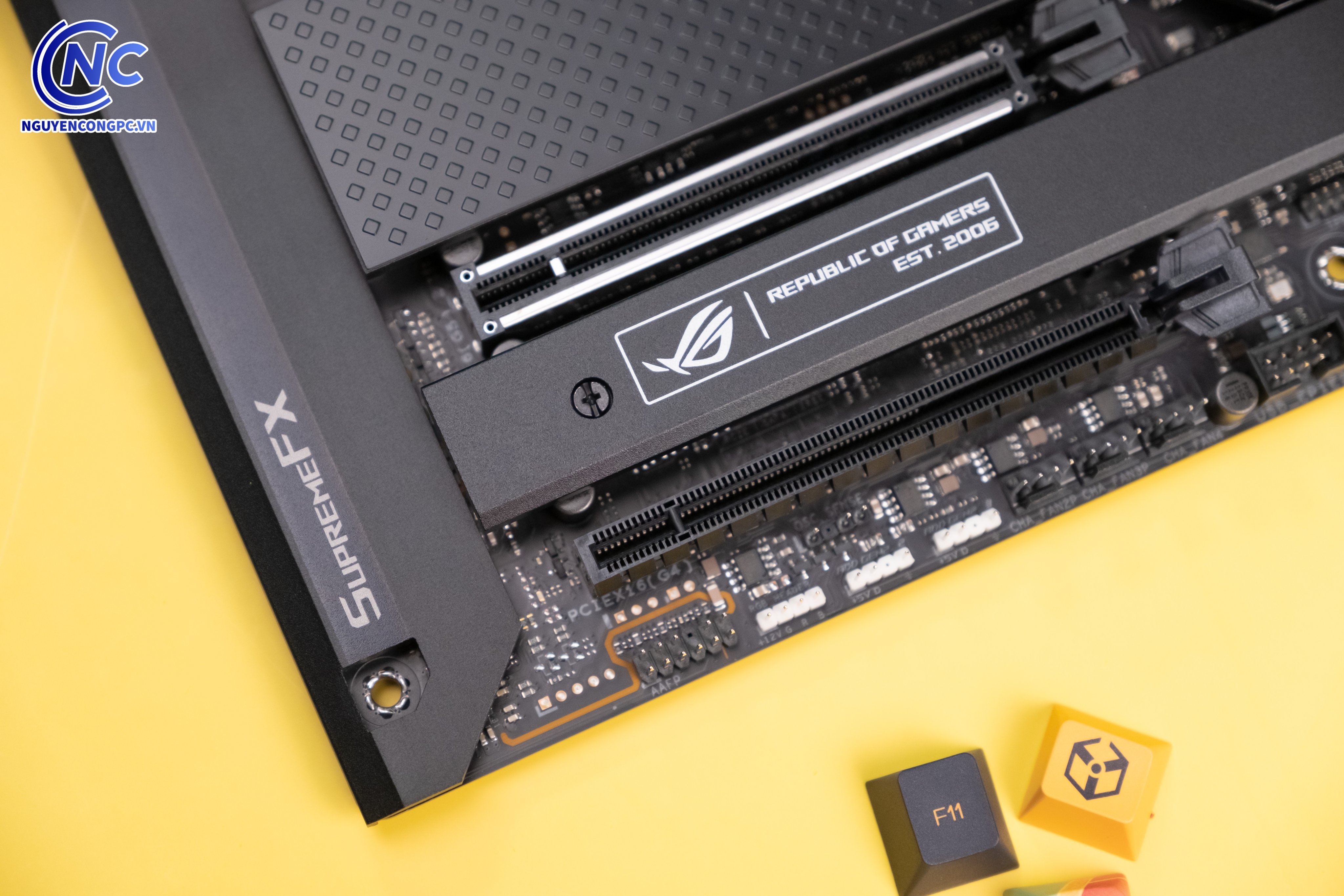

Khe RAM, khe PCI-E đều được bọc thép gia cường, tăng độ bền và sự cao cấp cho sản phẩm

Trang bị

Là bo mạch chủ cao cấp, ASUS ROG MAXIMUS Z690 HERO được trang bị đầy đủ các tính năng hiện đại nhất:

20 + 1 phase nguồn cấp điện cho CPU: Đảm bảo cho mọi nhu cầu của người dùng từ cơ bản đến Overclocking các CPU đa nhân mạnh mẽ nhất.


5 khe M.2 PCI-e Gen 4 x4

Thunderbolt 4 (Type C), Lan 2.5Gb. Wifi 6E

Mainboard ASUS ROG MAXIMUS Z690 HERO (Intel Z690, Socket 1700, ATX, 4 khe RAM DDR5)


4 khe RAM DDR5: Tối đa 128GB
Tản nhiệt tích hợp sẵn cho khe M.2
Q-Release: Mở khóa nhanh khe PCI-E giúp tháo lắp cảd đồ họa dễ dàng hơn

Tính năng

ASUS ROG MAXIMUS Z690 HERO sở hữu hệ thống chân cắm ARGB 2.0 cho phép chủ nhân điều khiển đến từng bóng LED của bất kỳ thiết bị kết nối nào có hỗ trợ


Tích hợp trí tuệ nhân tạo: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
Asus Amoury Crate: Tổ hợp phần mềm giúp người dùng kiểm soát toàn bộ hệ thống 1 cách trực quan (điều khiển LED, tốc độ quạt, theo dõi thông số hệ thống,...)




Xem tất cả

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

5
0 đánh giá
4
0 đánh giá
3
0 đánh giá
2
0 đánh giá
1
0 đánh giá

Bạn đánh giá sao sản phẩm này

Hỏi và đáp

Đính kèm ảnh

Thông số kỹ thuật

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Z690
Khe RAM

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)

Cổng xuất hình 1 x HDMI® port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
Khe PCI Intel® 12th Gen Processors*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel® Z690 Chipset***
1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
* Please check PCIe bifurcation table in Chapter 1.
** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
*** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Lưu trữ Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***
- Intel® 12th Gen processors support PCIe 5.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****
6 x SATA 6Gb/s ports*****
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
*** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
**** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports
Ethernet 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Intel® Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB Rear USB:
Total 11 ports
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB:
Total 9 ports
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Drive âm thanh ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features:
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

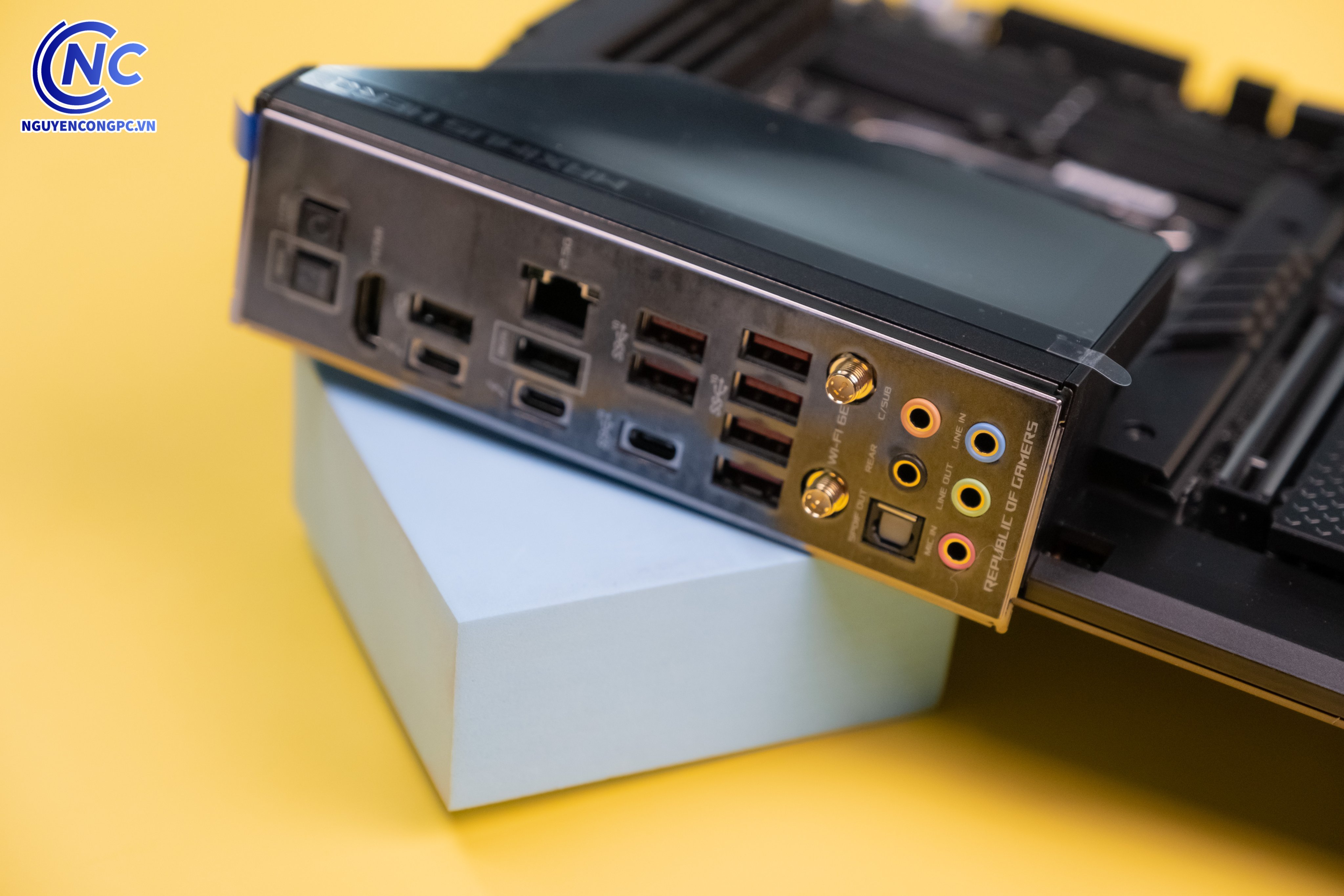

Cổng I/O phía sau 2 x Thunderbolt™ 4 USB Type-C® ports
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
Cổng kết nối I/O

Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


4 x 4-pin Chassis Fan headers


1 x W_PUMP+ header


1 x 2-pin Water In header


1 x 2-pin Water Out header


1 x 3-pin Water Flow header


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connector


1 x 6-pin PCIe Graphics Card connector


Storage related


3 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)


2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x AURA RGB header


1 x FlexKey button


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x Start button


1 x ReTry button


1 x 10-1 pin System Panel header


1 x Thermal Sensor header

Tính năng đặc biệt

Extreme OC Kit

- FlexKey button


- ReTry button


- Start button


Extreme Engine Digi+


- 10K Black Metallic Capacitors


- MicroFine Alloy Choke


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-Code


- Q-Connector


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink backplate


- M.2 heatsinks


- VRM heatsink design


ASUS EZ DIY


- BIOS FlashBack™ button


- Clear CMOS button


- CPU Socket lever protector


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- AURA RGB header(s)


- Addressable Gen 2 header(s)


Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support


- Support: up to 60W charging*


- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A


- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS


* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W


ASUS HYDRANODE


- 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)


* Visit ASUS Website for the latest compatibility list.

Phần mềm đi kèm

ROG Exclusive Software


- ROG CPU-Z


- GameFirst VI


- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


- Sonic Radar III


- DTS® Sound Unbound


- BullGuard Internet Security (1-year full version)


ASUS Exclusive Software


Armoury Crate


- AIDA64 Extreme (1 year full version)


- AURA Creator


- AURA Sync


- Fan Xpert 4


- Two-Way AI Noise Cancelation


AI Suite 3


- Easy Optimization with AI Overclocking


 TPU


 EPU


 DIGI+ Power Control


 Turbo app


MyAsus


WinRAR


UEFI BIOS


AI Overclocking Guide


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


MemTest86

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Quản lý WOL by PME, PXE
Phụ kiện đi kèm

Cables


1 x ARGB RGB extension cable


1 x RGB extension cable


4 x SATA 6Gb/s cables


ROG Hyper M.2 Card


1 x ROG Hyper M.2 Card with heatsink


2 x M.2 screw packages for ROG Hyper M.2 Card


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x M.2 Q-Latch package


2 x M.2 Q-Latch packages for M.2 backplate


1 x M.2 Rubber Package


1 x Q-connector


1 x ROG Graphics card holder


1 x ROG stickers


1 x ROG key chain


1 x ROG thank you card


Installation Media


1 x USB drive with utilities and drivers


Documentation


1 x User Guide

Hệ điều hành Windows® 11 64-bit, Windows® 10 64-bit
Kích thước ATX
30.5cm x 24.4cm
