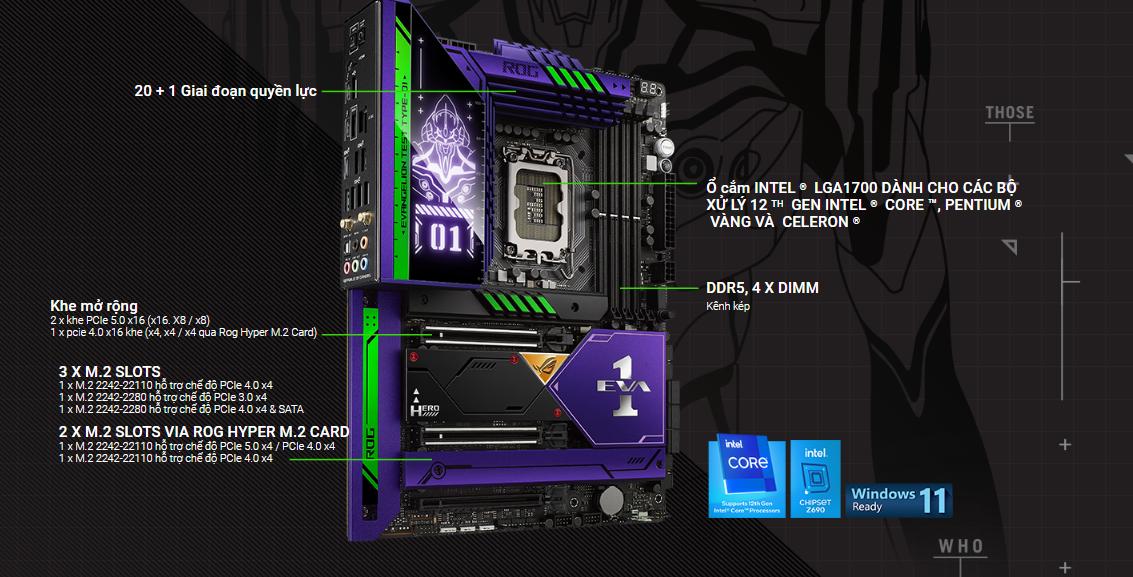

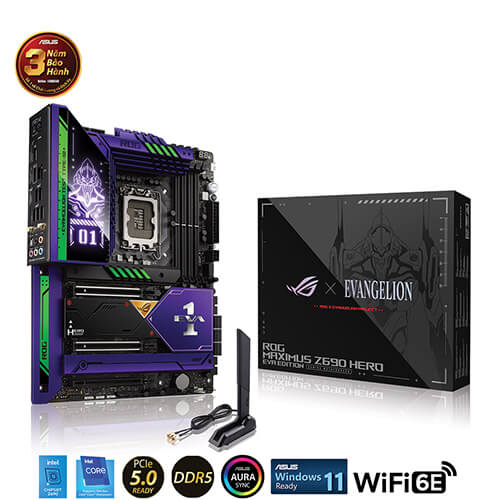

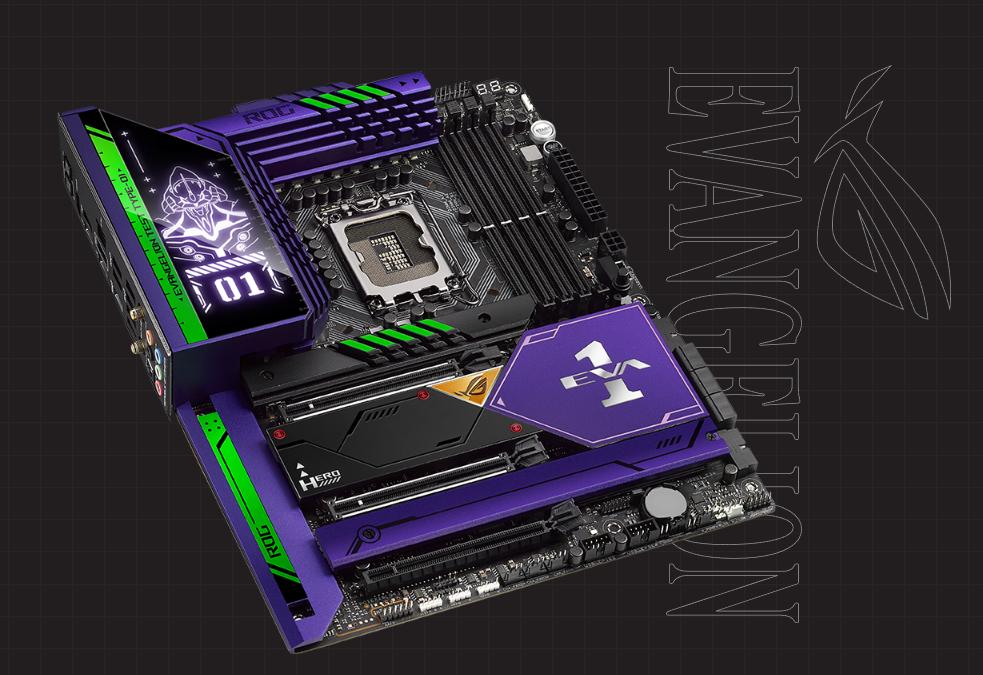

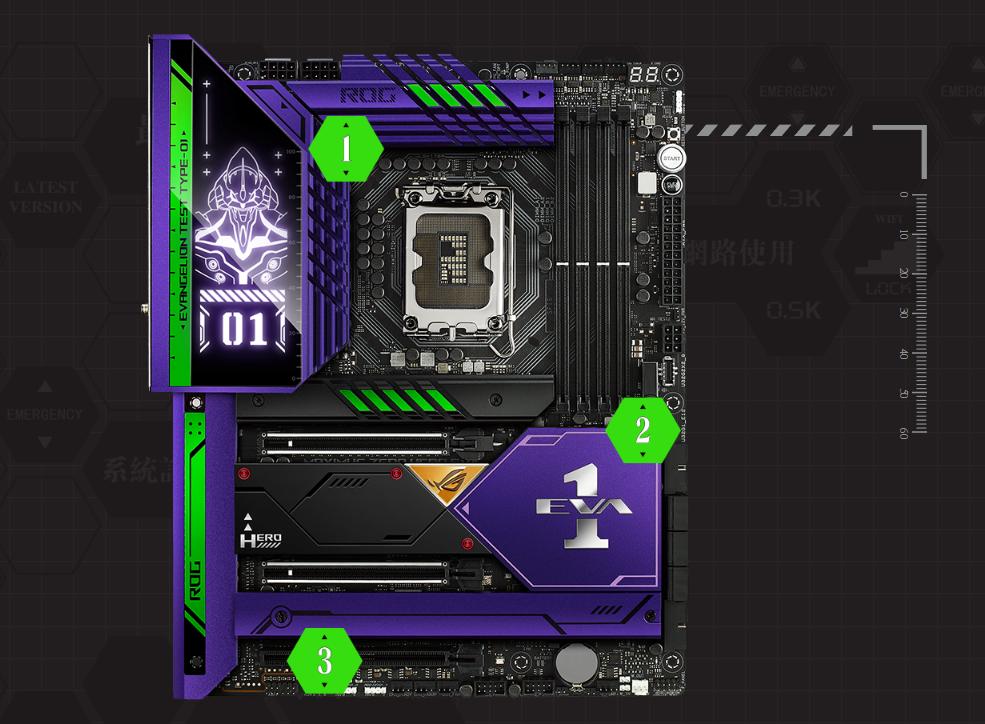

Mainboard Asus Rog Maximus Z690 Hero EVA

Asus

ROG Maximus Z690 Hero Eva Edition

ATX

LGA 1700

Z690

4 x DIM

DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC

128GB

Dual Chanel

2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)

1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)

6 x SATA 6Gb/s ports

5 x M.2

Ready

0/1/5/10

Audio CODEC ALC4082

7.1

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

2.5Gb

2 x Thunderbolt™ 4 USB Type-C® ports

7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

2 x Thunderbolt™ 4 ports (2 x USB Type-C®)

7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)

2 x USB 2.0 ports (2 x Type-A)

Front USB:

Total 9 ports

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Start button

1 x ReTry button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector
