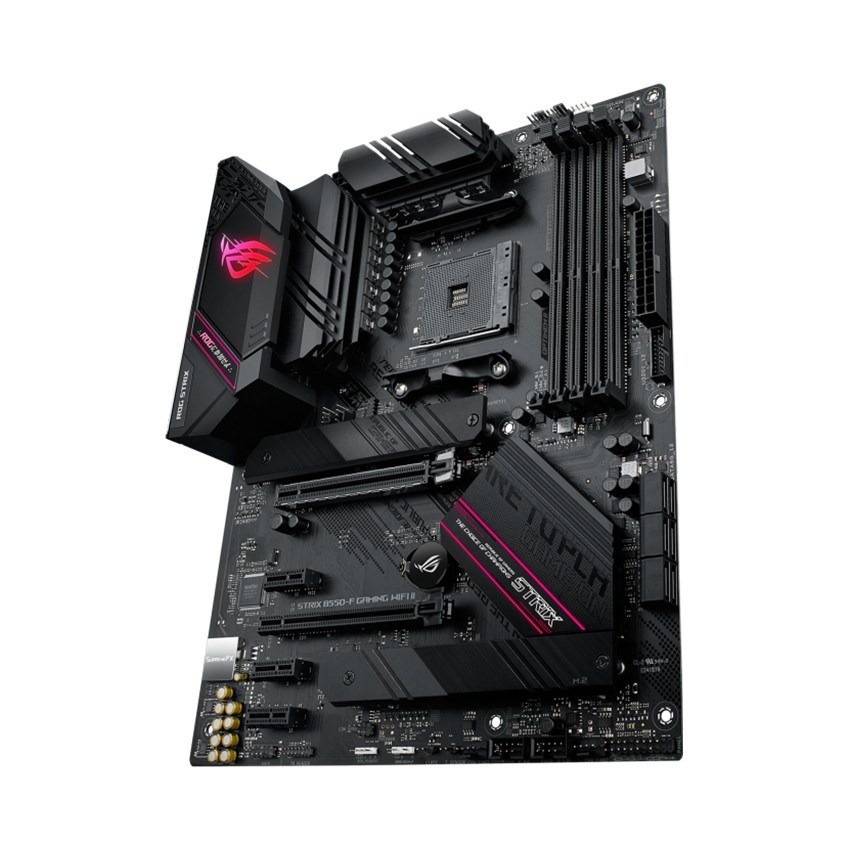

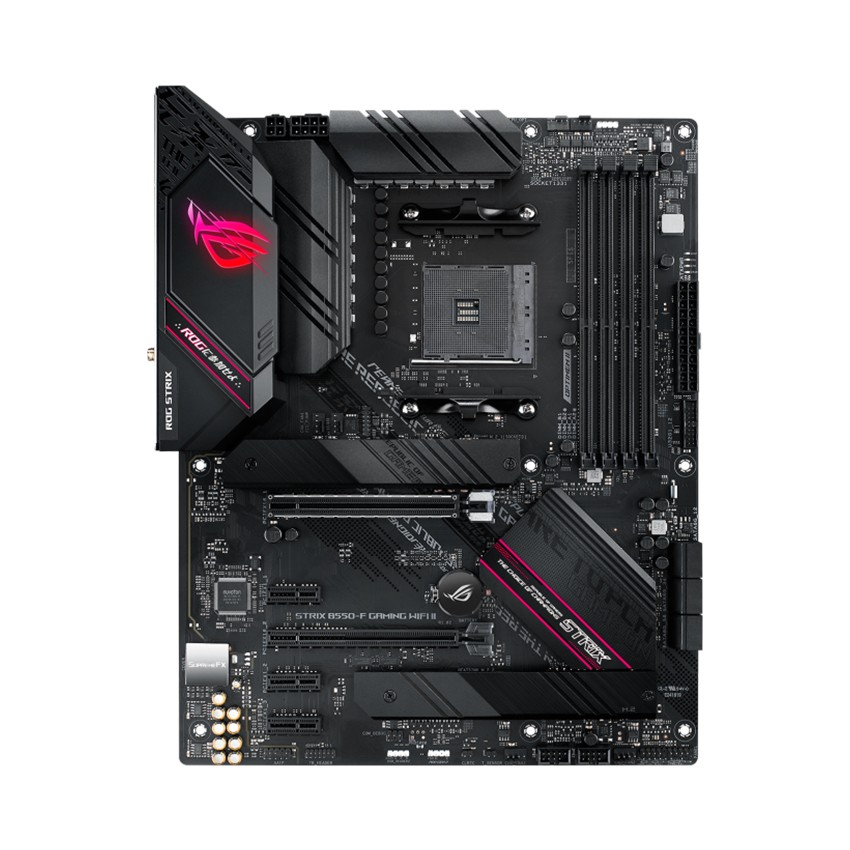

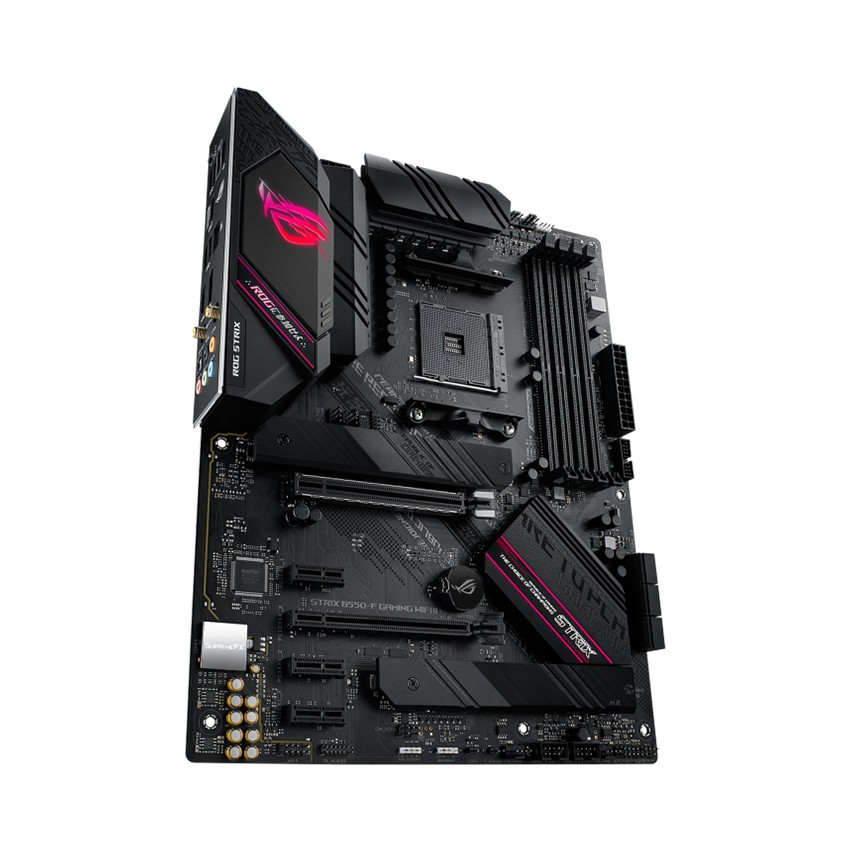

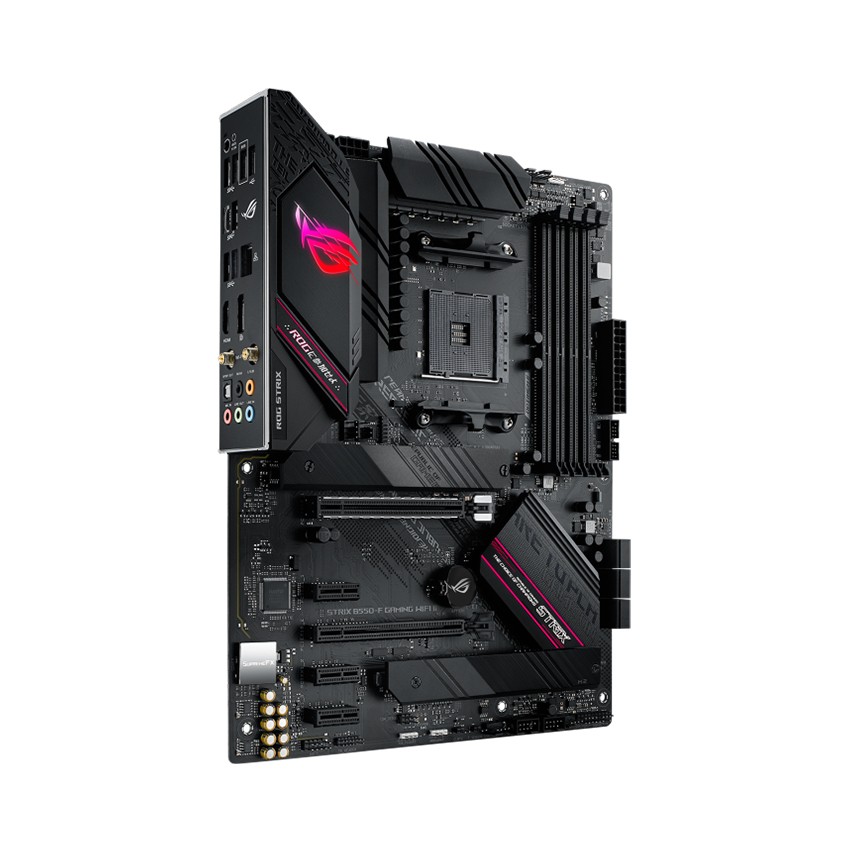

Mainboard Asus ROG STRIX B550-F Gaming WIFI II

• Supports AMD Ryzen 5000 / 3000 Series Processors*
• Supports AMD Ryzen 5000 / 4000 G-Series Processors

• DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors)
• DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors)

1 x PCI Express 3.0 x16*

* Supports x4 mode.
* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.

• AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors:
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• AMD B550 Chipset:
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• 1 x Wi-Fi Module
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Intel I225-V 2.5G Ethernet
• 1 x Optical S/PDIF out
• 5 x Audio jacks
• 1 x BIOS FlashBack button

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• 1 x 4-Pin AIO_Pump header
• 1 x 4-Pin CPU fan header
• 1 x 4-Pin CPU_OPT fan header
• 3 x 4-Pin Chassis fan headers

• 1 x Addressable Gen 2 header
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front panel audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal sensor header
• 1 x Thunderbolt header

• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)

Special Features:
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- M.2 heatsink
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot

Software Features:
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3:
- Performance And Power Saving Utility
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
- EZ update
WinRAR
DAEMON Tools
Norton Anti-virus software (Free Trial version)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
