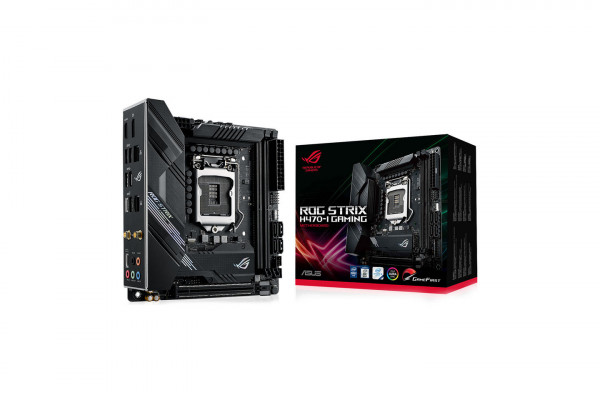

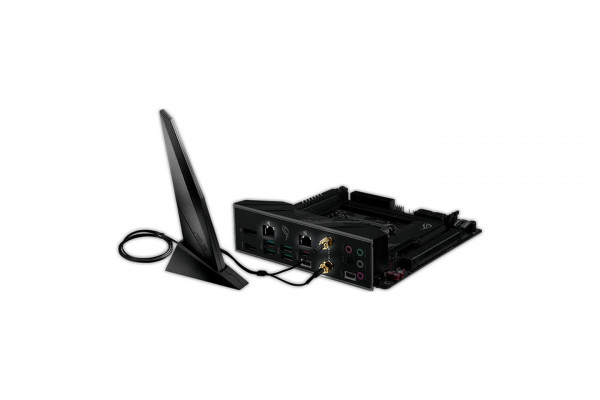

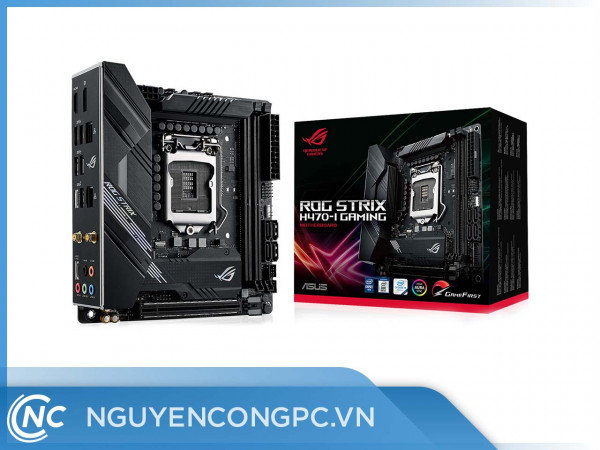

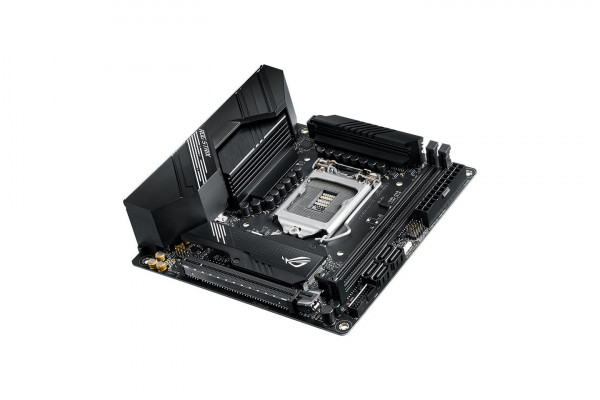

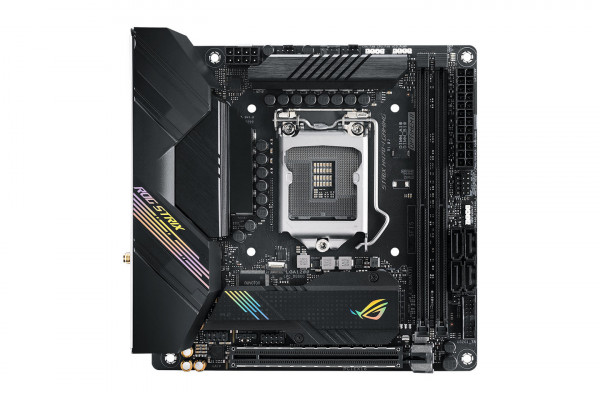

Giới thiệu Mainboard ASUS ROG STRIX H470-I GAMING
Mainboard ASUS ROG STRIX H470-I GAMING có tính năng cung cấp năng lượng mạnh và làm mát hiệu quả được thiết kế để hỗ trợ bộ xử lý Intel® Core™ thế hệ thứ 10 mới nhất. Với phần mềm ROG trực quan và thẩm mỹ bắt mắt, ROG Strix H470-I Gaming mang đến cho bạn một khởi đầu cho việc xây dựng trò chơi mơ ước của bạn...
Bình luận và đánh giá
Sản phẩm | Mainboard - Bo mạch chủ |
Tên Hãng | ASUS |
Model | ROG STRIX H470-I GAMING |
CPU hỗ trợ | Intel® Socket 1200 cho Intel® Core™ thế hệ 10, Pentium® Gold and Celeron® Bộ vi xử lý Hỗ trợ Intel® 14 nm CPU Hỗ trợ Công nghệ Intel® Turbo Boost 2.0 và Intel® Turbo Boost Max 3.0** * Tham khảo www.asus.com để xem danh sách hỗ trợ CPU **Hỗ trợ Công nghệ Intel® Turbo Boost Max 3.0 tùy theo loại CPU. |
Chipset |
Intel® H470
|
RAM hỗ trợ |
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Không ECC, Không Đệm Bộ nhớ *
|
Đồ họa |
Bộ xử lý đồ họa tích hợp
|
Khe cắm mở rộng | 1 x PCIe 3.0 x16 |
Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
LAN | Intel® I219-V 1Gb Ethernet Realtek RTL8111H 1Gb Ethernet ASUS LANGuard |
Wireless | Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Up to 2.4Gbps transfer speed |
Âm Thanh | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Rear audio USB Type-C® port - Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
USB | Rear USB Port ( Total 7 ) 2 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s)(1 x USB Type-C®) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
Các tính năng của phần mềm | [ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Tính năng đặc biệt | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector |

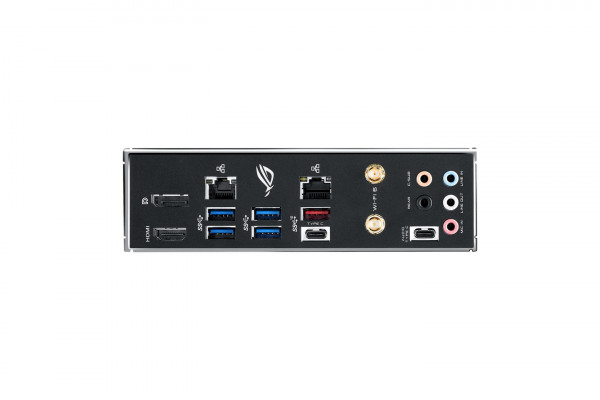

Cổng kết nối ( I/O Phía sau) | 1 x Intel® I219-V 1Gb Ethernet 1 x Realtek RTL8111H 1Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (red)Type-A + USB Type-CTM 4 x USB 3.2 Gen 1 1 x USB 2.0 *3 5 x Audio jack(s) |
Cổng kết nối ( I/O bên trong) | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector |
Phụ kiện | User's manual 2 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 M.2 SSD screw package(s) 1 ROG key chain |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS
|
Khả năng quản lý |
WOL by PME, PXE
|
Kích cỡ | Dạng thiết kế Mini ITX 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
Ghi chú | *when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled *3 1 x audio USB Type-C® |
Thông số kỹ thuật
Sản phẩm | Mainboard - Bo mạch chủ |
Tên Hãng | ASUS |
Model | ROG STRIX H470-I GAMING |
CPU hỗ trợ | Intel® Socket 1200 cho Intel® Core™ thế hệ 10, Pentium® Gold and Celeron® Bộ vi xử lý Hỗ trợ Intel® 14 nm CPU Hỗ trợ Công nghệ Intel® Turbo Boost 2.0 và Intel® Turbo Boost Max 3.0** * Tham khảo www.asus.com để xem danh sách hỗ trợ CPU **Hỗ trợ Công nghệ Intel® Turbo Boost Max 3.0 tùy theo loại CPU. |
Chipset |
Intel® H470
|
RAM hỗ trợ |
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Không ECC, Không Đệm Bộ nhớ *
|
Đồ họa |
Bộ xử lý đồ họa tích hợp
|
Khe cắm mở rộng | 1 x PCIe 3.0 x16 |
Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
LAN | Intel® I219-V 1Gb Ethernet Realtek RTL8111H 1Gb Ethernet ASUS LANGuard |
Wireless | Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Up to 2.4Gbps transfer speed |
Âm Thanh | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Rear audio USB Type-C® port - Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
USB | Rear USB Port ( Total 7 ) 2 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s)(1 x USB Type-C®) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
Các tính năng của phần mềm | [ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Tính năng đặc biệt | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector |
Cổng kết nối ( I/O Phía sau) | 1 x Intel® I219-V 1Gb Ethernet 1 x Realtek RTL8111H 1Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (red)Type-A + USB Type-CTM 4 x USB 3.2 Gen 1 1 x USB 2.0 *3 5 x Audio jack(s) |
Cổng kết nối ( I/O bên trong) | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector |
Phụ kiện | User's manual 2 x SATA 6Gb/s cable(s) 1 x pack of cable tie 1 x Supporting DVD 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 M.2 SSD screw package(s) 1 ROG key chain |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS
|
Khả năng quản lý |
WOL by PME, PXE
|
Kích cỡ | Dạng thiết kế Mini ITX 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
Ghi chú | *when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled *3 1 x audio USB Type-C® |
