Thông số sản phảm

Supports 12th/ 13th/ 14th
Generation Intel Core™ Processor
Intel Z690 single chip architecture
Supports 2-DIMM DDR4 4400+(OC) up to 64 GB Memory
Supports PCIe 4.0
Supports PCIe 4.0 M.2 (64Gb/s)

Xem thêm

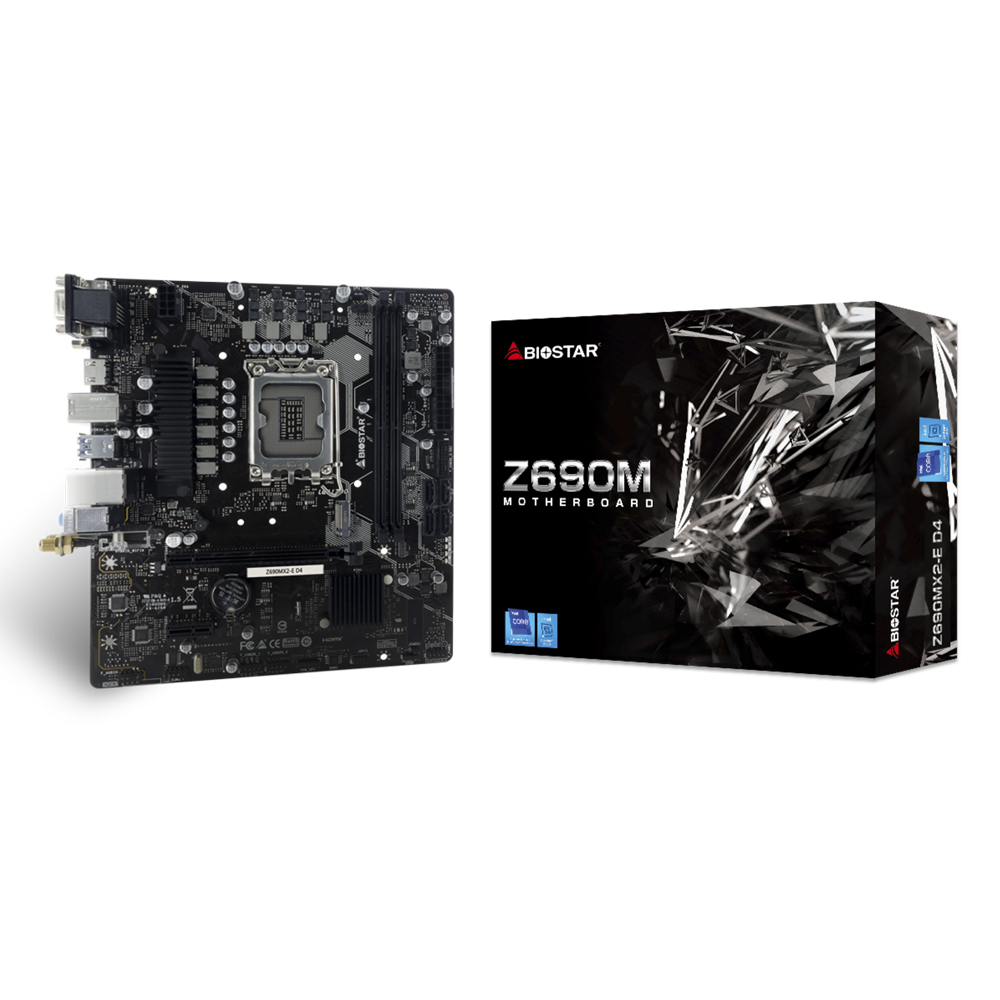

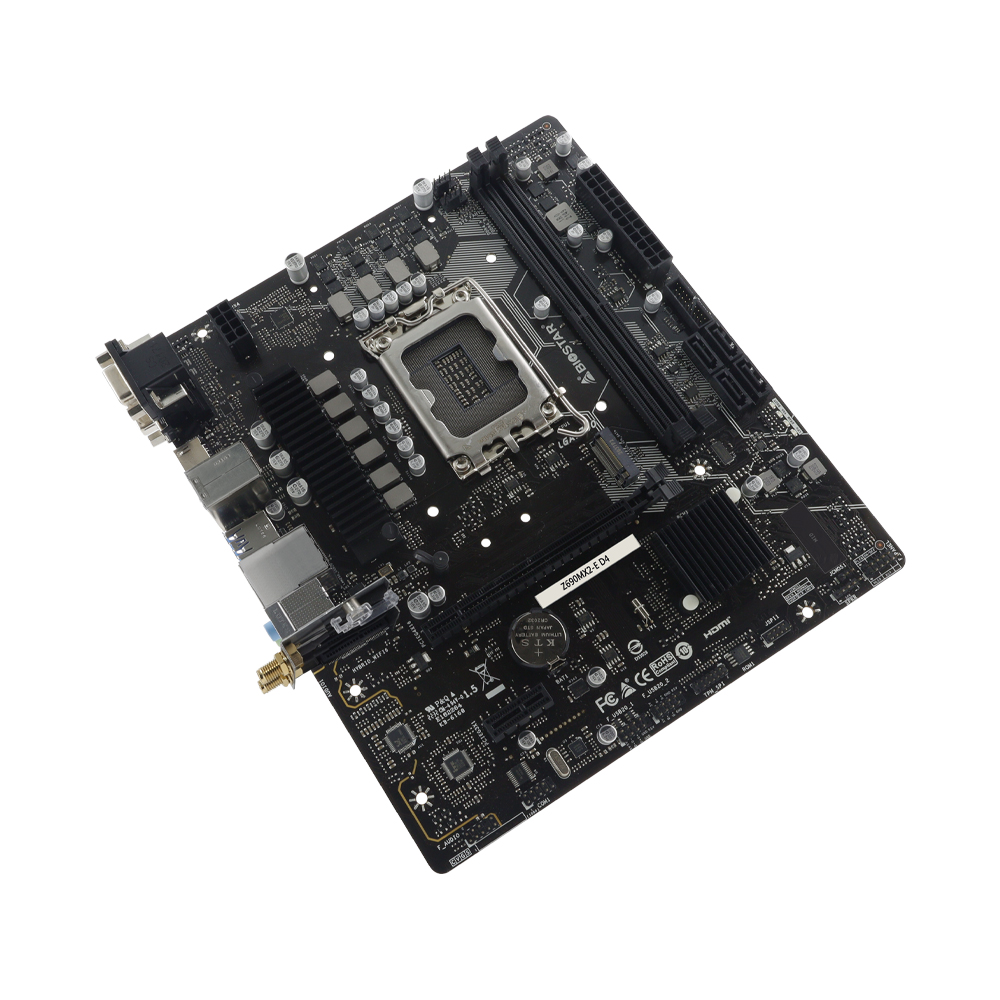

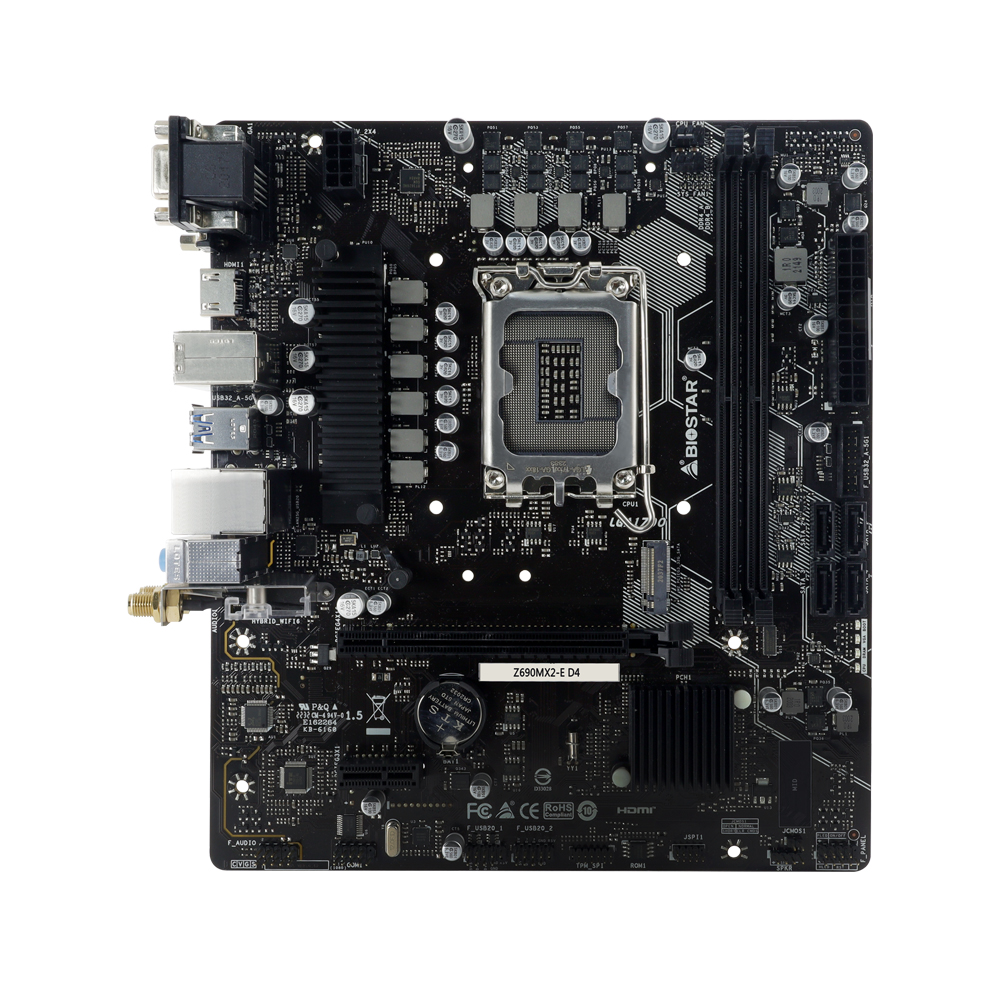

Mainboard BIOSTAR Z690MX2-E D4 (Intel Z690, Socket 1700, 2xDDR4, mATX)

Name: Mainboard BIOSTAR Z690MX2-E D4 (Intel Z690, Socket 1700, 2xDDR4, mATX)
Brand: BIOSTAR
SKU: MB0000689
Availability: InStock
Rating: 9.4 (19 reviews)

Mã SP: MB0000689

Đánh giá: 0

Bình luận: 0

Bảo hành: 36 tháng

Tình trạng: Còn hàng

Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

2.490.000đ

3.990.000₫

Tiết kiệm 1.500.000đ

Số lượng:

−

Thêm vào giỏ hàng

ĐẶT MUA NGAY Giao hàng tận nơi nhanh chóng TRẢ GÓP QUA HỒ SƠ Chỉ từ 2.665.000₫/ tháng TRẢ GÓP QUA THẺ Chỉ từ 1.332.500₫/ tháng

Yên tâm mua hàng

Cam kết giá tốt nhất thị trường.

Sản phẩm mới 100%.

Lỗi 1 đổi 1 ngay lập tức.

Hỗ trợ trả góp - Thủ tục nhanh gọn.

Khách hàng Phạm Nguyên (036 856 xxxx)

Đã mua hàng 2 giờ trước

Khách hàng Quang Hiền (035 348 xxxx)

Đã mua hàng 1 giờ trước

Khách hàng Nguyễn Hằng (097 478 xxxx)

Đã mua hàng 30 phút trước

Khách hàng Hoàng Hà (037 204 xxxx)

Đã mua hàng 25 phút trước

Khách hàng PAVEL KIRIUSHCHEV (096 859 xxxx)

Đã mua hàng 20 phút trước

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

0 đánh giá

Bạn đánh giá sao sản phẩm này

Đánh giá ngay

Xem thêm đánh giá

Hỏi và đáp

Gửi Gửi

Đính kèm ảnh

Thông số kỹ thuật

Chipset	Intel Z690
CPU SUPPORT	Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 - 4400(OC)+/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2666/ 2400/2133/ 1866 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel® Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	By CPU model Supports DX12 Supports HDCP
STORAGE	Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports Intel Z690 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2240 /2260 /2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology * Specifications vary by CPU types
LAN	RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	ALC897 7.1 Channels, High Definition Audio
USB	4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT	INTEL 12th/13th/14th Processors 1 x PCIe 4.0 x16 Slot (x16 mode) INTEL Z690 Chipset 1 x PCIe 3.0 x1 Slot * Specifications vary by CPU types

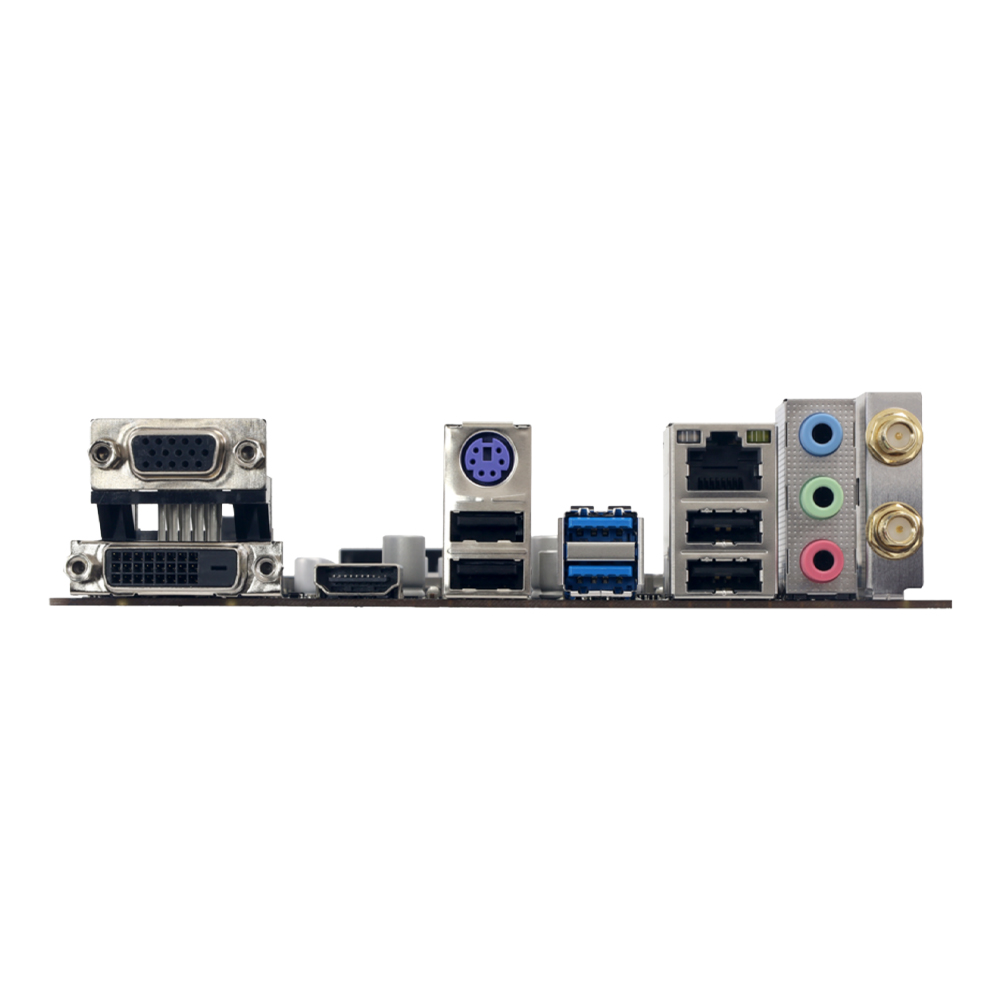

REAR I/O	1 x WIFI Antenna Port 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA+DVI Port 2 x USB 3.2 (Gen1) port 4 x USB 2.0 port 1 x LAN port 3 x Audio Jack
INTERNAL I/O	4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header * M.2 (E key) Wi-Fi card is not provided
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION	Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
OS SUPPORT	Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard
ACCESSORIES	2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor 1 x WiFi antenna accessories

Chipset	Intel Z690
CPU SUPPORT	Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 - 4400(OC)+/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2666/ 2400/2133/ 1866 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel® Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	By CPU model Supports DX12 Supports HDCP
STORAGE	Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports Intel Z690 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2240 /2260 /2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology * Specifications vary by CPU types
LAN	RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	ALC897 7.1 Channels, High Definition Audio
USB	4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT	INTEL 12th/13th/14th Processors 1 x PCIe 4.0 x16 Slot (x16 mode) INTEL Z690 Chipset 1 x PCIe 3.0 x1 Slot * Specifications vary by CPU types
REAR I/O	1 x WIFI Antenna Port 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA+DVI Port 2 x USB 3.2 (Gen1) port 4 x USB 2.0 port 1 x LAN port 3 x Audio Jack
INTERNAL I/O	4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header * M.2 (E key) Wi-Fi card is not provided
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
DIMENSION	Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
OS SUPPORT	Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard
ACCESSORIES	2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor 1 x WiFi antenna accessories

Xem đầy đủ thông số kỹ thuật
