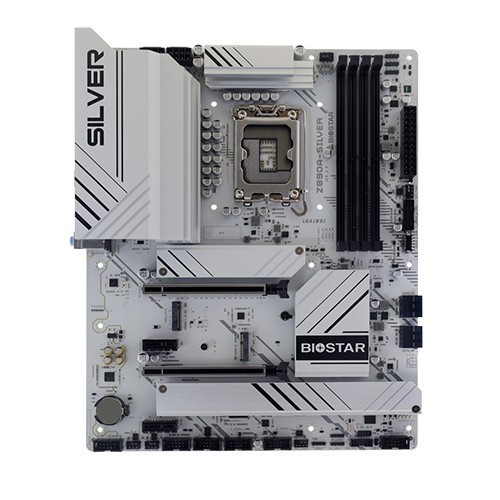

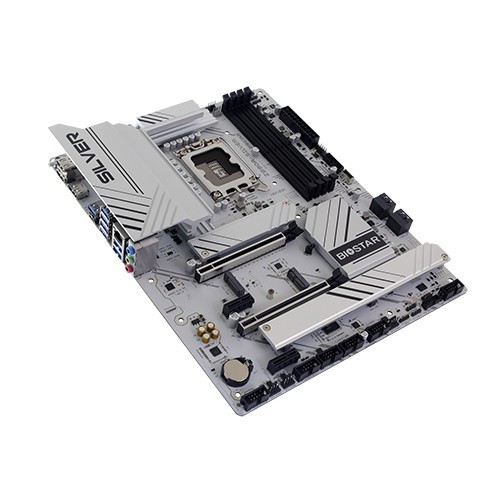

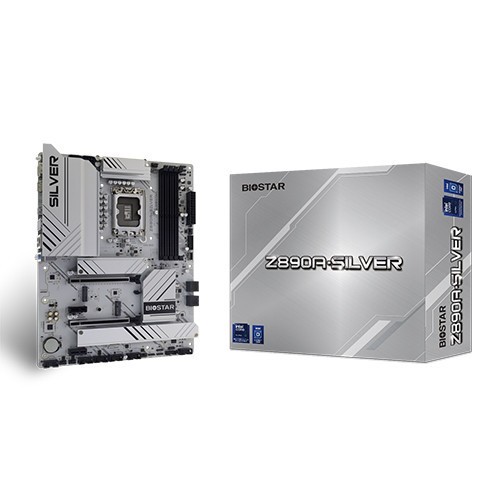

Mainboard BIOSTAR Z890A-SILVER DDR5

Tên Hãng

Mainboard BIOSTAR

Model

Z890A-SILVER

CPU hỗ trợ

Intel

Chipset

Intel Z890

RAM hỗ trợ

Supports Dual Channel DDR5 - 9066+(OC) MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Memory

4 x DDR5 DIMM Memory Slot, Max. Supports up to 256 GB Memory

Support Intel® Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

Intel Core Ultra Processors
1 x PCIe 5.0 x16 Slot (x16 mode)
Intel Z890 Chipset
1 x PCIe 4.0 x16 Slot (x4 mode)
2 x PCIe 3.0 x1 Slot (x1 mode)

Ổ cứng hỗ trợ

Total supports 4 x M.2 socket and 4 x SATA III (6Gb/s) ports
Intel Core Ultra Processors
1 x M.2 (M Key) Socket (M2M_CPU_1):
Supports M.2 Type 2280 SSD module
Supports PCIe 5.0 x4 (128Gb/s) - NVMe SSD
1 x M.2 (M Key) Socket (M2M_CPU_2):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
Intel Z890 Chipset
1 x M.2 (M Key) Socket (M2M_SB_1):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
1 x M.2 (M Key) Socket (M2M_SB_2):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
4 x SATA III Connector (6Gb/s):
Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology

Cổng kết nối (Internal)

4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® GEN2 CNVi
1 x USB 3.2 (Gen2) Type-C Header
(each header supports 1 USB 3.2 (Gen2) Type-C ports)
1 x USB 3.2 (Gen2) Header
(each header supports 2 USB 3.2 (Gen2) ports)
2 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
2 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
4 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt Header
4 x LED Header (5V)
1 x LED Header (12V)

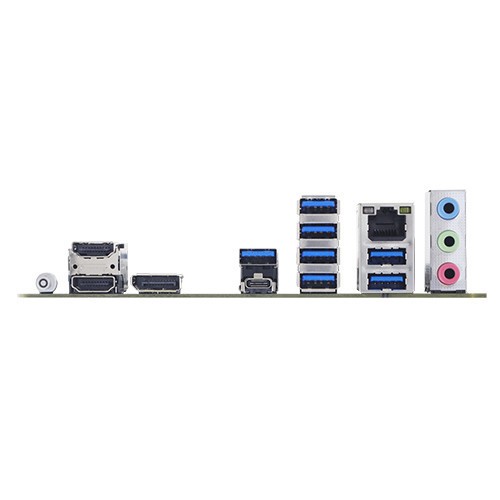

Cổng kết nối (Back Panel)

2 x WIFI Antenna Ports
1 x HDMI Port (HDMI2.1)
1 x HDMI Port (HDMI1.4b)
1 x DP Port (DP1.2)
1 x USB 3.2 (Gen2) Type-C Port
7 x USB 3.2 (Gen2) Ports
1 x 2.5 Gigabit LAN port
3 x Audio Jack
1 x SMART BIOS UPDATE Button
1 x SMART BIOS USB Port

LAN / Wireless

Realtek RTL8125D
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

USB

2 x USB 3.2 (Gen2) Type-C port

(1 on rear I/O and 1 via internal header)

9 x USB 3.2 (Gen2) port

(7 on rear I/O and 2 via internal header)

4 x USB 2.0 port

(4 via internal header)

Kích cỡ

24.4cm x 30.5cm ( W x L )

Xuất xứ

Trung Quốc
