Mainboard Colorful Battle-AX A520M-K M.2 V14

Danh mục sản phẩm

Thông số sản phảm

  • Socket: AMD AM4
  • Form Factor: M-ATX
  • Chipset: AMD A520
  • Số Khe Cắm Ram: 2 khe DDR4

Xem thêm

Mainboard Colorful Battle-AX A520M-K M.2 V14

Mã SP: MB0000678
Đánh giá: 0
Bình luận: 0
Lượt xem: 23
Bảo hành: 36 tháng
Tình trạng: Còn hàng
Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

1.350.000đ

1.990.000₫
Tiết kiệm 640.000đ

Số lượng:

+

Thêm vào giỏ hàng

Sản phẩm còn hàng tại

Showroom Miền Bắc:

Showroom Miền Nam:

Yên tâm mua hàng

Cam kết giá tốt nhất thị trường.

Sản phẩm mới 100%.

Lỗi 1 đổi 1 ngay lập tức.

Hỗ trợ trả góp - Thủ tục nhanh gọn.

Khách hàng Minh Hiếu (036 856 xxxx)

Đã mua hàng 2 giờ trước

Khách hàng Tuấn Anh (035 348 xxxx)

Đã mua hàng 1 giờ trước

Khách hàng Tuyết (097 478 xxxx)

Đã mua hàng 30 phút trước

Khách hàng Nguyễn Việt (037 204 xxxx)

Đã mua hàng 25 phút trước

Khách hàng Hoàng Hùng (096 859 xxxx)

Đã mua hàng 20 phút trước

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

5
0 đánh giá
4
0 đánh giá
3
0 đánh giá
2
0 đánh giá
1
0 đánh giá

Bạn đánh giá sao sản phẩm này

Hỏi và đáp

Đính kèm ảnh

Thông số kỹ thuật

Model BATTLE-AX A520M-K M.2 V14
Product Series BATTLE-AX series
Chipset AMD A520
Processor Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
(* Please visit www.colorful.cn for the latest memory compatibility list)
Memory 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory)
- Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices
- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)

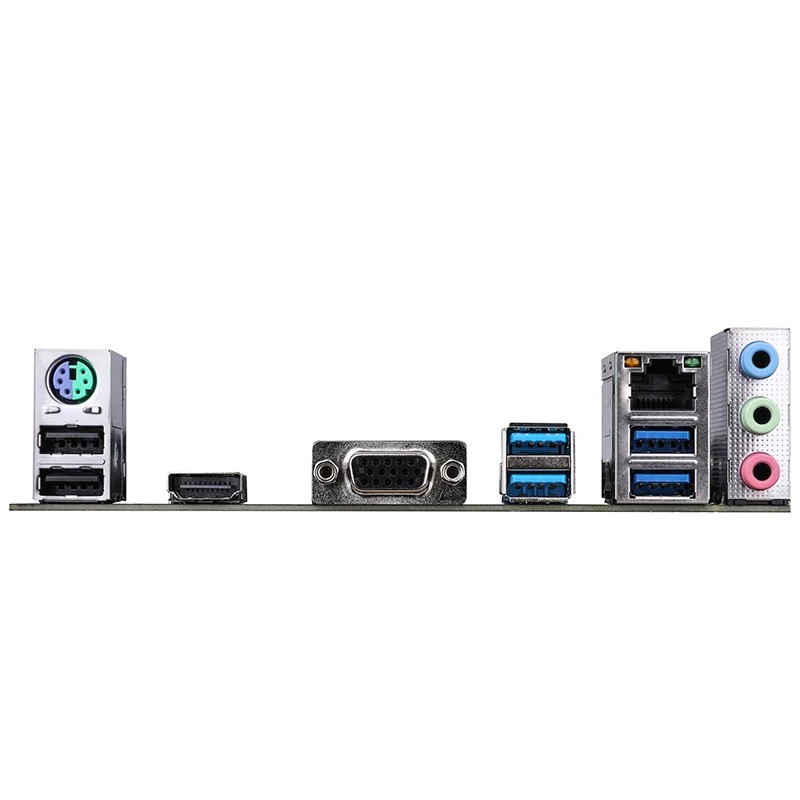

Board I/O Rear I/O :
-2×USB 2.0 interfaces
-4×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
-1×VGA interface
-1×PS/2 interface
-1×Gigabit network interface
-3×Audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-1×System fan pin
-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×Debug light pin
-1×USB live control jumper
Expansion Slots 1×PCIe 3.0 x16 slot
1×PCIe 3.0 x1 slot
BIOS 128M UEFI, support multiple languages
Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8111H Gigabit Network Card
Audio Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Configuration M-ATX
230mm x 197mm
Xem đầy đủ thông số kỹ thuật
