Thông số kỹ thuật

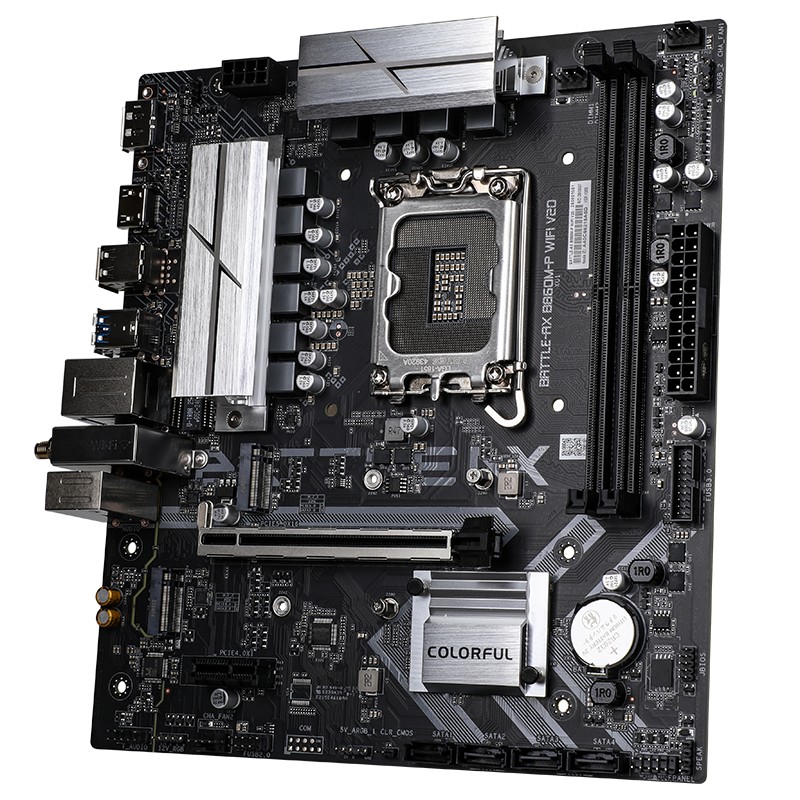

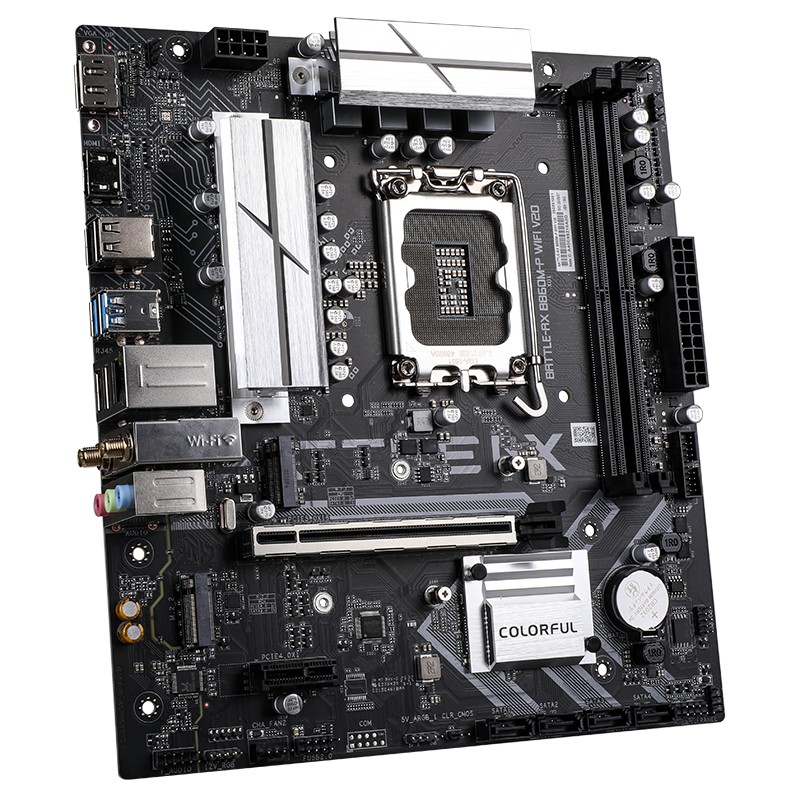

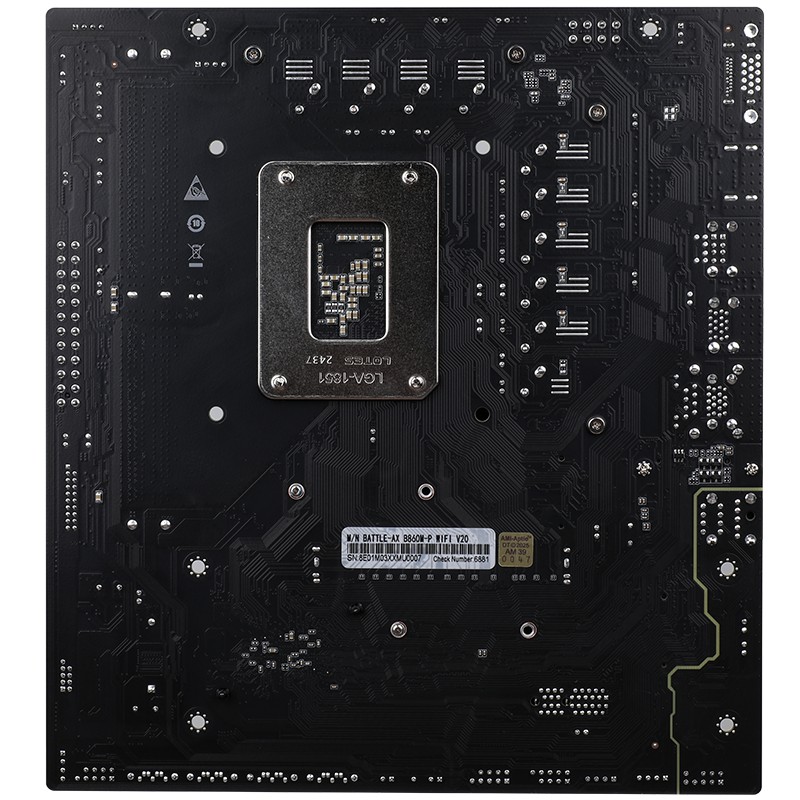

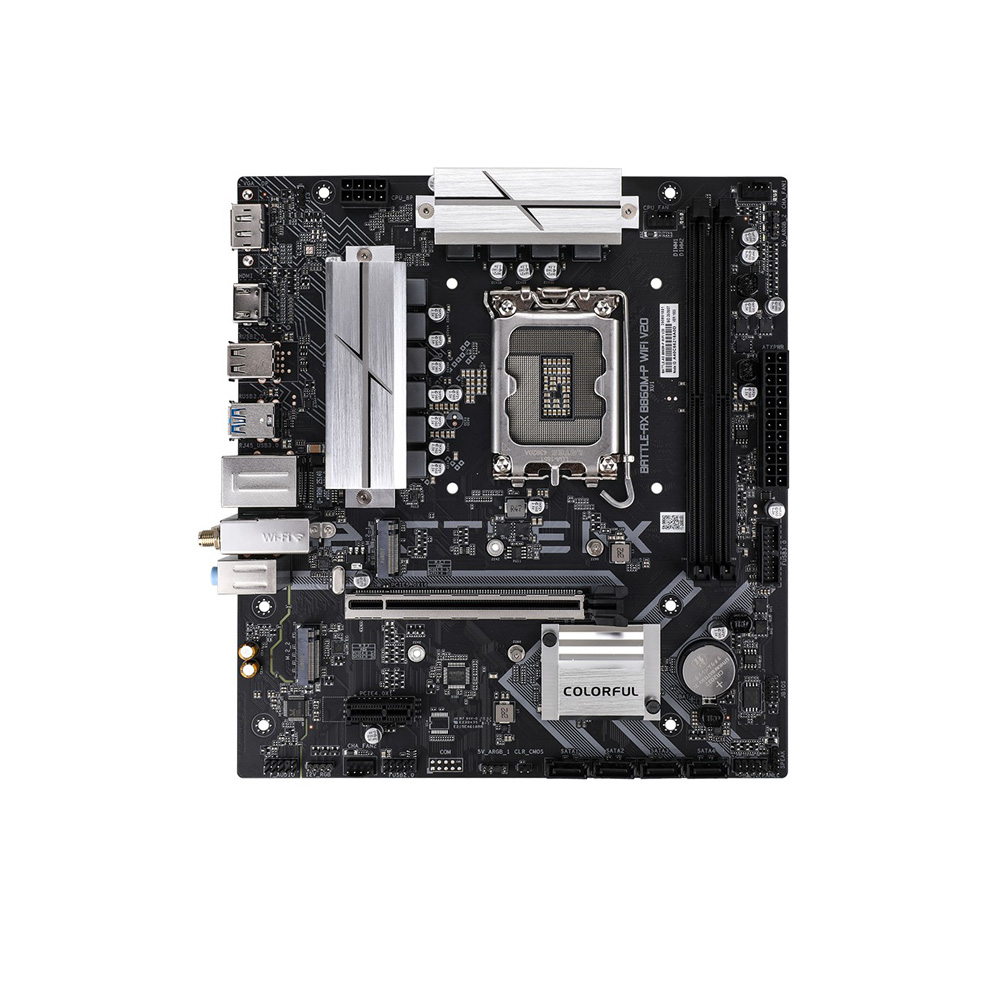

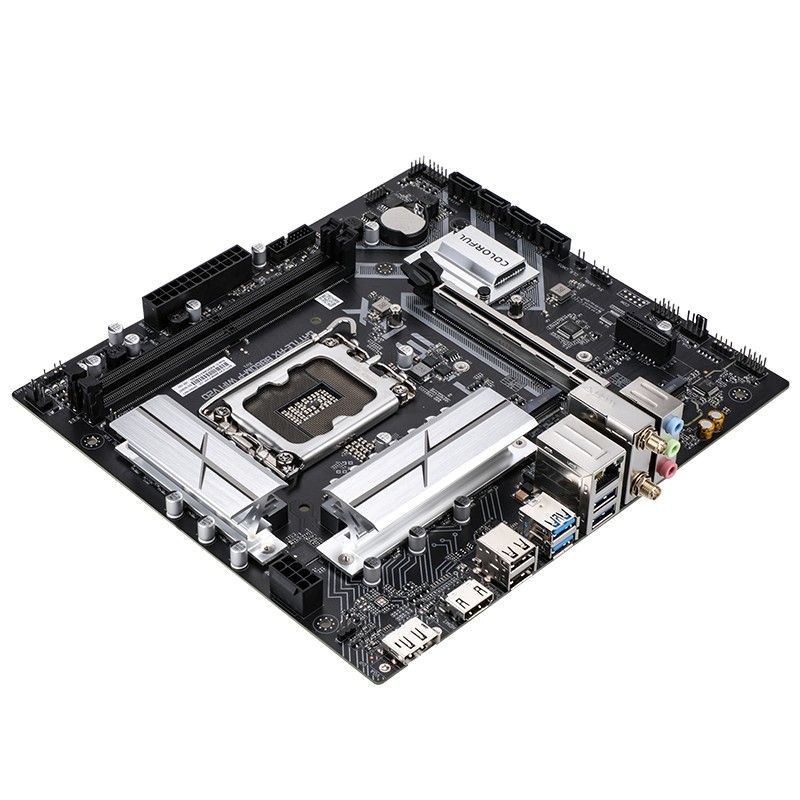

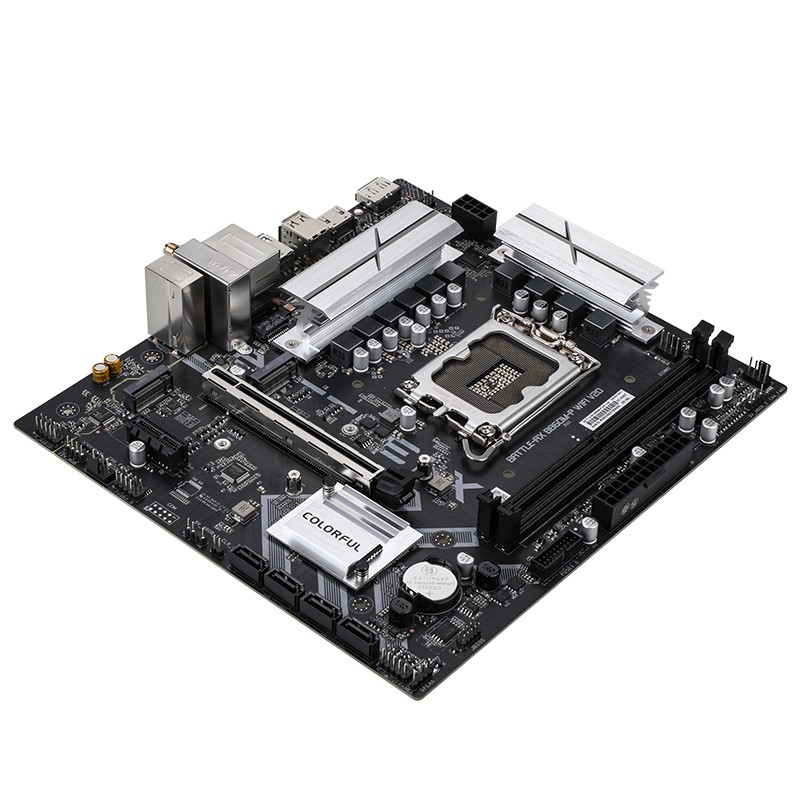

Model	BATTLE-AX B860M-P WIFI V20
Product Series	BATTLE-AX Series
Chipset	Intel B860
Processor	Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard (*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list)
Memory	2 DDR5 memory slots, supporting up to 96 GB of memory (a single slot can support a capacity of up to 48 GB) - Support DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory - Support Intel® Extreme Memory Profile (XMP) memory technology - Support dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports	3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: support 2242/2280 M.2 SSD (PCIe 5.0 x4, CPU channel) - M.2_2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, Chipset channel)

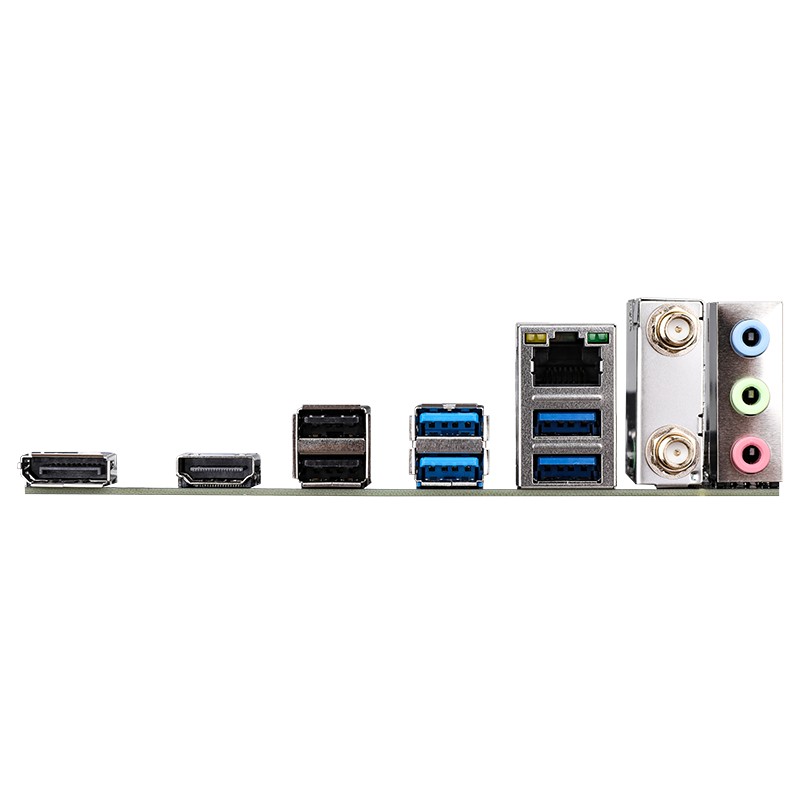

Board I/O	Rear I/O: - 2×USB 2.0 interfaces - 4×USB 3.2 Gen 1 5Gbps Type-A interfaces - 1×DP 1.4 interface, Supports up to 8K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×Gigabit network interface - 2×Wi-Fi 6 antenna interfaces - 3×Audio interfaces On board: - 1×USB 2.0 pins can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces - 1×CPU fan pin - 2×System fan pins - 2×5V 3-pin ARGB pins - 1×12V 4-pin RGB pin - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×BIOS burner pin -1×Clear CMOS jumper
Expansion Slots	1×PCIe 5.0 x16 slot 1×PCIe 4.0 x1 slot
BIOS	256M UEFI，support multiple languages
Power Management	Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor	CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control and Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN	RTL8111H Gigabit Ethernet AX101 WiFi 6 wireless network card, Bluetooth 5.2
Audio	Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Configuration	M-ATX 230mm x 210 mm
