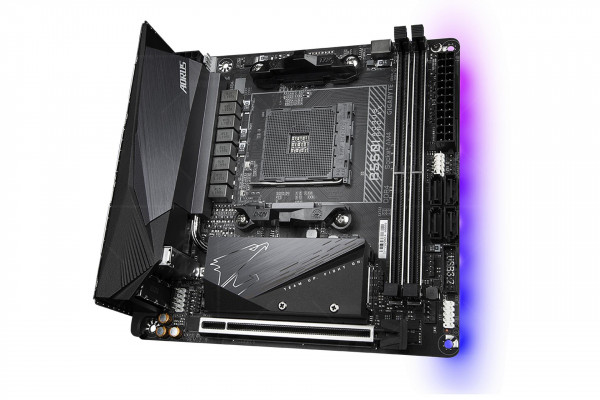

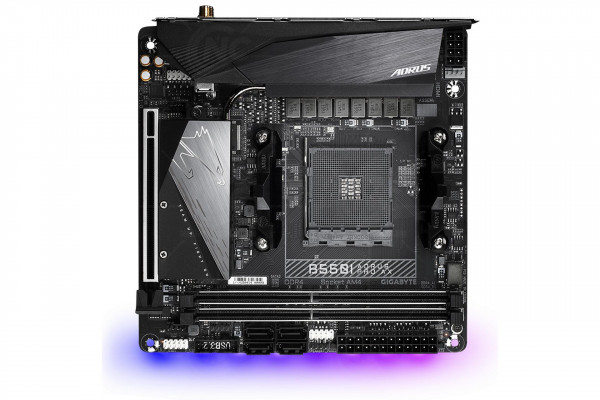

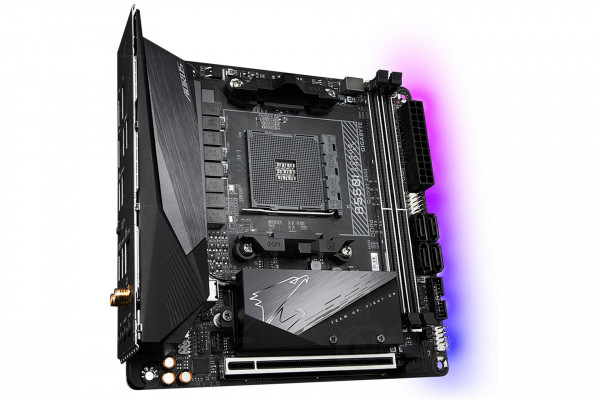

Mainboard Gigabyte B550I AORUS PRO AX

Realtek^® ALC1220-VB codec
* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Intel^® Wi-Fi 6 AX200

WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode

New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
- Supporting SATA and PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10

CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

2 x USB 2.0/1.1 ports available through the internal USB header

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

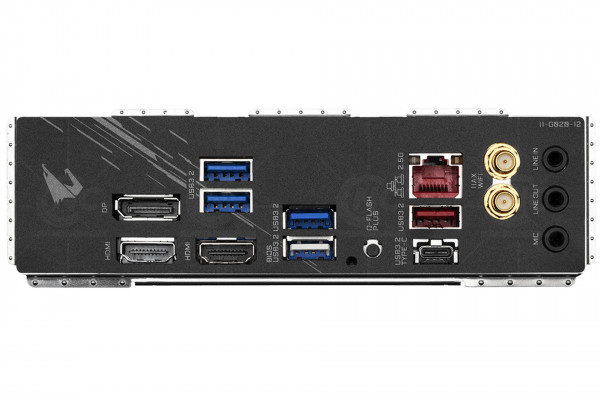

1 x DisplayPort

2 x HDMI ports

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

1 x USB Type-C™ port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for APP Center

* Các ứng dụng có sẵn trong Trung tâm APP có thể thay đổi theo mô hình bo mạch chủ. Các chức năng được hỗ trợ của từng ứng dụng cũng có thể khác nhau tùy thuộc vào thông số kỹ thuật của bo mạch chủ.

@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Mini-ITX Form Factor; 17.0cm x 17.0cm
