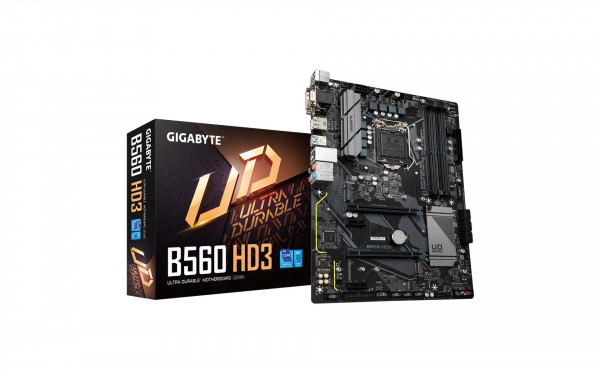

Mainboard Gigabyte B560 HD3

Loại sản phẩm

CPU hỗ trợ

LGA1200 package:
1.    11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2.    10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
3.    L3 cache varies with CPU

Chipset

RAM hỗ trợ

1.    11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2.    10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
3.    10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4.    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5.    Dual channel memory architecture
6.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7.    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8.    Support for Extreme Memory Profile (XMP) memory modules

Cổng xuất hình onboard

Âm Thanh

1.    Realtek® Audio CODEC
2.    High Definition Audio
3.    2/4/5.1/7.1-channel
4.    Support for S/PDIF Out

LAN

Khe cắm mở rộng

1.    1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
2.    1 x PCI Express x16 slot, running at x4 (PCIEX4)
3.    2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Ổ cứng hỗ trợ

CPU:
1.    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

Chipset:
1.    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
2.    6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
* System Acceleration with Intel® Optane™ Memory enabled on the M2P_CPU connector only.

USB

Chipset:
1.    6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2.    6 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:
1.    2 x USB 2.0/1.1 ports on the back panel

Cổng kết nối (I/O bên trong)

1.    1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.    1 x CPU fan header
4.    1 x water cooling CPU fan header
5.    3 x system fan headers
6.    1 x addressable LED strip header
7.    1 x RGB LED strip header
8.    2 x M.2 Socket 3 connectors
9.    6 x SATA 6Gb/s connectors
10.    1 x front panel header
11.    1 x front panel audio header
12.    1 x USB 3.2 Gen 1 header
13.    3 x USB 2.0/1.1 headers
14.    1 x S/PDIF Out header
15.    2 x Thunderbolt™ add-in card connectors
16.    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17.    1 x serial port header
18.    1 x parallel port header
19.    1 x Clear CMOS jumper
20.    1 x Q-Flash Plus button

Cổng kết nối (I/O Phía sau)

1.    2 x USB 2.0/1.1 ports
2.    1 x PS/2 keyboard/mouse port
3.    1 x D-Sub port
4.    1 x DVI-D port
5.    1 x DisplayPort
6.    1 x HDMI port
7.    4 x USB 3.2 Gen 1 ports
8.    1 x RJ-45 port
9.    6 x audio jacks

iTE^® I/O Controller Chip

BIOS

1.    1 x 256 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1.    Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.    Support for Q-Flash Plus
3.    Support for Q-Flash
4.    Support for Xpress Install

1.    Norton® Internet Security (OEM version)
2.    Realtek® 8118 Gaming LAN Bandwidth Control Utility

Kích cỡ

ATX Form Factor; 30.5cm x 22.5cm
