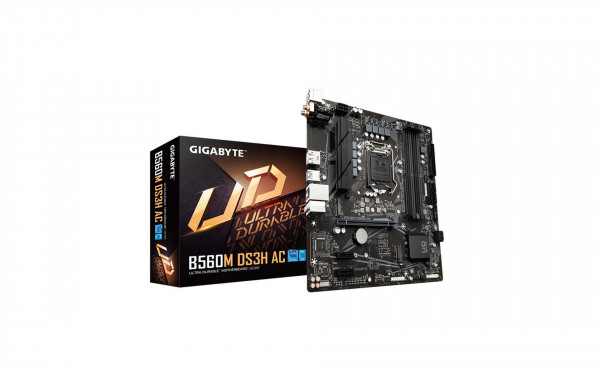

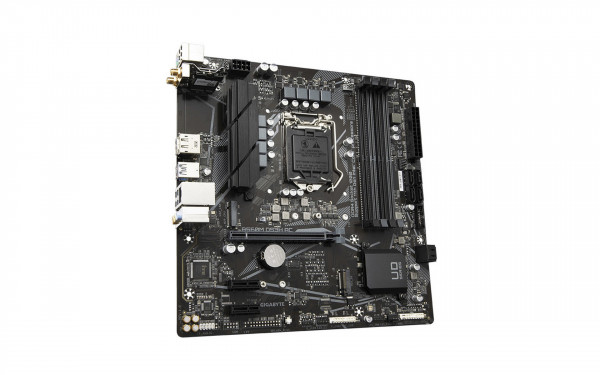

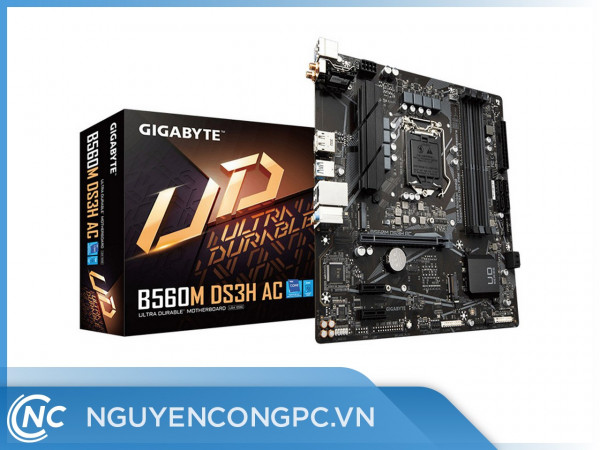

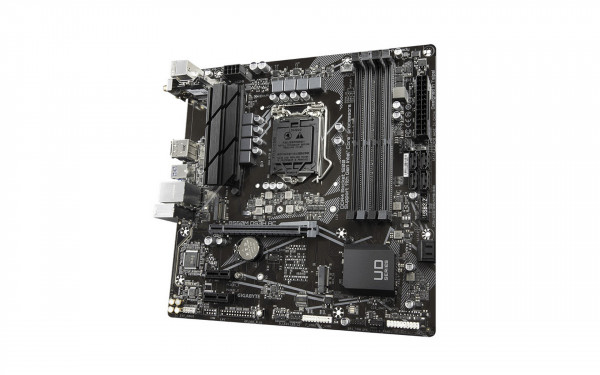

Mainboard Gigabyte B560M DS3H AC

Loại sản phẩm

CPU hỗ trợ

LGA1200 package:
1.    11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2.    10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
3.    L3 cache varies with CPU

Chipset

RAM hỗ trợ

1.    11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2.    10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
3.    10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4.    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5.    Dual channel memory architecture
6.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7.    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8.    Support for Extreme Memory Profile (XMP) memory modules

Cổng xuất hình onboard

Integrated Graphics Processor-Intel® HD Graphics support:
1.    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
2.    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.3

Âm Thanh

1.    Realtek® Audio codec
2.    High Definition Audio
3.    2/4/5.1/7.1-channel

LAN

Khe cắm mở rộng

1.    1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
2.    2 x PCI Express x1 slots
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)

Ổ cứng hỗ trợ

CPU:
1.    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

Chipset:
1.    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
2.    6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
* System Acceleration with Intel® Optane™ Memory enabled on the M2P_CPU connector only.

USB

Chipset:
1.    1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
2.    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3.    4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:
1.    2 x USB 2.0/1.1 ports on the back panel

Cổng kết nối (I/O bên trong)

1.    1 x 24-pin ATX main power connector
2.    1 x 8-pin ATX 12V power connector
3.    1 x CPU fan header
4.    3 x system fan headers
5.    1 x addressable LED strip header
6.    1 x RGB LED strip header
7.    6 x SATA 6Gb/s connectors
8.    2 x M.2 Socket 3 connectors
9.    1 x front panel header
10.    1 x front panel audio header
11.    1 x USB 3.2 Gen 1 header
12.    2 x USB 2.0/1.1 headers
13.    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14.    1 x Clear CMOS jumper
15.    1 x Q-Flash Plus button

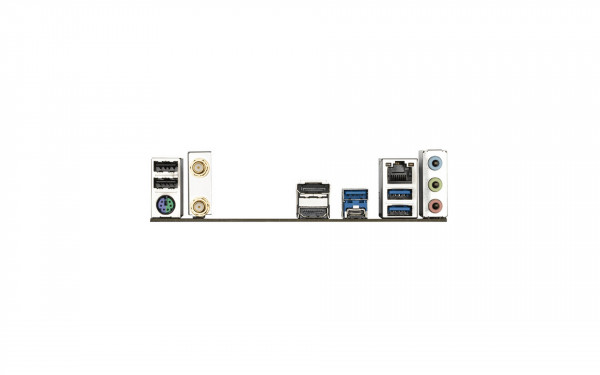

Cổng kết nối (I/O Phía sau)

1.    2 x USB 2.0/1.1 ports
2.    1 x PS/2 keyboard/mouse port
3.    2 x SMA antenna connectors (1T1R)
4.    1 x DisplayPort
5.    1 x HDMI port
6.    3 x USB 3.2 Gen 1 ports
7.    1 x USB Type-C® port, with USB 3.2 Gen 1 support
8.    1 x RJ-45 port
9.    3 x audio jacks

iTE^® I/O Controller Chip

BIOS

1.    1 x 256 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1.    Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.    Support for Q-Flash Plus
3.    Support for Q-Flash
4.    Support for Xpress Install

1.    Norton® Internet Security (OEM version)
2.    Realtek® 8118 Gaming LAN Bandwidth Control Utility

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
