Thông số sản phẩm

ocket: Intel LGA 1700, hỗ trợ Core i9/i7/i5/i3 thế hệ 12/13/14
Chipset: Intel B760
RAM: 4 khe DDR5, Dual Channel, hỗ trợ XMP
Lưu trữ: 2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s
Đồ họa & Mở rộng: 1 x PCIe 5.0 x16 (EZ-Latch, UD Slot), HDMI, DP
Kết nối: LAN 2.5GbE, Wi-Fi 6E, USB-C 10Gb/s

Xem thêm

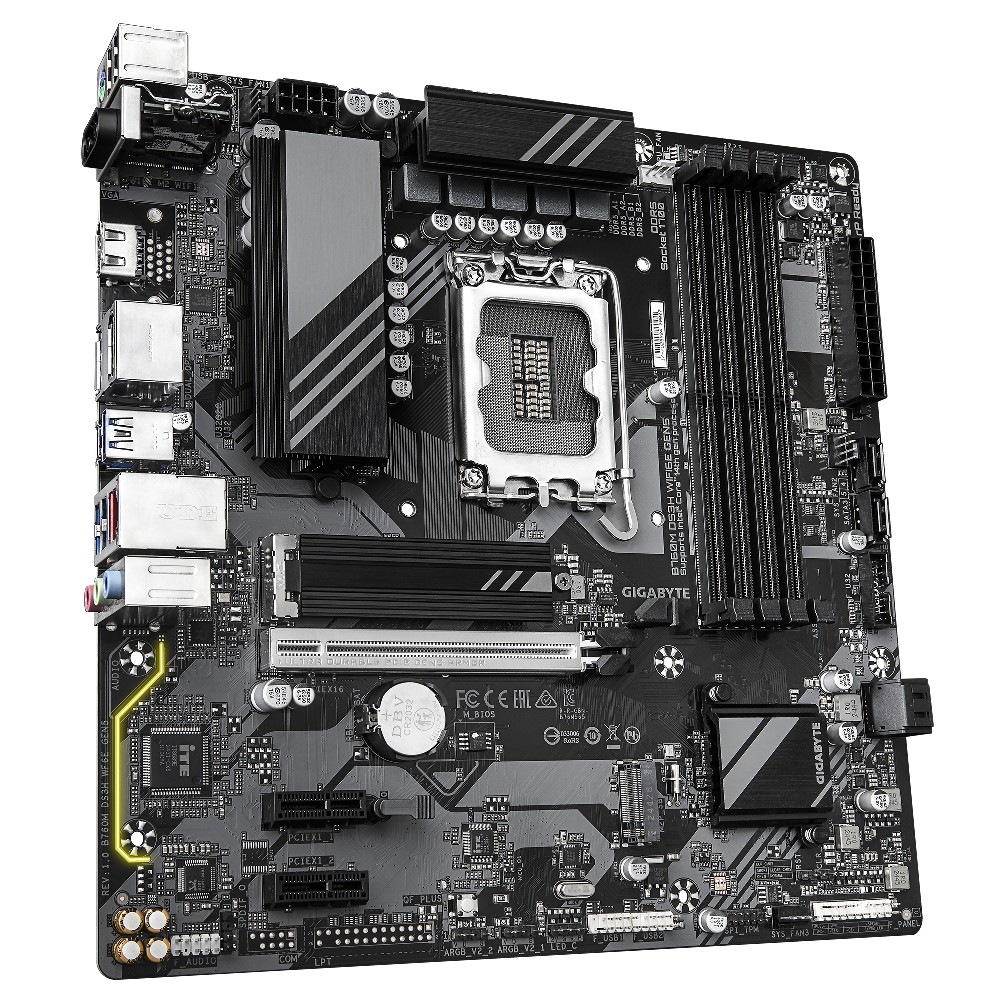

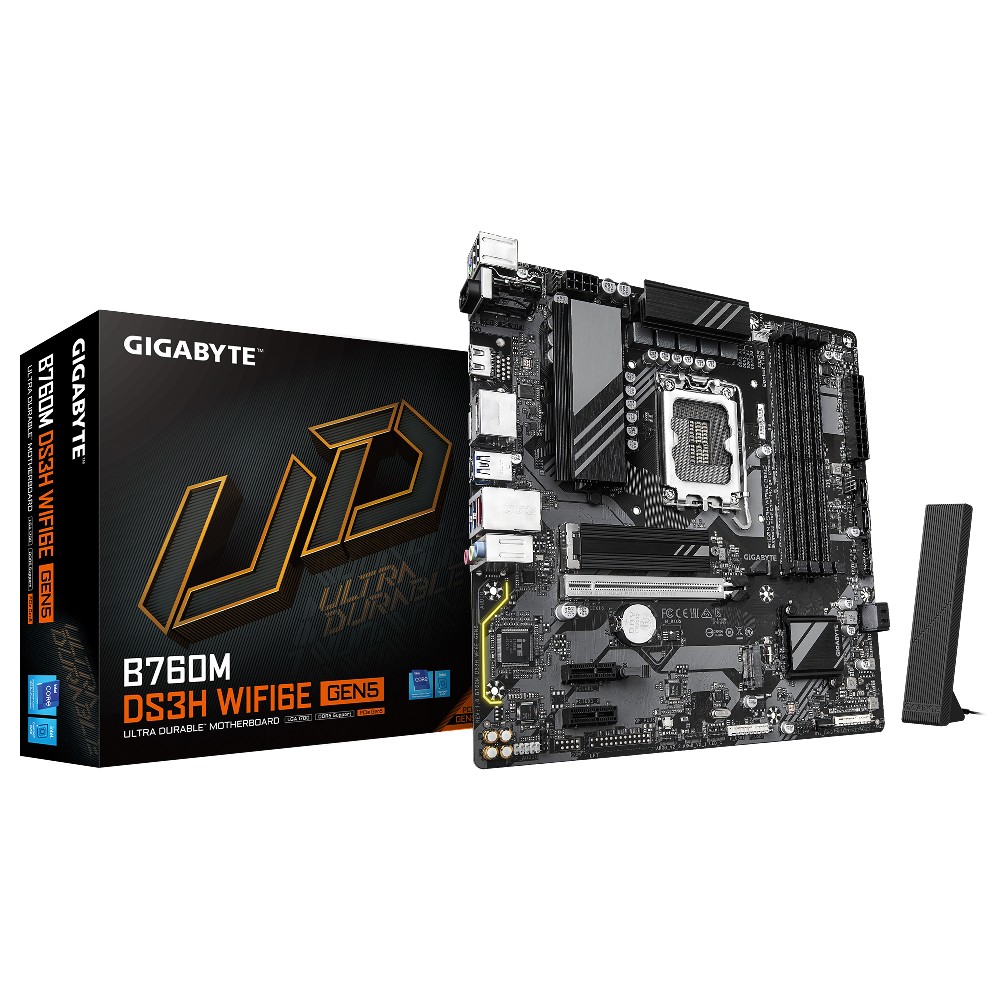

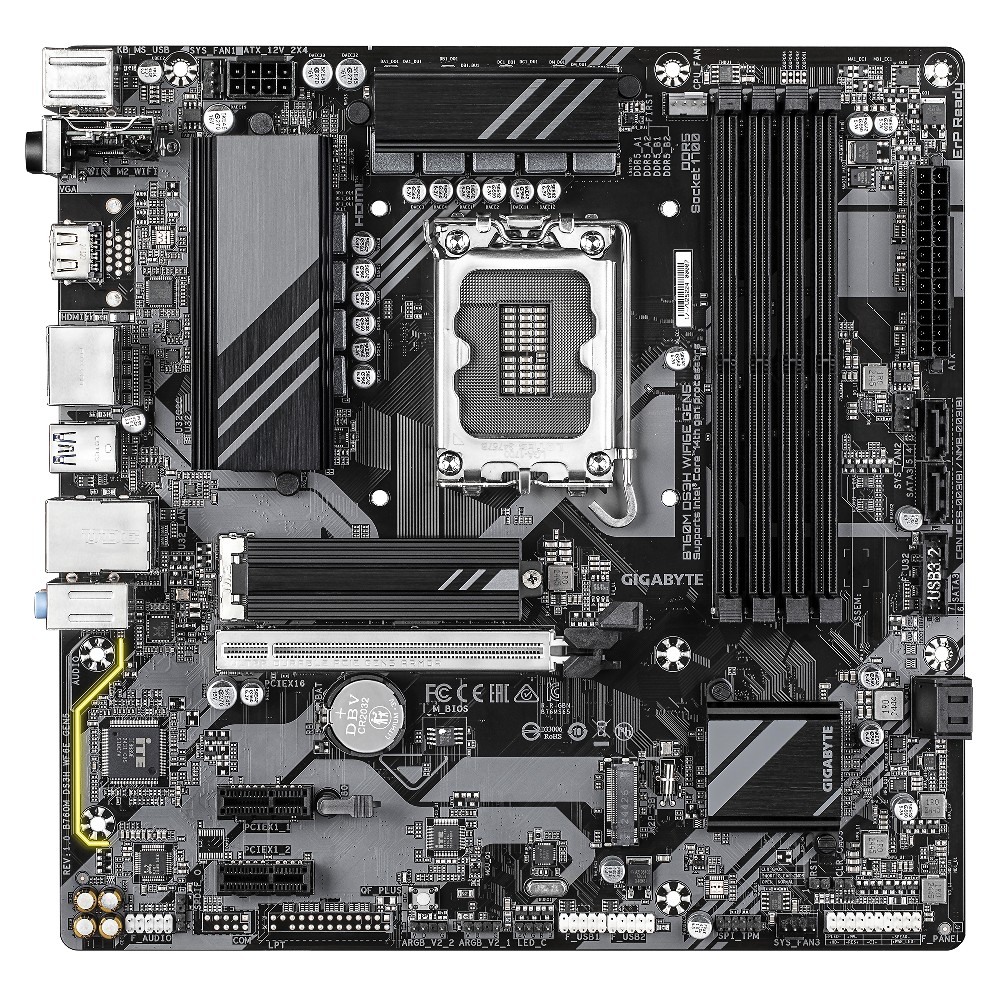

Mainboard Gigabyte B760M DS3H WIFI6E GEN5

Name: Mainboard Gigabyte B760M DS3H WIFI6E GEN5
Brand: Gigabyte
SKU: MB0000726
Availability: InStock
Rating: 4.7 (46 reviews)

Mã SP: MB0000726

Đánh giá: 0

Bình luận: 0

Bảo hành: 36 tháng

Tình trạng: Còn hàng

Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

3.690.000đ

4.590.000₫

Tiết kiệm 900.000đ

Số lượng:

−

Thêm vào giỏ hàng

ĐẶT MUA NGAY Giao hàng tận nơi nhanh chóng TRẢ GÓP QUA HỒ SƠ Chỉ từ 2.665.000₫/ tháng TRẢ GÓP QUA THẺ Chỉ từ 1.332.500₫/ tháng

Yên tâm mua hàng

Cam kết giá tốt nhất thị trường.

Sản phẩm mới 100%.

Lỗi 1 đổi 1 ngay lập tức.

Hỗ trợ trả góp - Thủ tục nhanh gọn.

Khách hàng Quốc Trung (086 236 xxxx)

Đã mua hàng 2 giờ trước

Khách hàng Minh Hiếu (035 358 xxxx)

Đã mua hàng 1 giờ trước

Khách hàng Nguyễn Hằng (097 478 xxxx)

Đã mua hàng 30 phút trước

Khách hàng Hoàng Tuấn Ngọc (037 264 xxxx)

Đã mua hàng 25 phút trước

Khách hàng Thị Vân (096 869 xxxx)

Đã mua hàng 20 phút trước

Bình luận và đánh giá

0/5

0 đánh giá và nhận xét

0 đánh giá

Bạn đánh giá sao sản phẩm này

Đánh giá ngay

Xem thêm đánh giá

Hỏi và đáp

Gửi Gửi

Đính kèm ảnh

Thông số kỹ thuật

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel^® B760 Express Chipset
Bộ nhớ	14th and 13th Generation Intel^® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Card đồ họa tích hợp	Integrated Graphics Processor-Intel^® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Âm thanh	Realtek^® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel^® Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Giao diện lưu trữ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Kết nối I/O bên trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

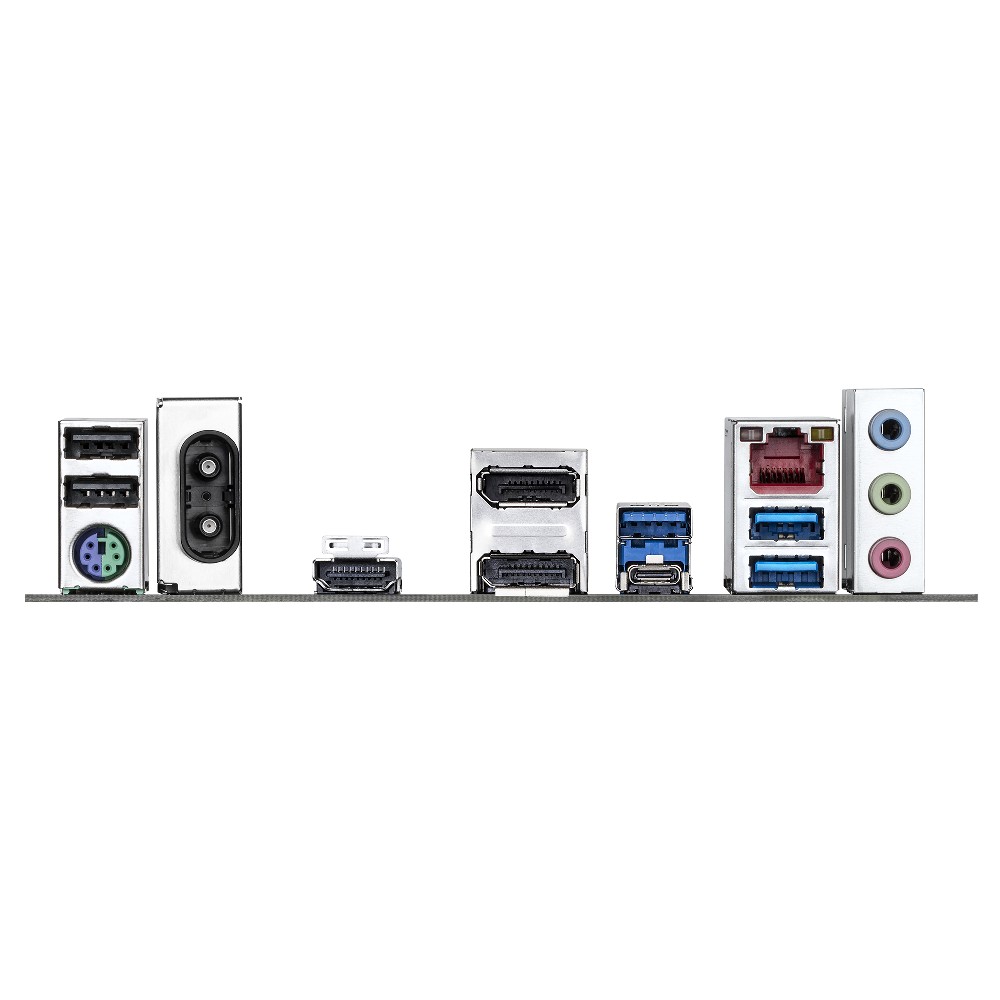

Kết nối bảng phía sau	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C^® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Điều khiển I/O	iTE^® I/O Controller Chip
Theo dõi phần cứng	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Gói phần mềm	Norton^® Internet Security (OEM version)
Hệ điều hành	Support for Windows 11 64-bit Support for Windows 10 64-bit
Hệ số khuôn	Micro ATX Form Factor; 24.4cm x 24.4cm

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel^® B760 Express Chipset
Bộ nhớ	14th and 13th Generation Intel^® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Card đồ họa tích hợp	Integrated Graphics Processor-Intel^® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Âm thanh	Realtek^® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel^® Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Giao diện lưu trữ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Kết nối I/O bên trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Kết nối bảng phía sau	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C^® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Điều khiển I/O	iTE^® I/O Controller Chip
Theo dõi phần cứng	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Gói phần mềm	Norton^® Internet Security (OEM version)
Hệ điều hành	Support for Windows 11 64-bit Support for Windows 10 64-bit
Hệ số khuôn	Micro ATX Form Factor; 24.4cm x 24.4cm

Xem đầy đủ thông số kỹ thuật
