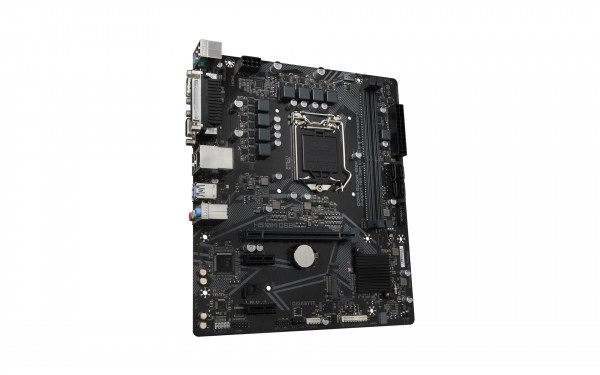

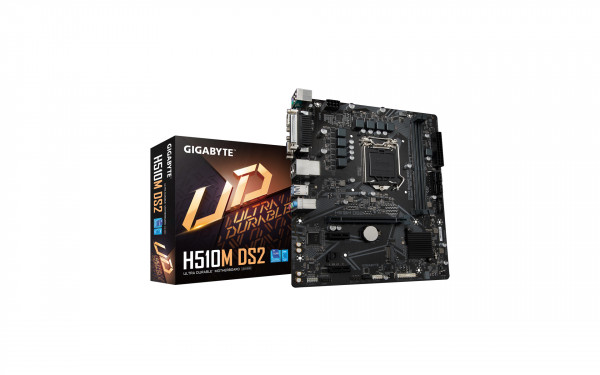

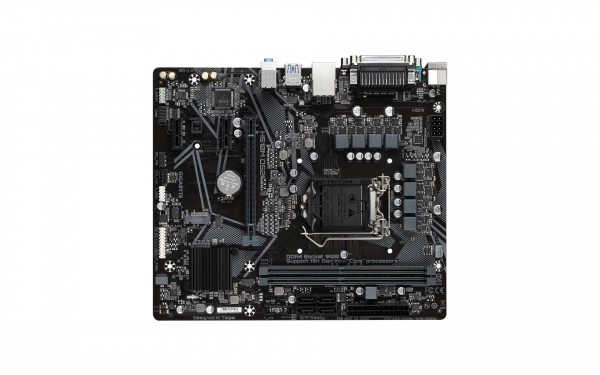

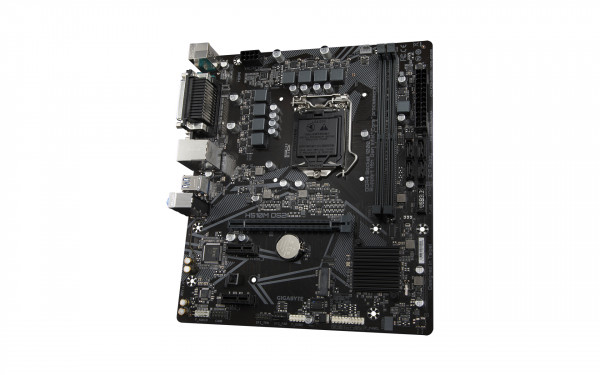

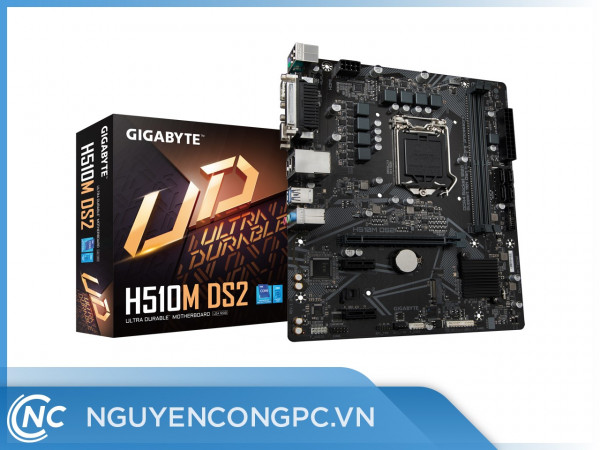

Mainboard Gigabyte H510M-DS2

CPU hỗ trợ

Chipset

1.    Intel® H510 Express Chipset

RAM hỗ trợ

1.    11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2.    10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
3.    10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4.    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5.    Dual channel memory architecture
6.    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7.    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8.    Support for Extreme Memory Profile (XMP) memory modules

Âm Thanh

1.    Realtek® Audio CODEC
2.    High Definition Audio
3.    2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

1.    Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

1.    1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
2.    2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 3.0 standard.)

Lưu trữ

Chipset:
1.    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
* The PCIEX1_1 slot shares bandwidth with the M.2 slot. When the PCIEX1_1 slot is populated, the M.2 slot will operate at up to PCIe 3.0 x2 SSD.
2.    4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

Chipset:
1.    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2.    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Cổng kết nối I/O bên trong

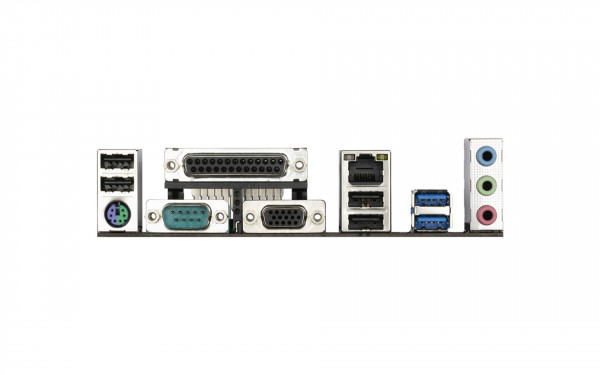

Cổng kết nối I/O Phía sau

1.    1 x PS/2 keyboard/mouse port
2.    1 x serial port header
3.    1 x parallel port header
4.    1 x D-Sub Port
5.    2 x USB 3.2 Gen 1 ports
6.    4 x USB 2.0/1.1 ports
7.    1 x RJ-45 port
8.    3 x audio jacks

iTE^® I/O Controller Chip

1.    Voltage detection
2.    Temperature detection
3.    Fan speed detection
4.    Overheating warning
5.    Fan fail warning
6.    Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

1.    1 x 256 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1.    Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
2.    Support for Q-Flash
3.    Support for Xpress Install

1.    Norton® Internet Security (OEM version)
2.    Realtek® 8118 Gaming LAN Bandwidth Control Utility

Support for Windows 10 64-bit

Micro ATX Form Factor; 24.4cm x 24.4cm
