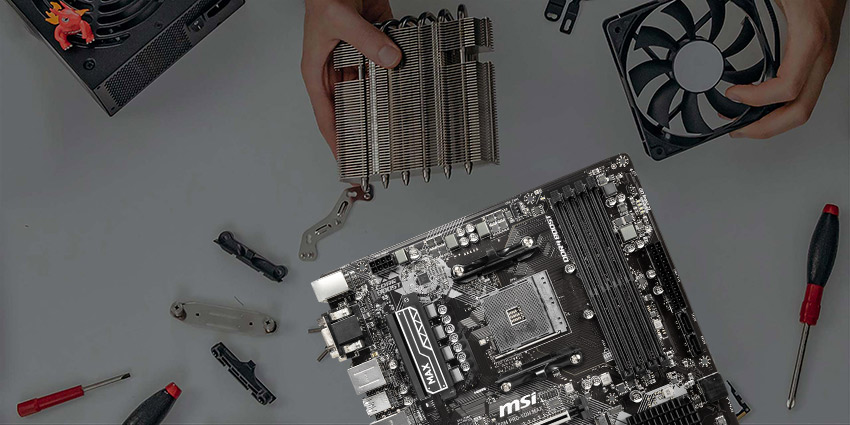

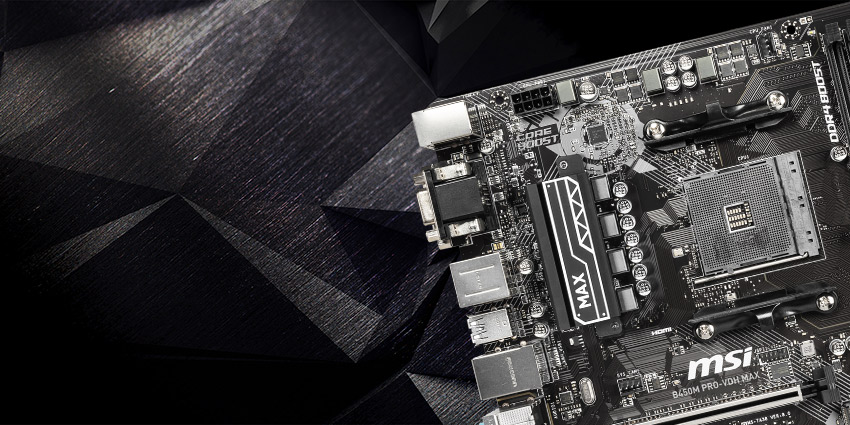

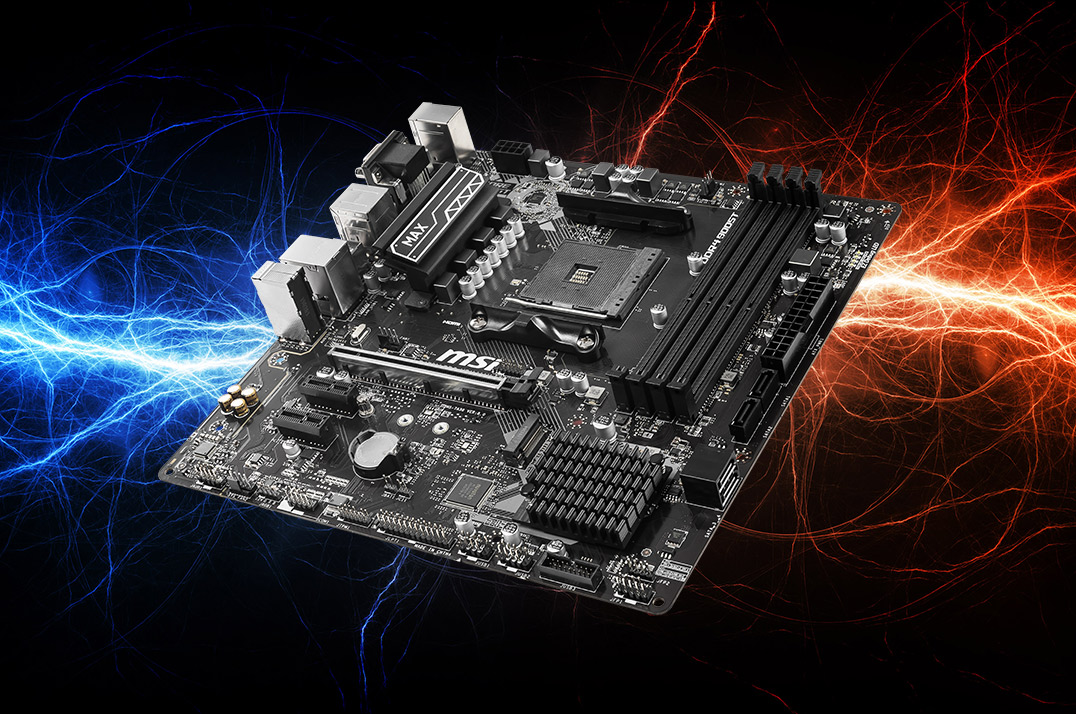

Mainboard MSI B450M PRO-VDH MAX

1.950.000 đ

Còn hàng 36 Tháng Gọi điện thoại đặt mua: 0971113333
  • Hỗ trợ tư vấn lắp đặt trong nội thành Hà Nội.
  • Hỗ trợ mua hàng trả góp.
  • Hỗ trợ cài đặt các phần mềm đồ họa.
  • Được tham gia các chương trình giảm giá sốc.

Giới thiệu sản phẩm

Thông số kỹ thuật

Sản phẩm Mainboard - Bo mạch chủ
Tên Hãng MSI
Model B450M PRO-VDH MAX
CPU hỗ trợ Supports 1st, 2nd and 3rd Gen AMD® Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD® Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset AMD B450
RAM hỗ trợ 2 x DDR4 memory slots, support up to 32GB Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
Khe cắm mở rộng 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode Athlon™ with Radeon™ Vega Graphics support x4 mode 2 x PCIe 2.0 x1 slots

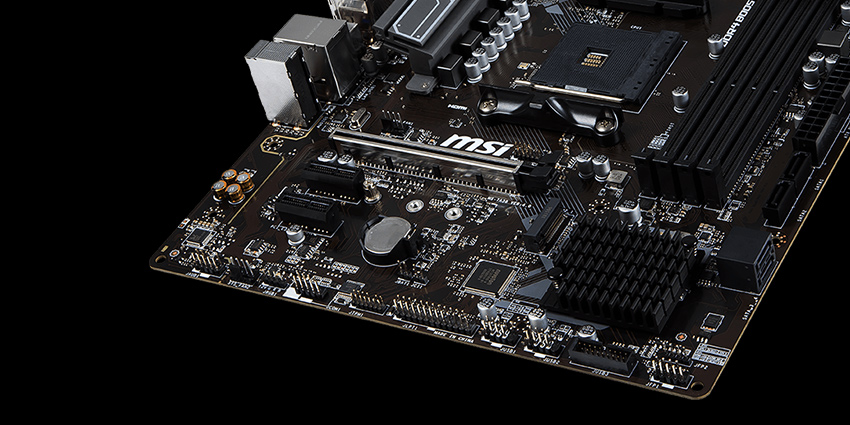

Ổ cứng hỗ trợ 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices

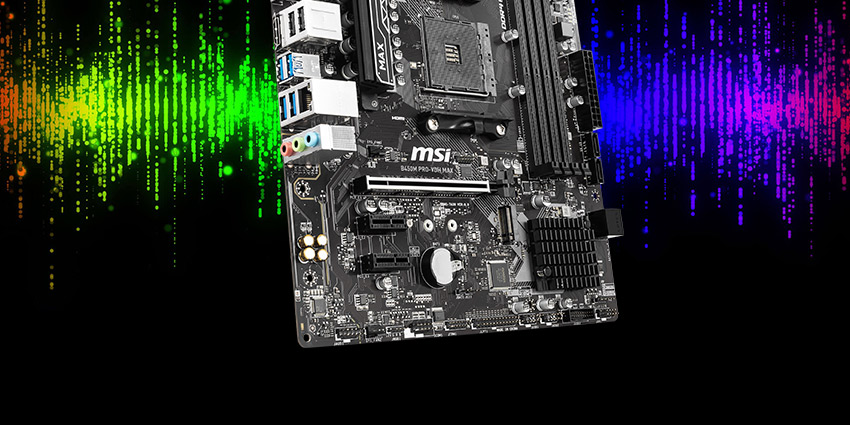

Âm Thanh Realtek® ALC887 Codec 7.1-Channel High Definition Audio
LAN / Wireless 1 x Realtek® 8111H Gigabit LAN controller
Cổng kết nối ( I/O bên trong)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

1 x Front panel audio connector

2 x Front panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial port connector

1 x LED strip connector

1 x Clear CMOS jumper

Cổng kết nối ( I/O Phía sau)

Mouse

VGA Port

USB 2.0

LAN Port

HD Audio Connectors

Keyboard

DVI-D Port

HDMI Port

USB 3.1 Gen1

Kích cỡ

9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)

m-ATX Form Factor
