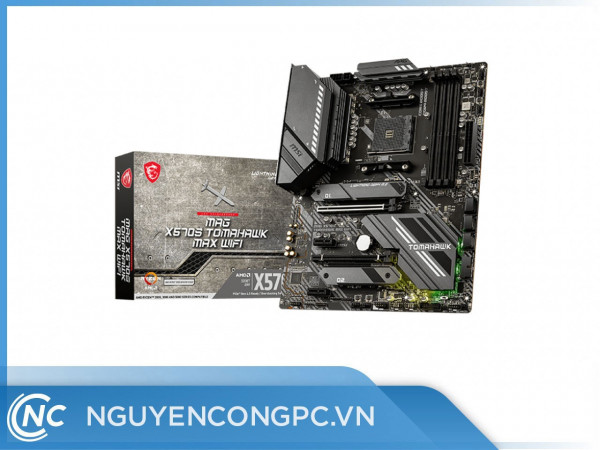

Mainboard MSI MAG X570S Tomahawk Max Wifi

CPU hỗ trợ

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

Supports Socket AM4

Chipset

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB

Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Max overclocking frequency by A-XMP OC mode:

For Ryzen™ 5000 G-Series & 4000 G-Series processors

1DPC 1R Max speed up to 5100 MHz

1DPC 2R Max speed up to 4000 MHz

2DPC 1R Max speed up to 4266 MHz

2DPC 2R Max speed up to 3600 MHz

For Ryzen™ 5000 Series & 3000 Series processors

1DPC 1R Max speed up to 5100 MHz

1DPC 2R Max speed up to 3866 MHz

2DPC 1R Max speed up to 4000 MHz

2DPC 2R Max speed up to 3600 MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports PCIe 4.0 / PCIe 3.0 specification

PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors

1x PCIe x16 slot (From processor)

PCI_E1 supports PCIe 4.0/ 3.0 x16

1x PCIe x16 slot (From X570 chipset)

PCI_E3 supports PCIe 4.0/ 3.0 x4

2x PCIe 3.0 x1 slots (From X570 chipset)

Hình ảnh

1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz

- Available only on processors featuring integrated graphics.

- Graphics specifications may vary depending on the CPU installed.

Supports AMD CrossFire™ Technology

Lưu trữ

6x SATA 6Gb/s ports (from AMD X570 Chipset)

2x M.2 slots (Key M)

Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors

Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor

Supports up to SATA 6Gb/s

M2_1 slot (from Processor)

Support 2280/22110 storage devices

M2_2 slot (from AMD X570 Chipset)

Supports 2242/ 2260/ 2280 storage devices

Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)

4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Âm Thanh

Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz⁽¹⁾ (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.2 ⁽²⁾, FIPS, FISMA

(1) Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.

(2) Bluetooth 5.2 will be ready in WIN10 21H1.

Cổng kết nối I/O bên trong

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x 4-pin CPU fan connector

1x 4-pin water-pump connector

4x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Serial port connector

1x Chassis Intrusion connector

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

1X EZ LED Control switch

Cổng kết nối I/O Phía sau

1.    PS/2 Mouse / Keyboard
2.    Wi-Fi Antenna
3.    USB 3.2 Gen 1 5Gbps (Type-A)
4.    USB 3.2 Gen 2 10Gbps (Type-A)
5.    2.5G LAN Port
6.    HD Audio Connectors
7.    Flash BIOS Button
8.    USB 2.0 Port
9.    HDMI 2.1 Port
10.    USB 3.2 Gen 2 10Gbps (Type-C)
11.    USB 3.2 Gen 2 10Gbps (Type-A)
12.    Optical S/PDIF OUT

Kích cỡ

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
