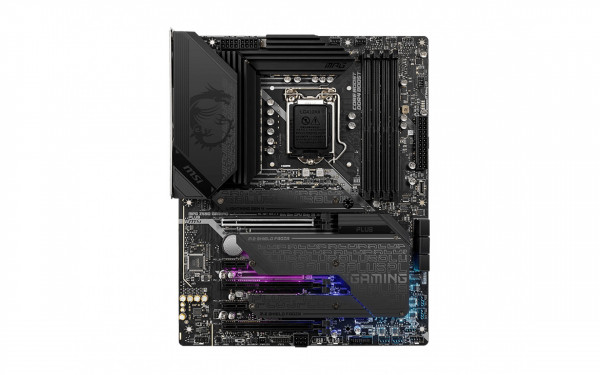

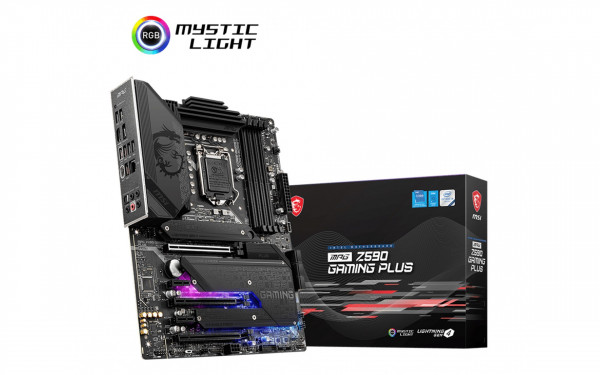

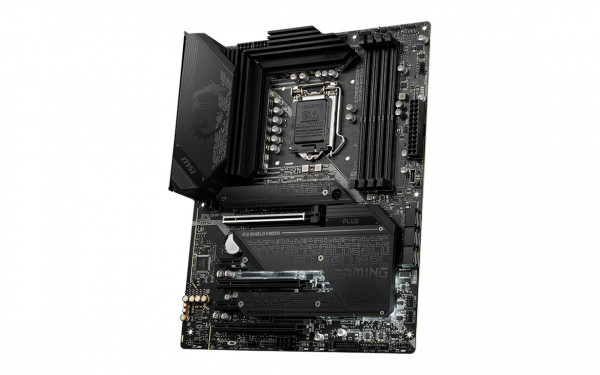

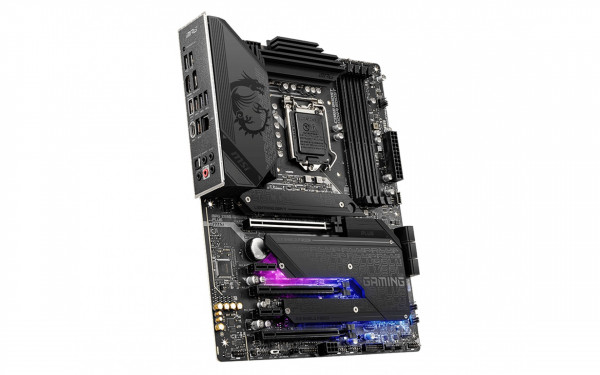

Mainboard MSI MPG Z590 GAMING PLUS

CPU hỗ trợ

Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel ^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors

Processor socket LGA1200

Chipset

RAM hỗ trợ

• 4x DDR4 memory slots, support up to 128GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel ^® CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

• 3x PCIe x16 slots
  • Support x16/x4/x4
  • PCI_E1 (From CPU)
    • Supports up to PCIe 4.0 for 11th Gen Intel^® CPU
    • Supports up to PCIe 3.0 for 10th Gen Intel^® CPU
  • PCI_E3* & PCI_E5 (From Z590 chipset)
    • Support up to PCIe 3.0
• 2x PCIe 3.0 x1 slots (From Z590 chipset)

Hình ảnh

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Chỉ khả dụng trên các bộ xử lý có đồ họa tích hợp.
Thông số kỹ thuật đồ họa có thể khác nhau tùy thuộc vào CPU được cài đặt.

Supports 2-Way AMD^® CrossFire^™ Technology

Lưu trữ

• 6x SATA 6Gb/s ports (From Z590 Chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Available only on 11th Gen Intel^® CPU
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2* & M2_3** slots (From Z590 Chipset)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel^® Optane™ Memory Ready***
• Supports Intel^® Smart Response Technology for Intel Core ^™ processors

* PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

** SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.

*** Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

USB

Intel® Z590 Chipset

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)

4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)

Hub-GL850G

6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)

Âm Thanh

Realtek^® ALC4080

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

1x Intel^® I225-V 2.5Gbps LAN controller

Cổng kết nối (I/O bên trong)

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

1x 6-pin ATX PCIE power connector

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

1x EZ LED Control switch

4x EZ Debug LED

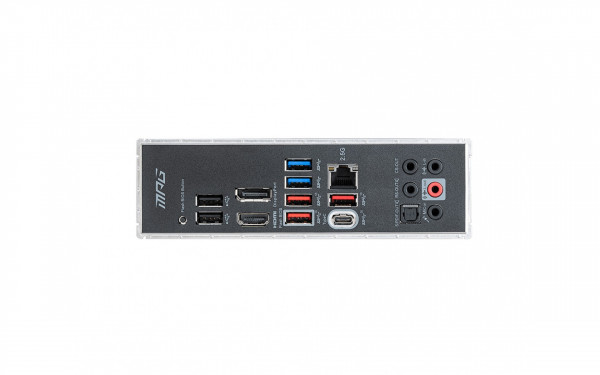

Cổng kết nối ( I/O Phía sau)

1. DisplayPort
2. USB 3.2 Gen 1 5Gbps Type-A
3. 2.5G LAN
4. Audio Connectors
5. Flash BIOS Button
6. USB 2.0
7. HDMI
8. USB 3.2 Gen 2 10Gbps Type-A
9. USB 3.2 Gen 2x2 20Gbps Type-C
10. Optical S/PDIF Out

Kích cỡ
