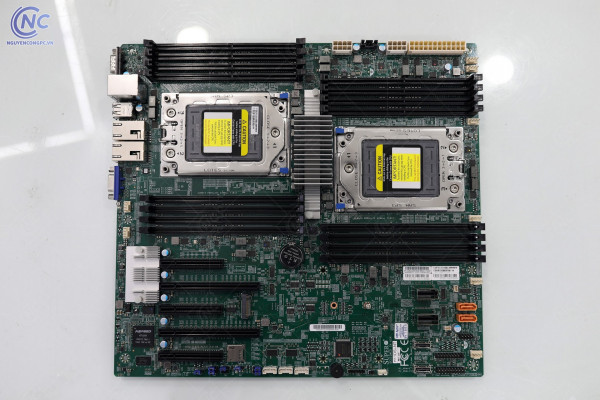

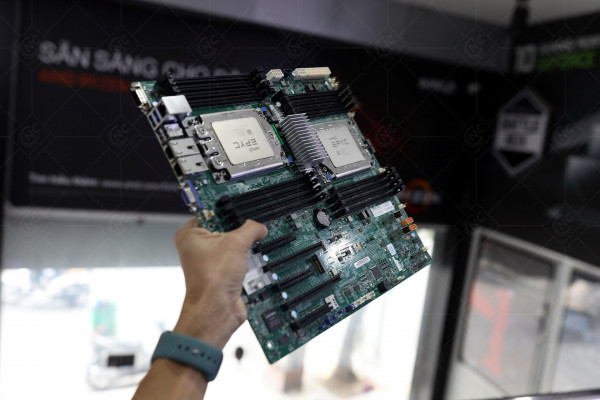

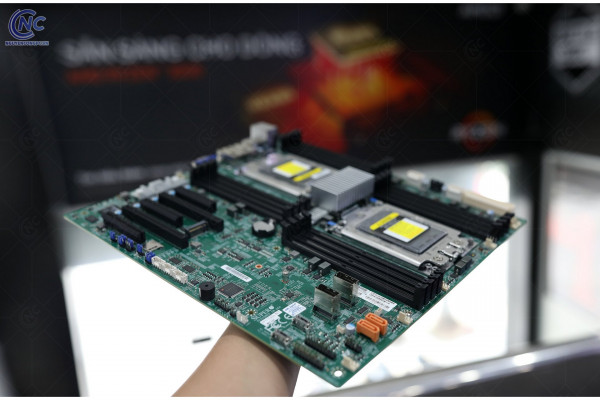

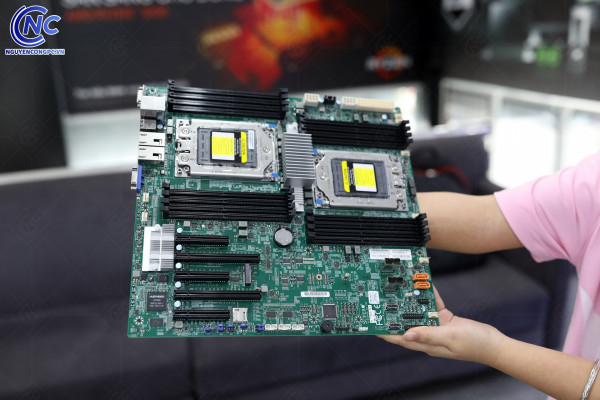

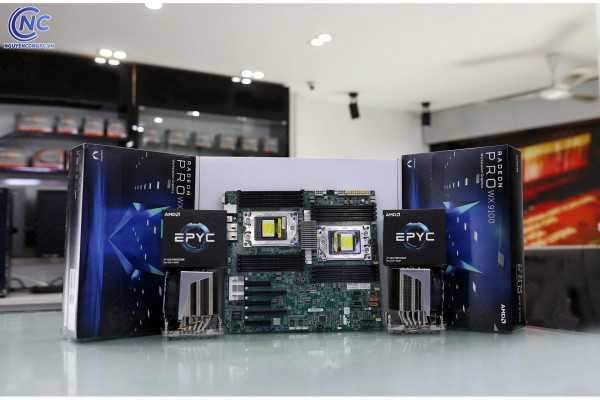

Mainboard Supermicro H11DSi-NT

CPU:
Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required)

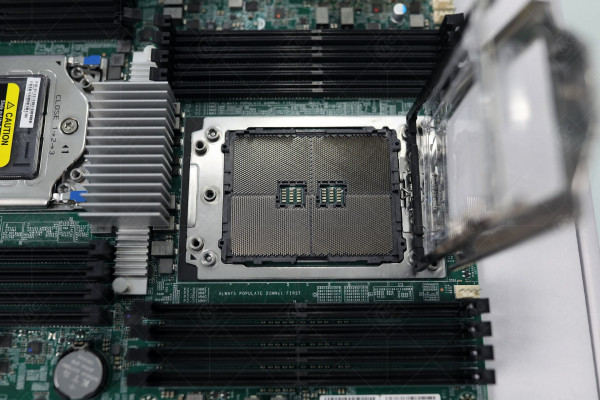

Socket SP3
Up to 240W TDP

Cores:
Up to 32 Cores
Up to 64 Cores (Board revision 2.x required)

Chipset: System on Chip

Memory Capacity

16 DIMM sockets
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
8-channel memory bus

Memory Type

DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)

Memory Voltage
1.2V

Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

SATA
SATA3 (6 Gbps)

IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers
Intel® X550 10G Base-T Ethernet Controller
1 Realtek RTL8211E PHY (dedicated IPMI)

VGA
ASPEED AST2500 BMC

SATA
10 SATA3 (6 Gbps) ports

NVMe
2 Internal NVMe Ports (PCI-E 3.0 x4)

LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (2 rear + 2 via header)

VGA
1 VGA port

Others
1 COM port (rear)
2 SATA DOM power connectors
1 TPM 2.0 header

PCI-Express
3 PCI-E 3.0 x8
2 PCI-E 3.0 x16

M.2
Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
Form factor: 2280, 22110
Key: M-key

2U
SC213AC-R1K23LPB
SC216BE1C4-R1K23LPB
SC825TQC-R802LPB
SC826BE1C4-R1K23LPB
SC829HE1C4-R1K62LPB

3U
SC836BE1C-R1K23B

4U
SC745BAC-R1K28B2
SC846BE1C-R1K23B

BIOS Type
AMI 128Mb SPI Flash EEPROM

BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1

Software
Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN

Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery

CPU
Monitors CPU Core Voltages, +1.1V, +1.5V, +1.8V, +12V, +5V, +5V standby
CPU switching voltage regulator

FAN
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic

LED
CPU / System Overheat LED

Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
UID
