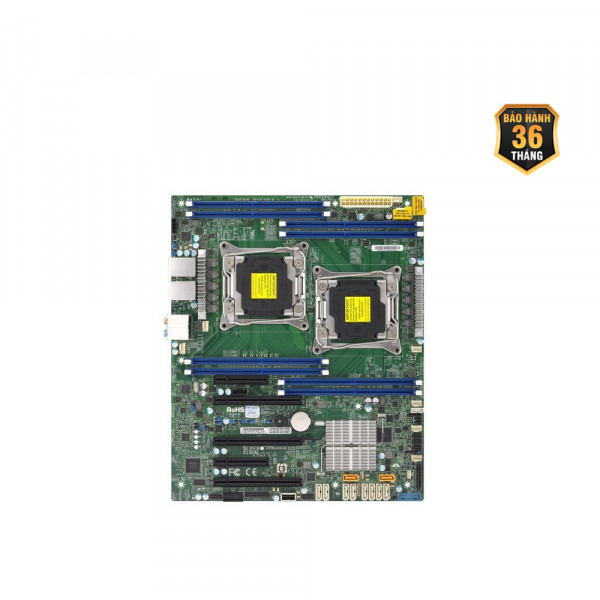

Giới thiệu Mainboard Supermicro X10DAL-i -0
Những hình ảnh thực tế bộ máy có Cấu hình chuyên render đồ họa Dual xeon E5-2678 V3 sử dụng Mainboard Supermicro X10DAL-i do NGUYENCONGPC tư vấn và lắp đặt cho khách hàng:
Mainboard Supermicro X10DAL-i với những tính năng chính như: Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s, Intel® C612 chipset, Up to 1TB ECC 3DS LRDIMM, up to DDR4- 2400MHz; 8x DIMM slots, 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x4 (in x8), 1x PCI-E 2.0 x4 (in x8) slot, Dual GbE LAN ports via Intel® i210, 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10, 6 USB 3.0 (4 rear, 2 via header), 3 USB 2.0 (2 via header, 1 Type A), 7.1 HD Audio with optical S/PDIF, Thunderbolt Add-On Card support
Bình luận và đánh giá
Sản phẩm |
|
Tên Hãng |
Supermicro |
Model |
X10DAL-i |
CPU hỗ trợ |
CPU: Cores / Cache: Up to 22 cores † / Up to 55MB† cache Note: † BIOS version 2.0 or above is required Note: ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
RAM hỗ trợ |
Memory Capacity: 256GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes: RDIMM: 4GB, 8GB, 16GB, 32GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors |
On-Board Devices |
Chipset: Intel® C612 SATA: Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 SCU SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers: Dual LAN with Intel® i210 Gigabit Ethernet Controller Audio: 7.1 HD Audio |
Đầu vào / Đầu ra |
SATA: 10 SATA3 (6Gbps) port LAN: 2 RJ45 Gigabit Ethernet LAN ports USB: 3 USB 2.0 ports (2 headers, 1 Type A) Serial Port / Header: 1 COM Port (1 header) TPM: 1 TPM Header |
Khe mở rộng |
2 PCI-E 3.0 x16 (in x16 slot)
1 PCI-E 3.0 x8 (in x16 slot) 1 PCI-E 3.0 x4 (in x8 slot) 1 PCI-E 2.0 x4 (in x8 slot) |
System BIOS |
BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features: |
Management |
Software: SuperDoctor® 5, Watchdog Power Configurations: |
Theo dõi sức khỏe PC |
Voltage: +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, VBAT FAN: 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control Temperature: Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED: CPU / System Overheat LED Other Features: Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC |
Môi trường hoạt động |
Operating Temperature Range: 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range: 8% - 90% (non-condensing) Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
Thông số kỹ thuật
Sản phẩm |
|
Tên Hãng |
Supermicro |
Model |
X10DAL-i |
CPU hỗ trợ |
CPU: Cores / Cache: Up to 22 cores † / Up to 55MB† cache Note: † BIOS version 2.0 or above is required Note: ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
RAM hỗ trợ |
Memory Capacity: 256GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes: RDIMM: 4GB, 8GB, 16GB, 32GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors |
On-Board Devices |
Chipset: Intel® C612 SATA: Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 SCU SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers: Dual LAN with Intel® i210 Gigabit Ethernet Controller Audio: 7.1 HD Audio |
Đầu vào / Đầu ra |
SATA: 10 SATA3 (6Gbps) port LAN: 2 RJ45 Gigabit Ethernet LAN ports USB: 3 USB 2.0 ports (2 headers, 1 Type A) Serial Port / Header: 1 COM Port (1 header) TPM: 1 TPM Header |
Khe mở rộng |
2 PCI-E 3.0 x16 (in x16 slot)
1 PCI-E 3.0 x8 (in x16 slot) 1 PCI-E 3.0 x4 (in x8 slot) 1 PCI-E 2.0 x4 (in x8 slot) |
System BIOS |
BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features: |
Management |
Software: SuperDoctor® 5, Watchdog Power Configurations: |
Theo dõi sức khỏe PC |
Voltage: +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, VBAT FAN: 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control Temperature: Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED: CPU / System Overheat LED Other Features: Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC |
Môi trường hoạt động |
Operating Temperature Range: 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range: 8% - 90% (non-condensing) Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
