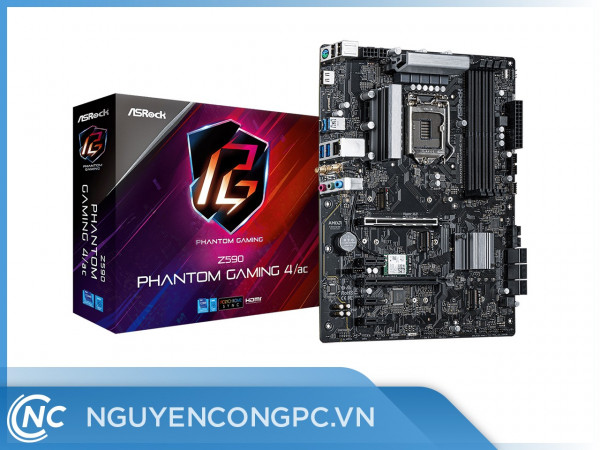

Mainboard ASRock Z590 Phantom Gaming 4/ac

Liên hệ

Liên hệ 36 Tháng Gọi điện thoại đặt mua: 0983333388
  • Hỗ trợ tư vấn lắp đặt trong nội thành Hà Nội.
  • Hỗ trợ mua hàng trả góp.
  • Hỗ trợ cài đặt các phần mềm đồ họa.
  • Được tham gia các chương trình giảm giá sốc.

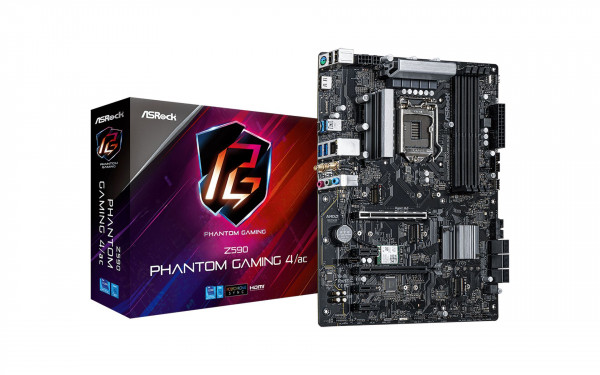

Giới thiệu sản phẩm Mainboard ASRock Z590 Phantom Gaming 4/ac

Mainboard ASRock Z590 Phantom Gaming 4/ac được thiết kế bởi game thủ và dành cho game thủ! Bên dưới vẻ ngoài dản dị của nó là các tính năng chơi game phong phú. Tất cả chỉ nhằm mang lại trải nghiệm chơi game tuyệt vời cho game thủ!

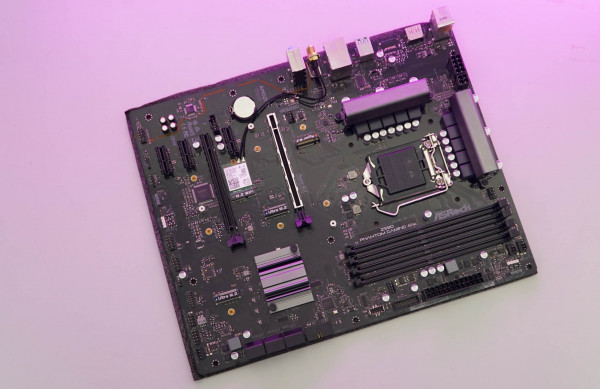

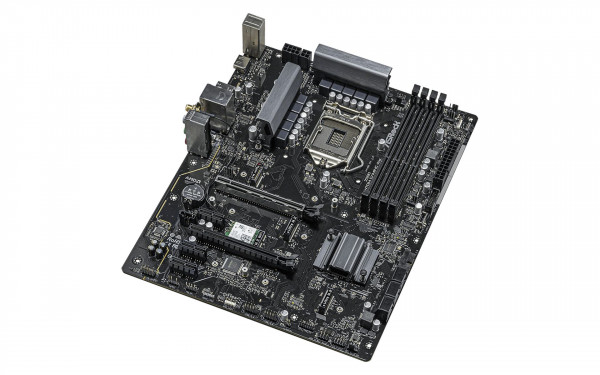

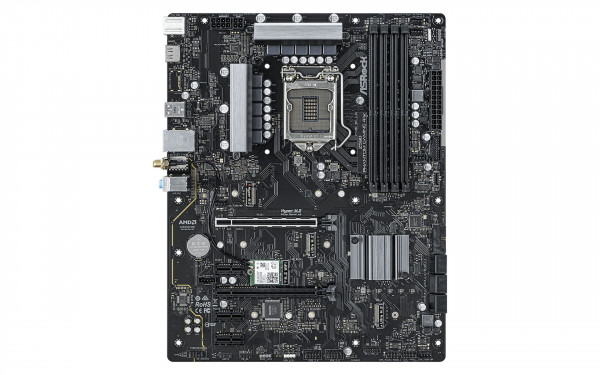

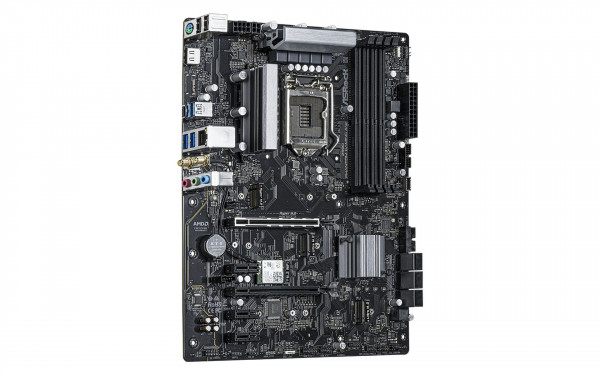

Mainboard ASRock Z590 Phantom Gaming 4/ac

Hỗ trợ Bộ xử lý Intel® Core™ thế hệ thứ 10 và 11
Thiết kế 8 pha nguồn
Hỗ trợ DDR4 4800MHz (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
Tùy chọn đầu ra đồ họa: HDMI
Âm thanh HD 7.1 CH (Codec âm thanh Realtek ALC897), Âm thanh Nahimic
6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 x USB 3.2 Gen2x2 Loại trước-C (20Gb / giây), Sau USB 3.2 Gen2 Loại A + C (10Gb / s), 6 x USB 3.2 Gen1 (2 x Sau, 4 x Trước), 6 x USB 2.0 (2 x Phía sau, 4 x Phía trước)
Intel® Gigabit LAN
WiFi Intel® 802.11ac + BT 5.1
ASRock Polychrome SYNC





WiFi băng tần kép 802.11ac

bo mạch chủ ASRock Z590 Phantom Gaming 4/ac đi kèm với mô-đun WiFi 802.11ac
Không ai có thời gian cho tín hiệu WiFi yếu và internet chậm chạp! Đó là lý do tại sao bo mạch chủ ASRock Z590 Phantom Gaming 4/ac đi kèm với mô-đun WiFi 802.11ac (WiFi 2.4G / 5G) hỗ trợ mạng không dây và Bluetooth v5.1.

Thông số kỹ thuật

Mainboard ASRock Z590 Phantom Gaming 4/ac

Loại sản phẩm Bo mạch chủ
Tên Hãng Asrock
Model Z590 Phantom Gaming 4/ac
Tính năng nổi bật

ASRock USB 3.2 Gen2
ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)


ASRock Super Alloy
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB


Intel® 802.11ac WiFi
ASRock Steel Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Hỗ trợ CPU (Bộ vi xử lý) Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)

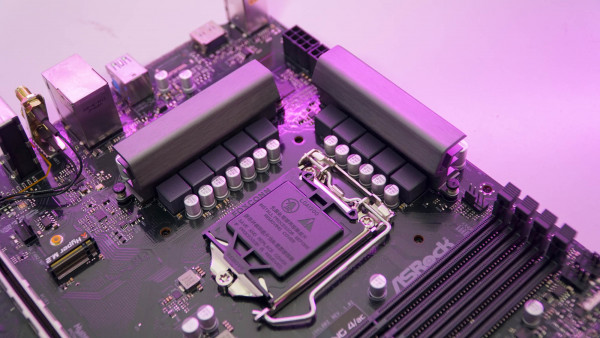

Digi Power design
8 Power Phase design
Supports Intel® Turbo Boost Max 3.0 Technology
Chipset Intel Z590

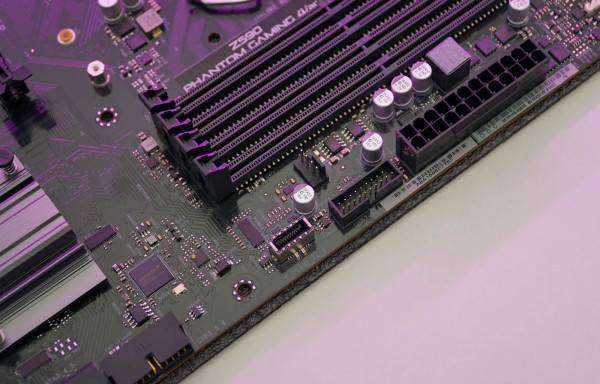

RAM hỗ trợ

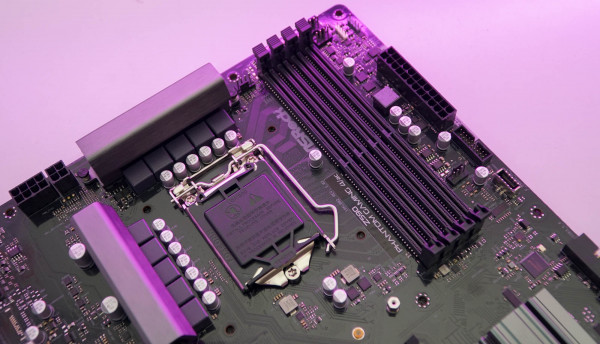

Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 128GB**
Supports Intel® Extreme Memory Profile (XMP) 2.0

*11th Gen Intel® Core™ (i9/i7/i5) support DDR4 up to 3200; Core™ (i3), Pentium® and Celeron® support DDR4 up to 2666.
10th Gen Intel® Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, DRAM, VCCIO, VCCSA, VCCST, VCCIN AUX, VPPM Voltage Multi-adjustment
Hình Ảnh
11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 2.0 Port
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port**

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**11th Gen Intel® Core™ Processors support HDMI 2.0. 10th Gen Intel® Core™ Processors support HDMI 1.4.
Âm Thanh 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection
Nahimic Audio
LAN Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Wireless Intel® 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
Supports Bluetooth 5.1 + High speed class II

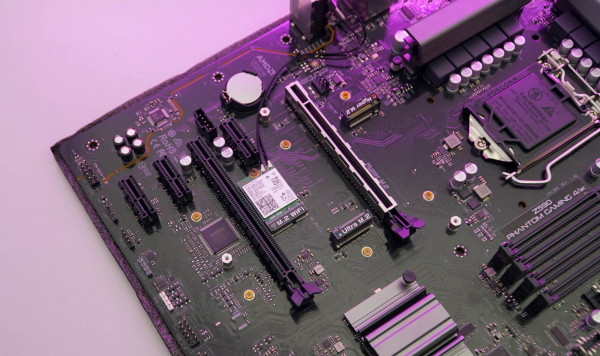

Khe cắm mở rộng

11th Gen Intel® Core™ Processors
2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*


10th Gen Intel® Core™ Processors
2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

3 x PCI Express 3.0 x1 Slots
Supports AMD Quad CrossFireX™ and CrossFireX™
1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module and Intel® CNVi (Integrated WiFi/BT)

*Supports NVMe SSD as boot disks
Lưu trữ

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 18), NCQ, AHCI and Hot Plug*


1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors)**


1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**


1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**



*If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.
If M2_3 is occupied by a SATA-type M.2 device, SATA3_2 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Cổng kết nối bên trong
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

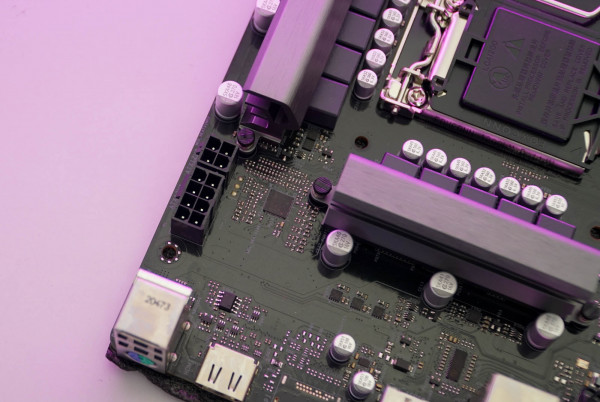

1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

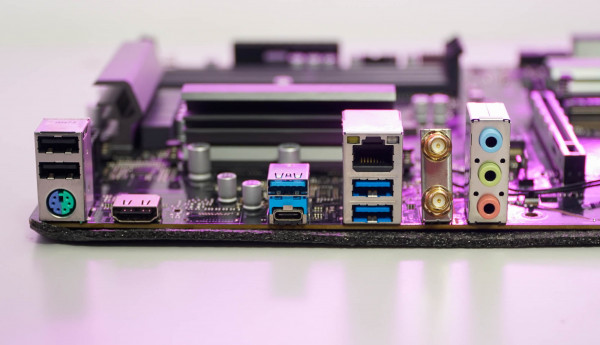

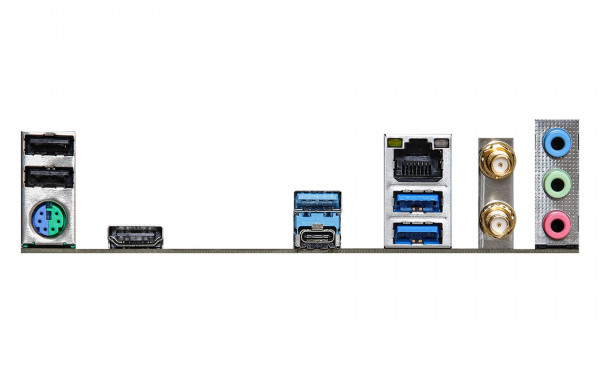

Cổng kết nối phía sau 2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Phần mềm và UEFI

Software
ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Polychrome SYNC
ASRock XFast LAN


UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Internet Flash
ASRock Easy RAID Installer



*These utilities can be downloaded from ASRock Live Update & APP Shop.
Đĩa cài đặt
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

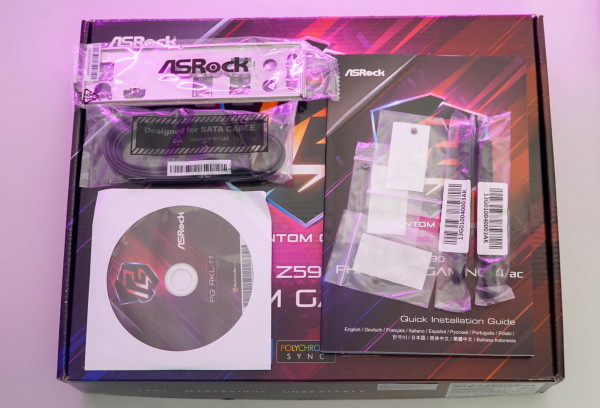

Phụ kiện Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
3 x Screws for M.2 Sockets
Hardware Monitor Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V
Kích cỡ ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Solid Capacitor design
OS
Microsoft® Windows® 10 64-bit
Chứng nhận FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
