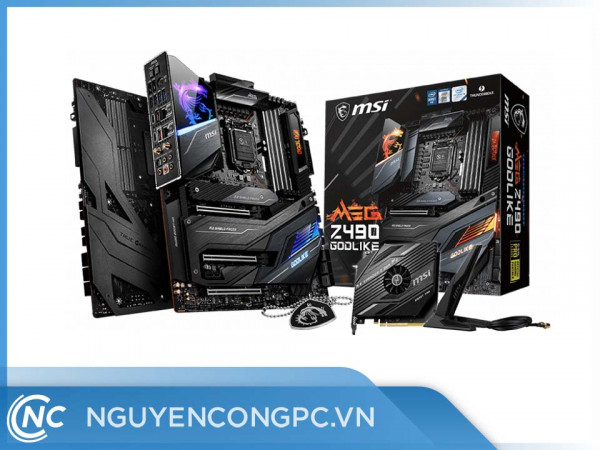

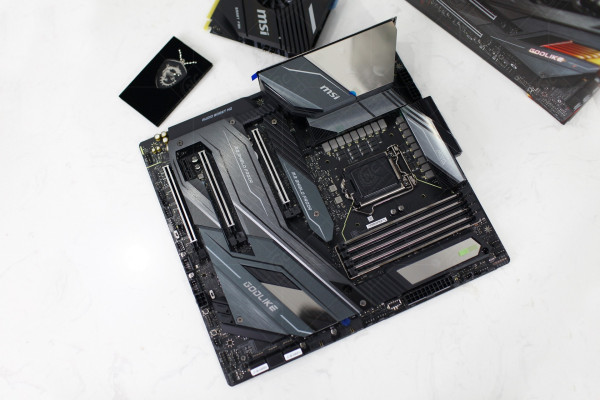

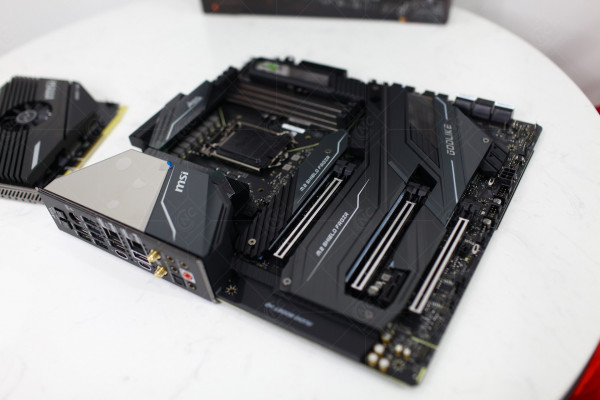

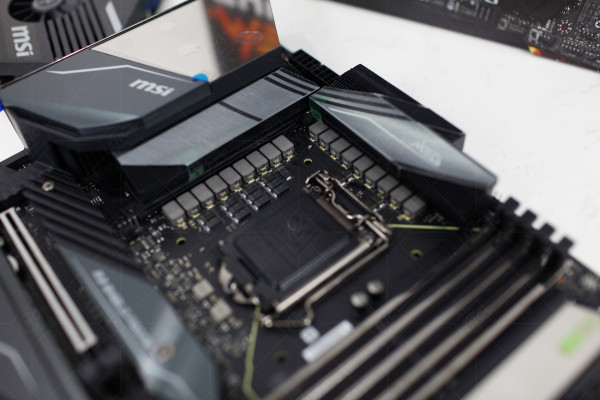

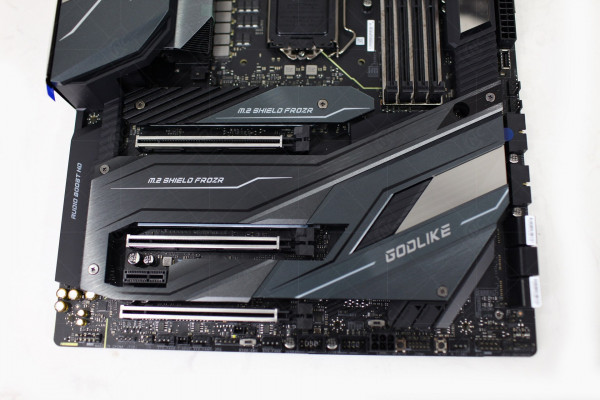

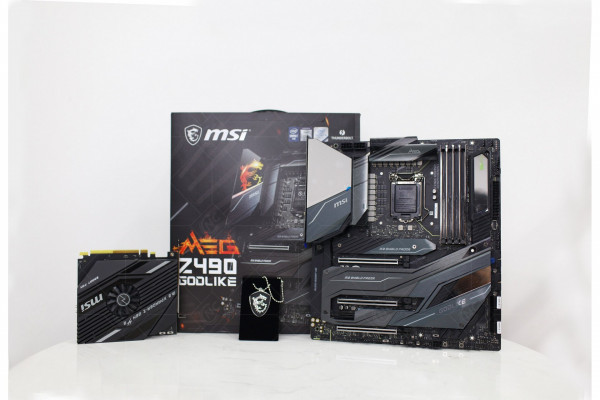

Mainboard MSI MEG Z490 GODLIKE

Intel^® JHL7540 Thunderbolt™ 3 Controller

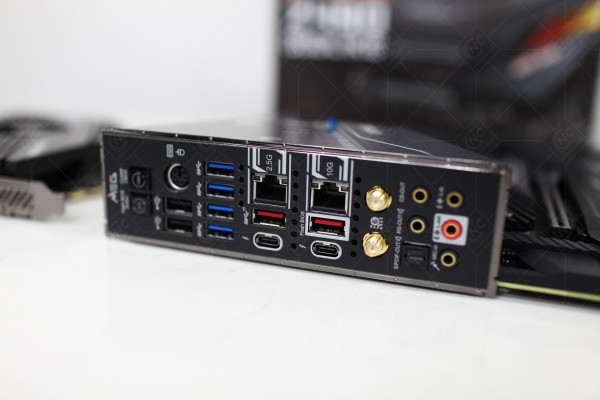

• 2x Thunderbolt™ 3 (Type-C) ports on the back panel
• Supports Thunderbolt™ 3 with a maximum resolution of 5120x2880 @60 Hz¹
• Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
• Maximum shared memory is 1GB

1. Thunderbolt 3 supports two displays in 4K resolution or one display in 5K resolution.

• Supports 2-Way NVIDIA^® SLI™ Technology
• Supports 3-Way AMD^® CrossFire™ Technology

Intel^® Z490 Chipset

• 6x SATA 6Gb/s ports^1,2

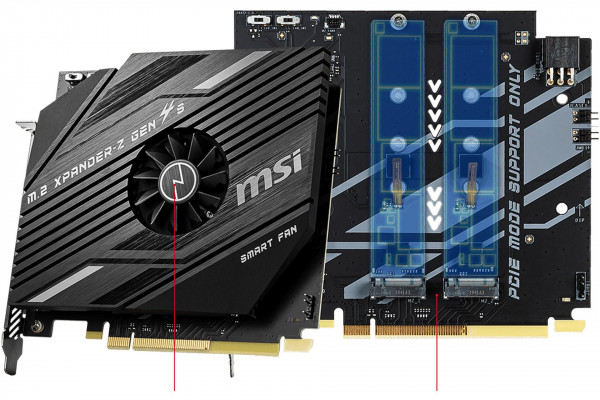

• 3x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices¹
  • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices²
  • M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  • Intel^® Optane™ Memory Ready³
  • Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_2 slot.
3. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Intel^® Z490 Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)

• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia^® ASM1074 Chipset

• 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors)

Intel^® JHL7540 Thunderbolt™ 3 Controller

• 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel

Realtek^® ALC1220 Codec + ESS E9018 combo DAC

• 7.1-Channel High Definition Audio

• Supports Optical S/PDIF output

Intel^® JHL7540 Thunderbolt™ 3 Controller

• 2x Thunderbolt™ 3 (USB Type-C) ports on the back panel

• Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices

• Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices

• Supports up to 5V/3A , 15W power charging

• Supports Daisy-chain up to six ThunderboltTM 3 devices

• 1x Aquantia^® AQC107 10G LAN controller

• 1x Realtek^® RTL8125B 2.5G LAN controller

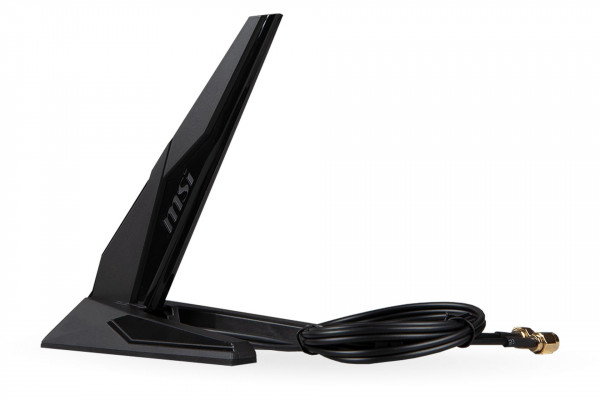

Intel^® AX201

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps

• Supports 802.11ac

• WiFi 6 pre-certified

• Supports Bluetooth^® 5.1, FIPS, FISMA

• 1x 24-pin ATX main power connector

• 2x 8-pin ATX 12V power connectors

• 1x 6-pin ATX PCIE power connector

• 6x SATA 6Gb/s connectors

• 3x M.2 slots (M-Key)

• 1x USB 3.2 Gen 2 10Gbps Type-C port

• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

• 1x 4-pin CPU fan connector

• 1x 4-pin water-pump fan connector

• 8x 4-pin system fan connectors

• 1x 3-pin Water Flow connector

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Chassis Intrusion connector

• 2x 2-pin Thermal Sensors connectors

• 1x TPM module connector

• 1x 4-pin RGB LED connector

• 2x 3-pin RAINBOW LED connectors

• 1x 3-pin CORSAIR LED connector

• 12 in. x 10.9 in. (30.5 cm x 27.7 cm)

• E-ATX Form Factor
